使用 Amazon Kinesis Data Streams 通过 Amazon OpenSearch Ingestion 将实时数据传输到 Amazon OpenSearch Service 域

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "allowReadFromStream",
            "Effect": "Allow",
            "Action": [
                "kinesis:DescribeStream",
                "kinesis:DescribeStreamConsumer",
                "kinesis:DescribeStreamSummary",
                "kinesis:GetRecords",
                "kinesis:GetShardIterator",
                "kinesis:ListShards",
                "kinesis:ListStreams",
                "kinesis:ListStreamConsumers",
                "kinesis:RegisterStreamConsumer",
                "kinesis:SubscribeToShard"
            ],
            "Resource": [
                "arn:aws:kinesis:{{region}}:{{account-id}}:stream/{{stream-name}}"
            ]
        },
        {
            "Sid": "allowAccessToOS",
            "Effect": "Allow",
            "Action": [
                "es:DescribeDomain",
                "es:ESHttp*"
            ],
            "Resource": [
                "arn:aws:es:{region}:{account-id}:domain/{domain-name}",
                "arn:aws:es:{region}:{account-id}:domain/{domain-name}/*"
            ]
        }
    ]
}

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "",
            "Effect": "Allow",
            "Principal": {
                "Service": [
                    "osis-pipelines.amazonaws.com"
                ]
            },
            "Action": "sts:AssumeRole",
            "Condition": {
                "StringEquals": {
                    "aws:SourceAccount": "{account-id}"
                },
                "ArnLike": {
                    "aws:SourceArn": "arn:aws:osis:{region}:{account-id}:pipeline/*"
                }
            }
        }
    ]
}

 source:
    kinesis-data-streams:
      acknowledgments: true
      codec:
        # JSON codec supports parsing nested CloudWatch events into
        # individual log entries that will be written as documents to
        # OpenSearch
        json:
          key_name: "logEvents"
          # These keys contain the metadata sent by CloudWatch Subscription Filters
          # in addition to the individual log events:
          # https://docs.aws.amazon.com/AmazonCloudWatch/latest/logs/SubscriptionFilters.html#DestinationKinesisExample
          include_keys: ['owner', 'logGroup', 'logStream' ]
      streams:
        # Update to use your Kinesis Stream name used in your Subscription Filters:
        - stream_name: "KINESIS_STREAM_NAME"
          # Can customize initial position if you don't want OSI to consume the entire stream:
          initial_position: "EARLIEST"
          # Compression will always be gzip for CloudWatch, but will vary for other sources:
          compression: "gzip"
      aws:
        # Provide the Role ARN with access to KDS. This role should have a trust relationship with osis-pipelines.amazonaws.com
        # This must be the same role used below in the Sink configuration.
        sts_role_arn: "PIPELINE_ROLE_ARN"
        # Provide the region of the Data Stream.
        region: "REGION"

  sink:
    - opensearch:
        # Provide an AWS OpenSearch Service domain endpoint
        hosts: [ "OPENSEARCH_ENDPOINT" ]
        # Route log data to different target indexes depending on the log context:
        index: "ss4o_${data_stream/type}-${data_stream/dataset}-${data_stream/namespace}"
        aws:
          # Provide a Role ARN with access to the domain. This role should have a trust relationship with osis-pipelines.amazonaws.com
          # This role must be the same as the role used above for Kinesis.
          sts_role_arn: "PIPELINE_ROLE_ARN"
          # Provide the region of the domain.
          region: "REGION"
          # Enable the 'serverless' flag if the sink is an Amazon OpenSearch Serverless collection
          serverless: false

 #  Processor logic is used to change how log data is parsed for OpenSearch.
  processor:
    - rename_keys:
        entries:
        # Include CloudWatch timestamp as the observation timestamp - the time the log
        # was generated and sent to CloudWatch:
        - from_key: "timestamp"
          to_key: "observed_timestamp"
    - date:
        # Include the current timestamp that OSI processed the log event:
        from_time_received: true
        destination: "processed_timestamp"

  - add_entries:
        entries:
        # Support SS4O common log fields (https://opensearch.org/docs/latest/observing-your-data/ss4o/)
        - key: "cloud/provider"
          value: "aws"
        - key: "cloud/account/id"
          format: "${owner}"
        - key: "cloud/region"
          value: "us-west-2"
        - key: "aws/cloudwatch/log_group"
          format: "${logGroup}"
        - key: "aws/cloudwatch/log_stream"
          format: "${logStream}"
        # Include default values for the data_stream:
        - key: "data_stream/namespace"
          value: "default"
        - key: "data_stream/type"
          value: "logs"
        - key: "data_stream/dataset"
          value: "general"
        # Include metadata about the source Kinesis message that contained this log event:
        - key: "aws/kinesis/stream_name"
          value_expression: "getMetadata(\"stream_name\")"
        - key: "aws/kinesis/partition_key"
          value_expression: "getMetadata(\"partition_key\")"
        - key: "aws/kinesis/sequence_number"
          value_expression: "getMetadata(\"sequence_number\")"
        - key: "aws/kinesis/sub_sequence_number"
          value_expression: "getMetadata(\"sub_sequence_number\")"

 - add_entries:
        entries:
        # Update the data_stream fields based on the log event context - in this case
        # classifying the log events by their source (CloudTrail or Lambda).
        # Additional logic could be added to classify the logs by business or application context:
        - key: "data_stream/dataset"
          value: "cloudtrail"
          add_when: "contains(/logGroup, \"cloudtrail\") or contains(/logGroup, \"CloudTrail\")"
          overwrite_if_key_exists: true
        - key: "data_stream/dataset"
          value: "lambda"
          add_when: "contains(/logGroup, \"/aws/lambda/\")"
          overwrite_if_key_exists: true
        - key: "data_stream/dataset"
          value: "apache"
          add_when: "contains(/logGroup, \"/apache/\")"
          overwrite_if_key_exists: true
    # Remove the default CloudWatch fields, as we re-mapped them to SS4O fields:
    - delete_entries:
        with_keys:
          - "logGroup"
          - "logStream"
          - "owner"

 # Use Grok parser to parse non-JSON apache logs
    - grok:
        grok_when: "/data_stream/dataset == \"apache\""
        match:
          message: ['%{COMMONAPACHELOG_DATATYPED}']
        target_key: "http"
    # Attempt to parse the log data as JSON to support field-level searches in the OpenSearch index:
    - parse_json:
        # Parse root message object into aws.cloudtrail to match SS4O standard for SS4O logs
        source: "message"
        destination: "aws/cloudtrail"
        parse_when: "/data_stream/dataset == \"cloudtrail\""
        tags_on_failure: ["json_parse_fail"]
    - parse_json:
        # Parse root message object as JSON when possible for Lambda function logs - can also set up Grok support
        # for Lambda function logs to capture non-JSON logging function data as searchable fields
        source: "message"
        destination: "aws/lambda"
        parse_when: "/data_stream/dataset == \"lambda\""
        tags_on_failure: ["json_parse_fail"]
    - parse_json:
        # Parse root message object as JSON when possible for general logs
        source: "message"
        destination: "body"
        parse_when: "/data_stream/dataset == \"general\""
        tags_on_failure: ["json_parse_fail"]

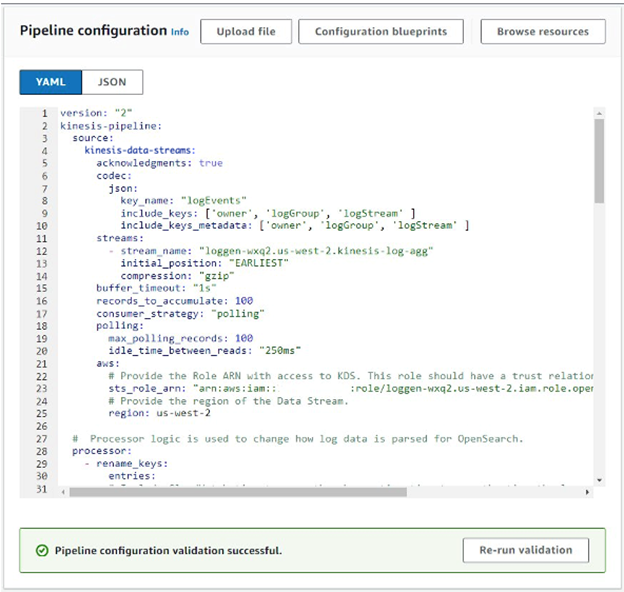

version: "2"
kinesis-pipeline:
  source:
    kinesis-data-streams:
      acknowledgments: true
      codec:
        # JSON codec supports parsing nested CloudWatch events into
        # individual log entries that will be written as documents to
        # OpenSearch
        json:
          key_name: "logEvents"
          # These keys contain the metadata sent by CloudWatch Subscription Filters
          # in addition to the individual log events:
          # https://docs.aws.amazon.com/AmazonCloudWatch/latest/logs/SubscriptionFilters.html#DestinationKinesisExample
          include_keys: ['owner', 'logGroup', 'logStream' ]
      streams:
        # Update to use your Kinesis Stream name used in your Subscription Filters:
        - stream_name: "KINESIS_STREAM_NAME"
          # Can customize initial position if you don't want OSI to consume the entire stream:
          initial_position: "EARLIEST"
          # Compression will always be gzip for CloudWatch, but will vary for other sources:
          compression: "gzip"
      aws:
        # Provide the Role ARN with access to KDS. This role should have a trust relationship with osis-pipelines.amazonaws.com
        # This must be the same role used below in the Sink configuration.
        sts_role_arn: "PIPELINE_ROLE_ARN"
        # Provide the region of the Data Stream.
        region: "REGION"

  #  Processor logic is used to change how log data is parsed for OpenSearch.
  processor:
    - rename_keys:
        entries:
        # Include CloudWatch timestamp as the observation timestamp - the time the log
        # was generated and sent to CloudWatch:
        - from_key: "timestamp"
          to_key: "observed_timestamp"
    - date:
        # Include the current timestamp that OSI processed the log event:
        from_time_received: true
        destination: "processed_timestamp"
    - add_entries:
        entries:
        # Support SS4O common log fields (https://opensearch.org/docs/latest/observing-your-data/ss4o/)
        - key: "cloud/provider"
          value: "aws"
        - key: "cloud/account/id"
          format: "${owner}"
        - key: "cloud/region"
          value: "us-west-2"
        - key: "aws/cloudwatch/log_group"
          format: "${logGroup}"
        - key: "aws/cloudwatch/log_stream"
          format: "${logStream}"
        # Include default values for the data_stream:
        - key: "data_stream/namespace"
          value: "default"
        - key: "data_stream/type"
          value: "logs"
        - key: "data_stream/dataset"
          value: "general"
        # Include metadata about the source Kinesis message that contained this log event:
        - key: "aws/kinesis/stream_name"
          value_expression: "getMetadata(\"stream_name\")"
        - key: "aws/kinesis/partition_key"
          value_expression: "getMetadata(\"partition_key\")"
        - key: "aws/kinesis/sequence_number"
          value_expression: "getMetadata(\"sequence_number\")"
        - key: "aws/kinesis/sub_sequence_number"
          value_expression: "getMetadata(\"sub_sequence_number\")"
    - add_entries:
        entries:
        # Update the data_stream fields based on the log event context - in this case
        # classifying the log events by their source (CloudTrail or Lambda).
        # Additional logic could be added to classify the logs by business or application context:
        - key: "data_stream/dataset"
          value: "cloudtrail"
          add_when: "contains(/logGroup, \"cloudtrail\") or contains(/logGroup, \"CloudTrail\")"
          overwrite_if_key_exists: true
        - key: "data_stream/dataset"
          value: "lambda"
          add_when: "contains(/logGroup, \"/aws/lambda/\")"
          overwrite_if_key_exists: true
        - key: "data_stream/dataset"
          value: "apache"
          add_when: "contains(/logGroup, \"/apache/\")"
          overwrite_if_key_exists: true
    # Remove the default CloudWatch fields, as we re-mapped them to SS4O fields:
    - delete_entries:
        with_keys:
          - "logGroup"
          - "logStream"
          - "owner"
    # Use Grok parser to parse non-JSON apache logs
    - grok:
        grok_when: "/data_stream/dataset == \"apache\""
        match:
          message: ['%{COMMONAPACHELOG_DATATYPED}']
        target_key: "http"
    # Attempt to parse the log data as JSON to support field-level searches in the OpenSearch index:
    - parse_json:
        # Parse root message object into aws.cloudtrail to match SS4O standard for SS4O logs
        source: "message"
        destination: "aws/cloudtrail"
        parse_when: "/data_stream/dataset == \"cloudtrail\""
        tags_on_failure: ["json_parse_fail"]
    - parse_json:
        # Parse root message object as JSON when possible for Lambda function logs - can also set up Grok support
        # for Lambda function logs to capture non-JSON logging function data as searchable fields
        source: "message"
        destination: "aws/lambda"
        parse_when: "/data_stream/dataset == \"lambda\""
        tags_on_failure: ["json_parse_fail"]
    - parse_json:
        # Parse root message object as JSON when possible for general logs
        source: "message"
        destination: "body"
        parse_when: "/data_stream/dataset == \"general\""
        tags_on_failure: ["json_parse_fail"]

  sink:
    - opensearch:
        # Provide an AWS OpenSearch Service domain endpoint
        hosts: [ "OPENSEARCH_ENDPOINT" ]
        # Route log data to different target indexes depending on the log context:
        index: "ss4o_${data_stream/type}-${data_stream/dataset}-${data_stream/namespace}"
        aws:
          # Provide a Role ARN with access to the domain. This role should have a trust relationship with osis-pipelines.amazonaws.com
          # This role must be the same as the role used above for Kinesis.
          sts_role_arn: "PIPELINE_ROLE_ARN"
          # Provide the region of the domain.
          region: "REGION"
          # Enable the 'serverless' flag if the sink is an Amazon OpenSearch Serverless collection
          serverless: false
