Module 2: Host Your Application On A Web Server

In this module you will create a new microservice hosted with AWS Fargate.

Overview

In this module, you will create a new microservice hosted with AWS Fargate so that your Mythical Mysfits website can integrate with an application backend.

AWS Fargate is a deployment option in Amazon Elastic Container Service (ECS) that allows you to deploy containers without having to manage any clusters or servers. For our Mythical Mysfits backend, we will use Python and create a Flask app in a Docker container behind a Network Load Balancer. These will form the microservice backend for the frontend website.

Why Did We Choose Fargate?

We chose Fargate here because it's a great choice for building long-running processes such as microservices backends for web and mobile and PaaS platforms. With Fargate, you get the control of containers and the flexibility to choose when they run without worrying about provisioning or scaling servers. It offers full control of networking, security, and service to service communication and is natively integrated with AWS services for security, networking, access control, developer tooling, monitoring, and logging.

In addition to Fargate, customers also have the option of using AWS Lambda for their compute needs. While Lambda offers the same serverless benefits as Fargate, Lambda is great for data-driven applications that need to respond in real-time to changes in data, shifts in system state, or actions by users. We'll discuss Lambda in greater detail in Module 5 as we use it to analyze customer behavior on the site.

Implementation Instructions

Follow the step-by-step instructions below to create your AWS Fargate service. Since this is a large module, we've divided it into 3 sub-modules. In module 2a, you'll set up core infrastructure in preparation for your service deployment. In module 2b, you'll deploy your service using AWS Fargate. Finally, in module 2c you'll set up automatic deployment using AWS Code Services.

Module 2A: Setup Core Infrastructure

Before we can create our service, we need to create the core infrastructure environment that the service will use, including the networking infrastructure in Amazon VPC, and the AWS Identity and Access Management Roles that will define the permissions that ECS and our containers will have on top of AWS.

We will use AWS CloudFormation to accomplish this. AWS CloudFormation is a service that can programmatically provision AWS resources that you declare within JSON or YAML files called CloudFormation Templates, enabling the common best practice of Infrastructure as Code.

  • We have provided a CloudFormation template to create all of the necessary Network and Security resources in /module-2/cfn/core.yml. This template will create the following resources:

    • An Amazon VPC - a network environment that contains four subnets (two public and two private) in the 10.0.0.0/16 private IP space, as well as all the needed Route Table configurations.
    • Two NAT Gateways (one for each public subnet) - allows the containers we will eventually deploy into our private subnets to communicate out to the Internet to download necessary packages, etc.
    • A DynamoDB Endpoint - our microservice backend will eventually integrate with Amazon DynamoDB for persistence (as part of module 3).
    • A Security Group - Allows your Docker containers to receive traffic on port 8080 from the Internet through the Network Load Balancer.
    • IAM Roles - Identity and Access Management Roles are created. These will be used throughout the workshop to give AWS services or resources you create access to other AWS services like DynamoDB, S3, and more.

    To create these resources, run the following command in the Cloud9 terminal (will take ~10 minutes for stack to be created):

    aws cloudformation create-stack --stack-name MythicalMysfitsCoreStack --capabilities CAPABILITY_NAMED_IAM --template-body file://~/environment/aws-modern-application-workshop/module-2/cfn/core.yml

    You can check on the status of your stack creation either via the AWS Console or by running the command:

    aws cloudformation describe-stacks --stack-name MythicalMysfitsCoreStack

    Run the the describe-stacks command, until you see a status of "StackStatus": "CREATE_COMPLETE"

    When you get this response, CloudFormation has finished provisioning all of the core networking and security resources described above.

    Copy the full response and save it for future reference in a text editor. Or, create a temporary folder and file to save it to within your IDE. This JSON response contains the unique identifiers for several of the created resources, which we will use later in this workshop.

Module 2B: Deploy A Service With AWS Fargate

Next, you will create a Docker container image that contains all of the code and configuration required to run the Mythical Mysfits backend as a microservice API created with Flask. We will build the Docker container image within Cloud9 and then push it to the Amazon Elastic Container Registry, where it will be available to pull when we create our service using Fargate.

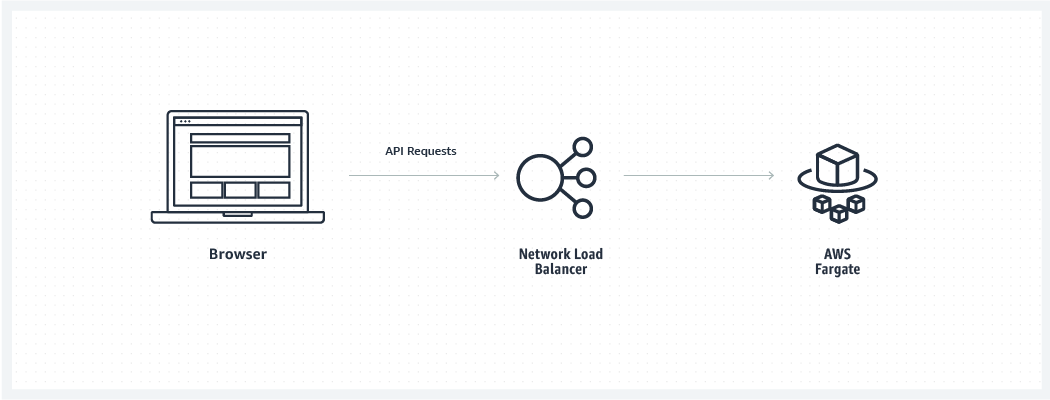

Architecture Diagram

browser to load balancer to Fargate
  • A: Build A Docker Image

    All of the code required to run our service backend is stored within the /module-2/app/ directory of the repository you've cloned into your Cloud9 IDE. If you would like to review the Python code that uses Flask to create the service API, view the /module-2/app/service/mythicalMysfitsService.py file.

    Docker comes already installed on the Cloud9 IDE that you've created, so in order to build the Docker image locally, all we need to do is run the following two commands in the Cloud9 terminal:

    First change directory to ~/environment/module-2/app

    cd ~/environment/aws-modern-application-workshop/module-2/app

    Then build the docker image, this will use the file in the current directory called Dockerfile that tells Docker all of the instructions that should take place when the build command is executed. Replace the contents in and the {braces} below with the appropriate information from the account/region you're working in.

    To retrieve the needed information about your account and region, you can run the following CLI command that uses the AWS Security Token Service to return back information about the principal issuing the CLI command:

    aws sts get-caller-identity

    Once you have your Account ID, you are ready to build the docker image:

    docker build . -t REPLACE_ME_AWS_ACCOUNT_ID.dkr.ecr.REPLACE_ME_REGION.amazonaws.com/mythicalmysfits/service:latest

    You will see docker download and install all of the necessary dependency packages that our application needs, and output the tag for the built image. Copy the image tag for later reference. Below the example tag shown is: 111111111111.dkr.ecr.us-east-1.amazonaws.com/mythicalmysfits/service:latest

    Successfully built 8bxxxxxxxxab
    Successfully tagged 111111111111.dkr.ecr.us-east-1.amazonaws.com/mythicalmysfits/service:latest
    B: Test The Service Locally

    Let's test our image locally within Cloud9 to make sure everything is operating as expected. Copy the image tag that resulted from the previous command and run the following command to deploy the container “locally” (which is actually within your Cloud9 IDE inside AWS!):

    docker run -p 8080:8080 REPLACE_ME_WITH_DOCKER_IMAGE_TAG

    As a result you will see Docker reporting that your container is up and running locally:

     * Running on http://0.0.0.0:8080/ (Press CTRL+C to quit)

    To test our service with a local request, we're going to open up the built-in web browser within the Cloud9 IDE that can be used to preview applications that are running on the IDE instance.

    To open the preview web browser, select Preview > Preview Running Application in the Cloud9 menu bar:

    preview-menu



    This will open another panel in the IDE where the web browser will be available. Append /mysfits to the end of the URI in the address bar of the preview browser and hit ENTER:

    address-bar

    If successful you will see a response from the service that returns the JSON document stored at `/aws-modern-application-workshop/module-2/app/service/mysfits-response.json`

    When done testing the service you can stop it by pressing CTRL-c on PC or Mac.

    C: Push the Docker Image to Amazon ECR

    With a successful test of our service locally, we're ready to create a container image repository in Amazon Elastic Container Registry (Amazon ECR) and push our image into it. In order to create the registry, run the following command, this creates a new repository in the default AWS ECR registry created for your account.

    aws ecr create-repository --repository-name mythicalmysfits/service

    The response to this command will contain additional metadata about the created repository. In order to push container images into our new repository, we will need to obtain authentication credentials for our Docker client to the repository.

    Run the following command, which will return a login command to retrieve credentials for our Docker client and then automatically execute it (include the full command including the $ below). 'Login Succeeded' will be reported if the command is successful.

    $(aws ecr get-login --no-include-email)

    Next, push the image you created to the ECR repository using the copied tag from above. Using this command, Docker will push your image and all the images it depends on to Amazon ECR:

    docker push REPLACE_ME_WITH_DOCKER_IMAGE_TAG

    Run the following command to see your newly pushed Docker image stored inside the ECR repository:

    aws ecr describe-images --repository-name mythicalmysfits/service
  • A: Create An AWS Fargate Cluster

    Now, we have an image available in ECR that we can deploy to a service hosted on Amazon ECS using AWS Fargate. The same service you tested locally via the terminal in Cloud9 as part of the last module will now be deployed in the cloud and publicly available behind a Network Load Balancer.

    First, we will create a cluster in the Amazon Elastic Container Service (ECS). This represents the cluster of “servers” that your service containers will be deployed to. Servers is in "quotations" because you will be using AWS Fargate. Fargate allows you to specify that your containers be deployed to a cluster without having to actually provision or manage any servers yourself.

    To create a new cluster in ECS, run the following command:

    aws ecs create-cluster --cluster-name MythicalMysfits-Cluster
    B: Create An AWS CloudWatch Logs Group

    Next, we will create a new log group in AWS CloudWatch Logs. AWS CloudWatch Logs is a service for log collection and analysis. The logs that your container generates will automatically be pushed to AWS CloudWatch logs as part of this specific group. This is especially important when using AWS Fargate since you will not have access to the server infrastructure where your containers are running.

    To create the new log group in CloudWatch logs, run the following command:

    aws logs create-log-group --log-group-name mythicalmysfits-logs
    C: Register An ECS Task Definition

    Now that we have a cluster created and a log group defined for where our container logs will be pushed to, we're ready to register an ECS task definition. A task in ECS is a set of container images that should be scheduled together. A task definition declares that set of containers and the resources and configuration those containers require. You will use the AWS CLI to create a new task definition for how your new container image should be scheduled to the ECS cluster we just created.

    A JSON file has been provided that will serve as the input to the CLI command.

    Open ~/environment/aws-modern-application-workshop/module-2/aws-cli/task-definition.json in the IDE.

    Replace the indicated values with the appropriate ones from your created resources.

    These values with be pulled from the CloudFormation response you copied earlier as well as the docker image tag that you pushed earlier to ECR, eg: 111111111111.dkr.ecr.us-east-1.amazonaws.com/mythicalmysfits/service:latest

    If you need to retrieve the values from the CloudFormation respose, run this command:

    aws cloudformation describe-stacks --stack-name MythicalMysfitsCoreStack

    Once you have replaced the values in task-defintion.json and saved it. Execute the following command to register a new task definition in ECS:

    aws ecs register-task-definition --cli-input-json file://~/environment/aws-modern-application-workshop/module-2/aws-cli/task-definition.json
  • A: Create A Network Load Balancer

    With a new task definition registered, we're ready to provision the infrastructure needed in our service stack. Rather than directly expose our service to the Internet, we will provision a Network Load Balancer (NLB) to sit in front of our service tier. This would enable our frontend website code to communicate with a single DNS name while our backend service would be free to elastically scale in-and-out based on demand or if failures occur and new containers need to be provisioned.

    To provision a new NLB, execute the following CLI command in the Cloud9 terminal:

    aws elbv2 create-load-balancer --name mysfits-nlb --scheme internet-facing --type network --subnets REPLACE_ME_PUBLIC_SUBNET_ONE REPLACE_ME_PUBLIC_SUBNET_TWO

    Copy the values at "DNSName":, "VpcId":, & "LoadBalancerArn": or save the full response provided by this command, which contains the DNS name of the provisioned NLB as well as its ARN. You will use this DNS name to test the service once it has been deployed. And the ARN will be used in a future step.

    B: Create A Load Balancer Target Group

    Next, use the CLI to create an NLB **target group**. A target group allows AWS resources to register themselves as targets for requests that the load balancer receives to forward. Our service containers will automatically register to this target so that they can receive traffic from the NLB when they are provisioned. This command includes one value that will need to be replaced, your `vpc-id` which can be found as a value within the earlier saved `MythicalMysfitsCoreStack` output returned by CloudFormation.

    aws elbv2 create-target-group --name MythicalMysfits-TargetGroup --port 8080 --protocol TCP --target-type ip --vpc-id REPLACE_ME --health-check-interval-seconds 10 --health-check-path / --health-check-protocol HTTP --healthy-threshold-count 3 --unhealthy-threshold-count 3


    Copy the value at ```"TargetGroupArn":``` or save the **full response** from the above command as well, which contains the Target Group ARN to be used in the next step.

    C: Create A Load Balancer Listener

    Next, use the CLI to create a load balancing listener for the NLB. This informs that load balancer that for requests received on a specific port, they should be forwarded to targets that have registered to the above target group. Be sure to replace the two indicated values with the appropriate ARN from the TargetGroup and the NLB that you saved from the previous steps:

    aws elbv2 create-listener --default-actions TargetGroupArn=REPLACE_ME,Type=forward --load-balancer-arn REPLACE_ME --port 80 --protocol TCP
  • A: Create A Service Linked Role For ECS

    If you have already used ECS in the past you can skip over this step and move on to the next step. If you have never used ECS before, we need to create an **service linked role** in IAM that grants the ECS service itself permissions to make ECS API requests within your account. This is required because when you create a service in ECS, the service will call APIs within your account to perform actions like pulling Docker images, creating new tasks, etc.

    Without creating this role, the ECS service would not be granted permissions to perform the actions required. To create the role, execute the following command in the terminal:

    aws iam create-service-linked-role --aws-service-name ecs.amazonaws.com

    If the above returns an error about the role existing already, you can ignore it, as it would indicate the role has automatically been created in your account in the past.

    B: Create The Service

    With the NLB created and configured, and the ECS service granted appropriate permissions, we're ready to create the actual ECS **service** where our containers will run and register themselves to the load balancer to receive traffic. We have included a JSON file for the CLI input that is located at: `~/environment/aws-modern-application-workshop/module-2/aws-cli/service-definition.json`. This file includes all of the configuration details for the service to be created, including indicating that this service should be launched with **AWS Fargate** - which means that you do not have to provision any servers within the targeted cluster. The containers that are scheduled as part of the task used in this service will run on top of a cluster that is fully managed by AWS.

    Open ~/environment/aws-modern-application-workshop/module-2/aws-cli/service-definition.json in the IDE and replace the indicated values of REPLACE_ME. Save it, then run the following command to create the service:

    aws ecs create-service --cli-input-json file://~/environment/aws-modern-application-workshop/module-2/aws-cli/service-definition.json
    C: Test The Service

    Copy the DNS name you saved when creating the NLB and send a request to it using the preview browser in Cloud9 (or by simply any web browser, since this time our service is available on the Internet). Try sending a request to the mysfits resource:

    http://mysfits-nlb-123456789-abc123456.elb.us-east-1.amazonaws.com/mysfits

    A response showing the same JSON response we received earlier when testing the Docker container locally in Cloud9 means your Flask API is up and running on AWS Fargate.

    Be sure to use http://, because https:// will not work.

  • A: Replace the API Endpoint

    Next, we need to integrate our website with your new API backend instead of using the hard coded data that we previously uploaded to S3. You'll need to update the following file to use the same NLB URL for API calls (do not include the /mysfits path): /module-2/web/index.html

    Open the file in Cloud9 and replace the highlighted area below between the quotes with the NLB URL:

    before-replace

    After pasting, the line should look similar to below:

    after-replace
    B: Upload To S3

    To upload this file to your S3 hosted website, use the bucket name again that was created during Module 1, and run the following command:

    aws s3 cp ~/environment/aws-modern-application-workshop/module-2/web/index.html s3://INSERT-YOUR-BUCKET-NAME/index.html

    Open your website using the same URL used at the end of Module 1 in order to see your new Mythical Mysfits website, which is retrieving JSON data from your Flask API running within a Docker container deployed to AWS Fargate!

Module 2C: Automate Deployments using AWS Code Services

Now that you have a service up and running, you may think of code changes that you'd like to make to your Flask service. It would be a bottleneck for your development speed if you had to go through all of the same steps above every time you wanted to deploy a new feature to your service. That's where Continuous Integration and Continuous Delivery or CI/CD come in!

In this module, you will create a fully managed CI/CD stack that will automatically deliver all of the code changes that you make to your code base to the service you created during the last module.

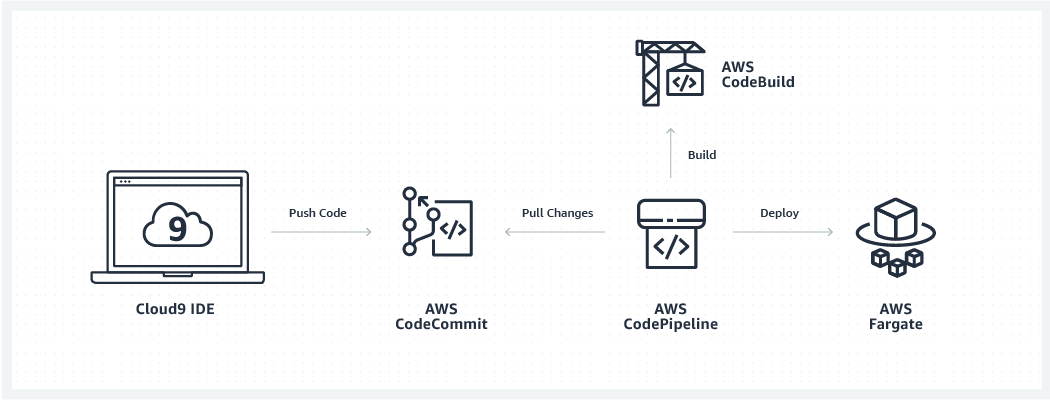

Architecture Diagram

build a dynamic website architecture - cloud9, code tools, fargate
  • A: Create A S3 Bucket For Pipelie Artifacts

    We will need to create another S3 bucket that will be used to store the temporary artifacts that are created in the middle of our CI/CD pipeline executions. Choose a new bucket name for these artifacts and create one using the following CLI command:

    aws s3 mb s3://mythical-mysfits-artifacts-bucket-name

    Next, this bucket needs a bucket policy to define permissions for the data stored within it. But unlike our website bucket that allowed access to anyone, only our CI/CD pipeline should have access to this bucket. We have provided the JSON file needed for this policy at ~/environment/aws-modern-application-workshop/module-2/aws-cli/artifacts-bucket-policy.json.

    Open this file, and inside you will need to replace several strings to include the ARNs that were created as part of the MythicalMysfitsCoreStack earlier, as well as your newly chosen bucket name for your CI/CD artifacts.

    Once you've modified and saved this file, execute the following command to grant access to this bucket to your CI/CD pipeline:

    aws s3api put-bucket-policy --bucket mythical-mysfits-artifacts-bucket-name --policy file://~/environment/aws-modern-application-workshop/module-2/aws-cli/artifacts-bucket-policy.json
    B: Create a CodeCommit Repository

    You'll need a place to push and store your code in. Create an **AWS CodeCommit Repository** using the CLI for this purpose:

    aws codecommit create-repository --repository-name MythicalMysfitsService-Repository
    C: Create a CodeBuild Project

    With a repository to store our code in, and an S3 bucket that will be used for our CI/CD artifacts, lets add to the CI/CD stack with a way for a service build to occur. This will be accomplished by creating an AWS CodeBuild Project. Any time a build execution is triggered, AWS CodeBuild will automatically provision a build server to our configuration and execute the steps required to build our Docker image and push a new version of it to the ECR repository we created (and then spin the server down when the build is completed).

    The steps for our build (which package our Python code and build/push the Docker container) are included in the ~/environment/aws-modern-application-workshop/module-2/app/buildspec.yml file. The buildspec.yml file is what you create to instruct CodeBuild what steps are required for a build execution within a CodeBuild project.

    To create the CodeBuild project, another CLI input file is required to be updated with parameters specific to your resources. It is located at ~/environment/aws-modern-application-workshop/module-2/aws-cli/code-build-project.json. Similarly replace the values within this file as you have done before from the MythicalMysfitsCoreStackOutput. Once saved, execute the following with the CLI to create the project:

    aws codebuild create-project --cli-input-json file://~/environment/aws-modern-application-workshop/module-2/aws-cli/code-build-project.json
    D: Create a CodePipeline Pipeline

    Finally, we need a way to continuously integrate our CodeCommit repository with our CodeBuild project so that builds will automatically occur whenever a code change is pushed to the repository. Then, we need a way to continuously deliver those newly built artifacts to our service in ECS. AWS CodePipeline is the service that glues these actions together in a pipeline you will create next.

    Your pipeline in CodePipeline will do just what I described above. Anytime a code change is pushed into your CodeCommit repository, CodePipeline will deliver the latest code to your AWS CodeBuild project so that a build will occur. When successfully built by CodeBuild, CodePipeline will perform a deployment to ECS using the latest container image that the CodeBuild execution pushed into ECR.

    All of these steps are defined in a JSON file provided that you will use as the input into the AWS CLI to create the pipeline. This file is located at ~/environment/aws-modern-application-workshop/module-2/aws-cli/code-pipeline.json, open it and replace the required attributes within, and save the file.

    Once saved, create a pipeline in CodePipeline with the following command:

    aws codepipeline create-pipeline --cli-input-json file://~/environment/aws-modern-application-workshop/module-2/aws-cli/code-pipeline.json
    E: Enable Automated Access to ECR Image Repository

    We have one final step before our CI/CD pipeline can execute end-to-end successfully. With a CI/CD pipeline in place, you won't be manually pushing container images into ECR anymore. CodeBuild will be pushing new images now.

    We need to give CodeBuild permission to perform actions on your image repository with an ECR repository policy*. The policy document needs to be updated with the specific ARN for the CodeBuild role created by the MythicalMysfitsCoreStack, and the policy document is located at ~/environment/aws-modern-application-workshop/module-2/aws-cli/ecr-policy.json.

    Update and save this file and then run the following command to create the policy:

    aws ecr set-repository-policy --repository-name mythicalmysfits/service --policy-text file://~/environment/aws-modern-application-workshop/module-2/aws-cli/ecr-policy.json

    When that has been created successfully, you have a working end-to-end CI/CD pipeline to deliver code changes automatically to your service in ECS.

  • A: Using Git with AWS CodeCommit

    To test out the new pipeline, we need to configure git within your Cloud9 IDE and integrate it with your CodeCommit repository.

    AWS CodeCommit provides a credential helper for git that we will use to make integration easy.

    Run the following commands in sequence on the terminal to configure git to be used with AWS CodeCommit (neither will report any response if successful):

    git config --global user.name "REPLACE_ME_WITH_YOUR_NAME"
    git config --global user.email REPLACE_ME_WITH_YOUR_EMAIL@example.com
    git config --global credential.helper '!aws codecommit credential-helper $@'
    git config --global credential.UseHttpPath true

    Next change directories in your IDE to the environment directory using the terminal:

    cd ~/environment/

    Now, we are ready to clone our repository using the following terminal command:

    git clone https://git-codecommit.REPLACE_REGION.amazonaws.com/v1/repos/MythicalMysfitsService-Repository

    This will tell us that our repository is empty! Let's fix that by copying the application files into our repository directory using the following command:

    cp -r ~/environment/aws-modern-application-workshop/module-2/app/* ~/environment/MythicalMysfitsService-Repository/
    B: Pushing A Code Change

    Now the completed service code that we used to create our Fargate service in Module 2 is stored in the local repository that we just cloned from AWS CodeCommit. Let's make a change to the Flask service before committing our changes, to demonstrate that the CI/CD pipeline we've created is working. In Cloud9, open the file stored at ~/environment/MythicalMysfitsService-Repository/service/mysfits-response.json and change the age of one of the mysfits to another value and save the file.

    After saving the file, change directories to the new repository directory:

    cd ~/environment/MythicalMysfitsService-Repository/

    Then, run the following git commands to push in your code changes.

    git add .
    git commit -m "I changed the age of one of the mysfits."
    git push

    After they are pushed in to the repository, you can open the CodePipeline service in the AWS Console to view your changes as they progress through the CI/CD pipeline.

    After committing your code change, it will take about 5 to 10 minutes for the changes to be deployed to your live service running in Fargate. Refresh your Mythical Mysfits website in the browser to see that the changes have taken effect.

    This concludes Module 2.

Next, store mysfit data.
