Guidance for Multi-Region Serverless Batch Applications on AWS

Overview

This Guidance helps customers design a resilient batch process application using AWS services. The batch application is deployed across two AWS Regions for automated failover and failback from one Region to another and leverages Amazon Simple Storage Service (Amazon S3) Multi-Region Access Points (MRAPs). With this architecture, you can obtain insights from your applications that help you make decisions on when to failover batch applications from a primary to a standby Region. While single-Region architectures are sufficient to support most customer's resilience requirements, the multi-Region architecture in this Guidance is ideal for customers with more demanding needs for resiliency.

How it works

Primary Region

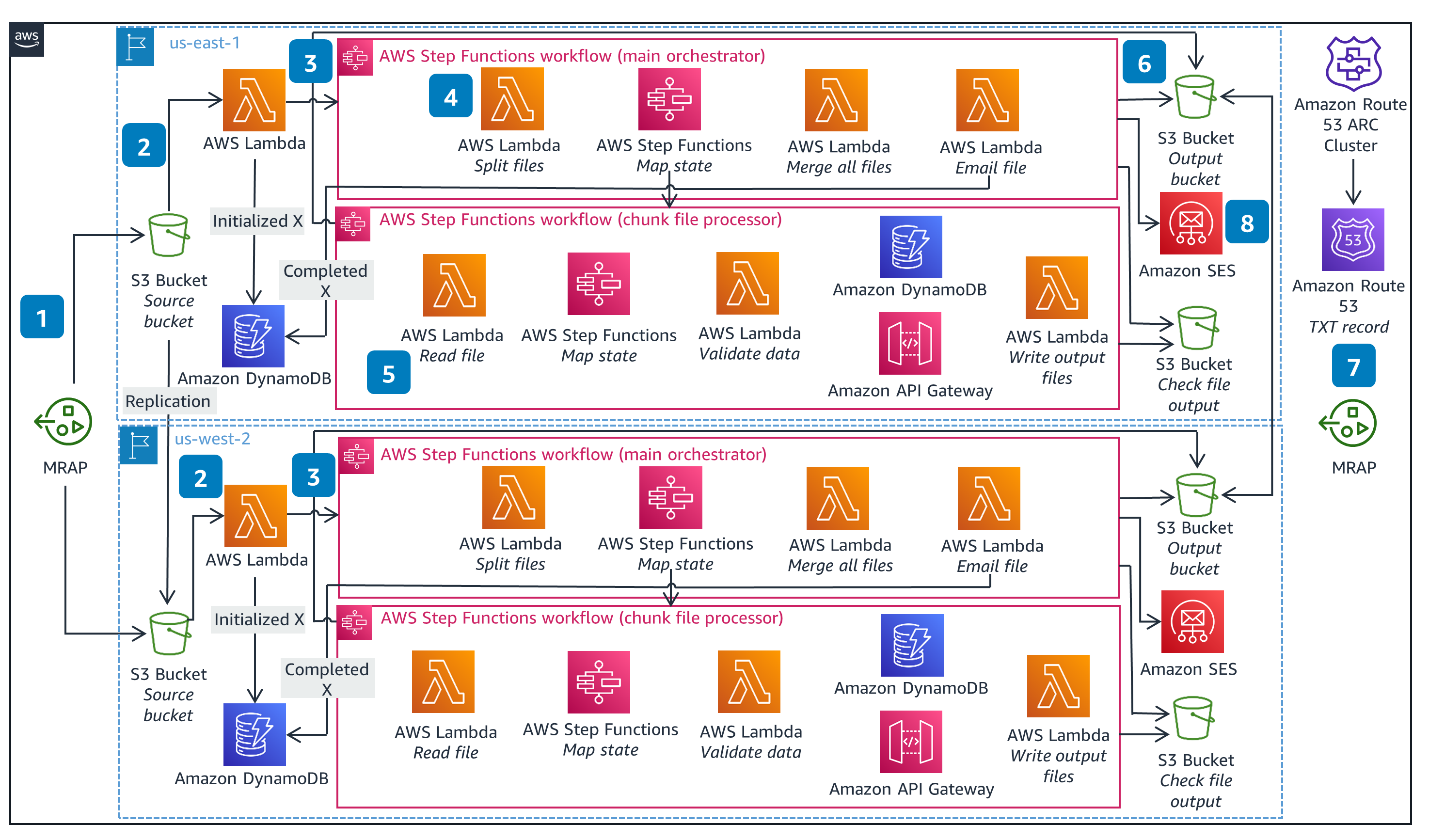

This architecture shows the multi-Region, event-driven workload when running in the primary Region.

Architecture diagram illustrating a multi-region AWS serverless batch application setup. The diagram features AWS Lambda, AWS Step Functions, Amazon S3 buckets, Amazon DynamoDB, Amazon SES, Amazon Route 53, and other services deployed in us-east-1 and us-west-2, showing how files are processed, orchestrated, split, merged, and emailed in a resilient, multi-region approach.

Standby Region

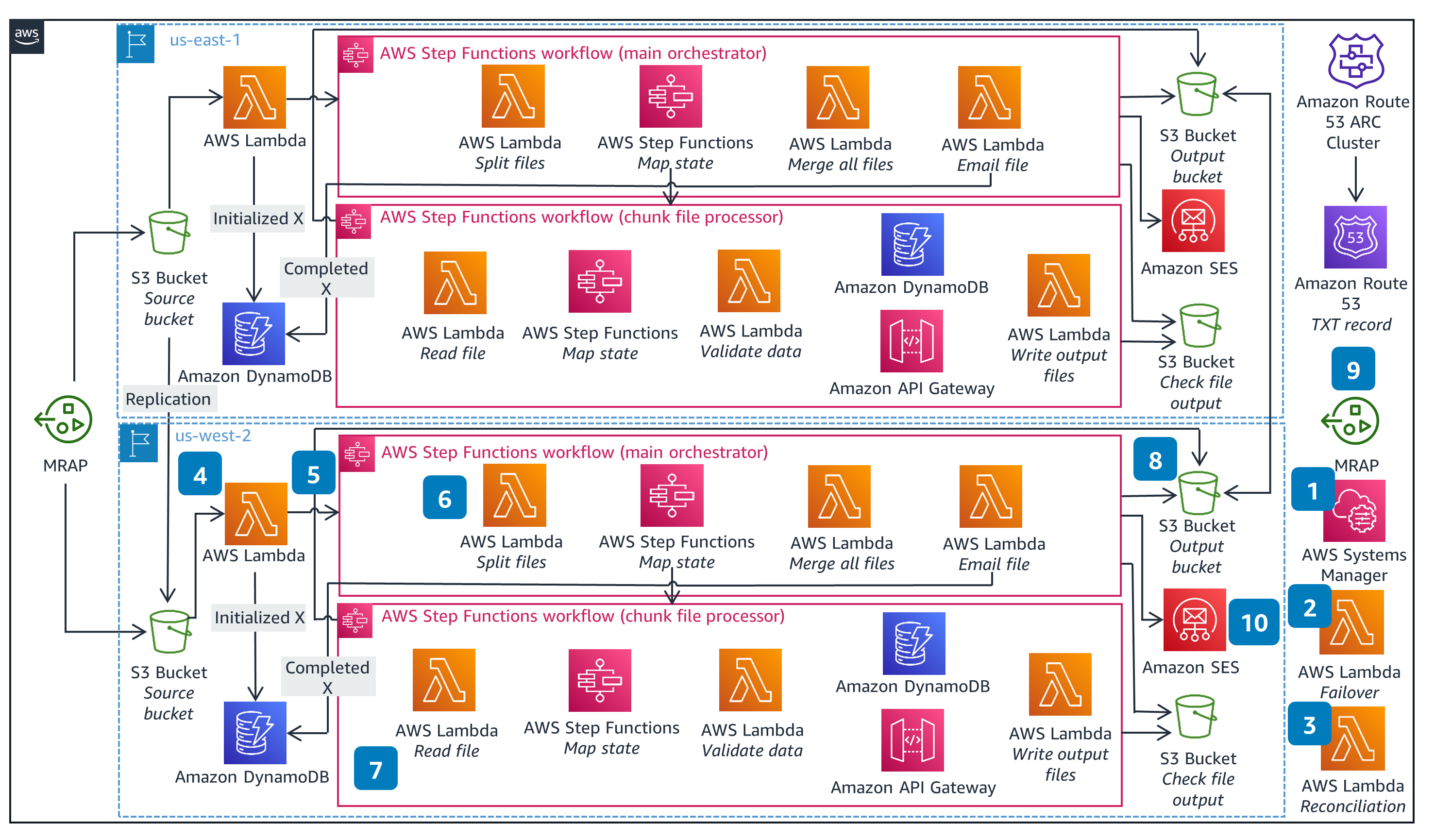

This architecture shows the multi-Region, event-driven workload when failing over to the standby Region.

Architecture diagram illustrating a multi-region AWS serverless batch application with standby region, featuring AWS Lambda, Step Functions, Amazon DynamoDB, S3 buckets, SES, Route 53 ARC, and failover orchestration for high availability.

Well-Architected Pillars

The architecture diagram above is an example of a Solution created with Well-Architected best practices in mind. To be fully Well-Architected, you should follow as many Well-Architected best practices as possible.

You can deploy this Guidance with infrastructure as code (IaC) to make any modifications. We also provide a dashboard that helps you understand performance and make iterations to the Guidance so you can achieve your desired performance characteristics.

Read the Operational Excellence whitepaper

We implemented least privilege access on Identity and Access Management (IAM) roles attached to the Lambda functions, so these roles only have permission to access the resources they need. You can use a pre-signed Amazon S3 URL to access S3 buckets. In this Guidance, these URLs come with a set expiration time of sixty minutes to protect resources from unrestricted access.

Read the Security whitepaper

This Guidance replicates data across Regions to allow for full redundancy in the standby Region. This multi-Region approach allows you to failover to another Region in disaster recovery scenarios. Within the Region, you can use retry logic and decoupled processing.

Read the Reliability whitepaper

We chose the services in this Guidance based on their abilities to reduce cost and complexity and enhance performance. You can test the Guidance with the provided example files and modify processes based on your specific use case.

Read the Performance Efficiency whitepaper

This Guidance uses serverless services that allow you to pay only for the resources you consume during batch processing. With these services, your costs are directly associated to the number of processed items for each batch job.

Read the Cost Optimization whitepaper

The serverless and managed services scale to meet changes in demand. AWS handles the provisioning of the underlying resources. This helps you avoid provisioning unneeded resources.

Read the Sustainability whitepaper

Deploy with confidence

Ready to deploy? Review the sample code on GitHub for detailed deployment instructions to deploy as-is or customize to fit your needs.
