在之前的 blog 中，我们介绍了在⿊五等促销季来临时，怎么使⽤ ODCR 来保留资源，并在 EMR 中如何使⽤这些资源。不过在有些场景中，仅靠 ODCR 并不能完全满⾜我们的需求，或者说配置会⾮常复杂，举例来说：

场景⼀：两个集群 A 和 B 都配置了 r7g.4xlarge 和 r7g.8xlarge，但我们希望集群 A 多使⽤ r7g.4xlarge，⽽集群 B 多使⽤r7g.8xlarge；

场景⼆：我们在⼀个集群内，同时配置了 r7g 和 r6g，但我们希望使⽤性价⽐更⾼的 r7g。

虽然 Targeted ODCR 通过指定特定的 ODCR 预留来控制资源的使⽤，但它仅⽀持设置“有”或“⽆”，不⽀持设定优先级。⽽之前的 EMR 中，Fleet 的 On-Demand 机型，只⽀持 lowest-price ⼀种 allocation strategy，所以在场景⼆中，总是会使⽤单价更低的 r6g ⽽不是性价⽐更⾼ r7g。所幸，在 2024年，EMR 发布了⼀个新的特性，⽀持指定实例优先级，在 On-Demand allocation strategy 中称为 prioritized，在 Spot 中则是 capacity-optimized-prioritized。本篇Blog就重点介绍 Prioritized 新特性的使⽤场景和具体⽤法。

以前⾯提到的两个场景为例，我们来解释实例优先级的使⽤：

场景⼀：在集群 A 中，将 r7g.4xlarge 的优先级配置为更⾼（ priority 数值更⼩），则集群 A 会优先使⽤ r7g.4xlarge。对应的，集群 B 中，需要将 r7g.8xlarge 的优先级配置为更⾼；
场景⼆：默认的 lowest-price 会优先单价更低的 r6g，因此需要切换到 prioritized allocation strategy，并且将 r7g 的优先级设为更⾼。

需要再次提醒的是，priority 数值更⼩代表着优先级更⾼，数值 0 代表最⾼优先级。另外，allocation strategy 仅对 Instance Fleet有效，在 Instance Group 中没有对应配置。

下⾯我们通过⼀个例⼦，来说明 prioritized allocation strategy 的使⽤。

如果是在 EMR 控制台上，创建集群时需要选择 Instance Fleet，并且勾选 “Apply allocation strategy”，在 Allocation strategy中，On-Demand 选择 Prioritized，Spot 选择 Capacity optimized prioritized。

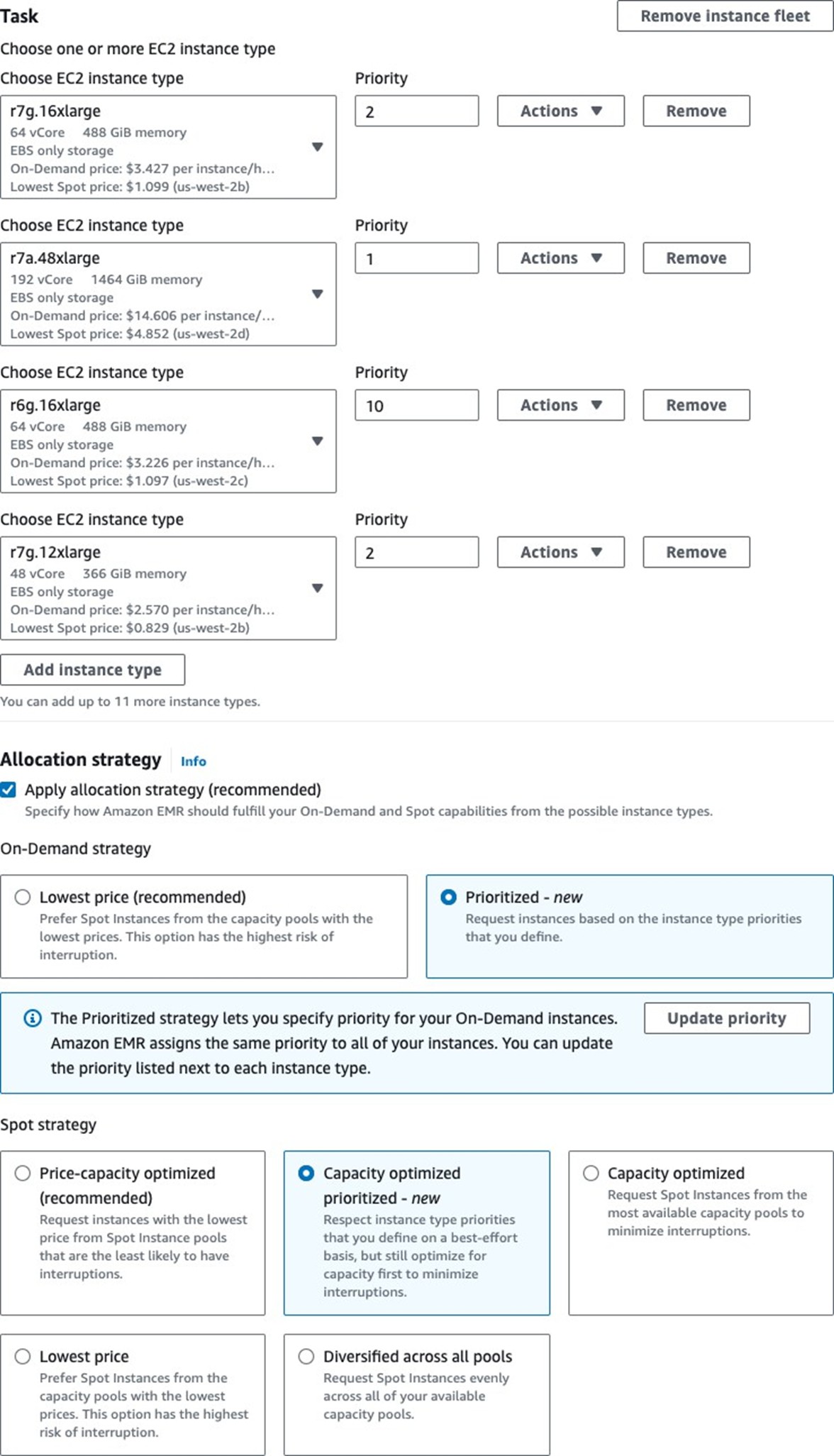

给不同的实例类型赋予不同的 priority，下图中，r7a.48xlarge 的优先级最⾼，r7g.16xlarge 和 r7g.12xlarge 并列第⼆，最低的是r6g.16xlarge。

如果是 AWS CLI 中，则需要在 LaunchSpecifications 指定 AllocationStrategy，并且还要给每个实例赋予 Priority 数值。

aws emr create-cluster \
 --name "priority" \
 --log-uri "s3://aws-logs-0123456789-us-west-2/elasticmapreduce" \
 --release-label "emr-6.10.1" \
 --service-role "arn:aws:iam::0123456789:role/EMR_DefaultRole" \
 --unhealthy-node-replacement \
 --ec2-attributes '{"InstanceProfile":"EMR_EC2_DefaultRole","EmrManagedMasterSecurityGroup":"sg-0123456789","EmrManagedSlaveSecurityGroup":"sg-0123456789","KeyName":"KEY-NAME","AdditionalMasterSecurityGroups":[],"AdditionalSlaveSecurityGroups":[],"ServiceAccessSecurityGroup":"sg-0123456789","SubnetId":"subnet-0123456789"}' \
 --applications Name=Hive \
 --instance-fleets '[{"Name":"Core","InstanceFleetType":"CORE","TargetSpotCapacity":0,"TargetOnDemandCapacity":1,"LaunchSpecifications":{"SpotSpecification":{"TimeoutDurationMinutes":60,"TimeoutAction":"TERMINATE_CLUSTER","AllocationStrategy":"CAPACITY_OPTIMIZED_PRIORITIZED"},"OnDemandSpecification":{"AllocationStrategy":"PRIORITIZED"}},"InstanceTypeConfigs":[{"WeightedCapacity":4,"EbsConfiguration":{"EbsBlockDeviceConfigs":[{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}}]},"BidPriceAsPercentageOfOnDemandPrice":100,"InstanceType":"m6g.xlarge","Priority":0}]},{"Name":"Primary","InstanceFleetType":"MASTER","TargetSpotCapacity":0,"TargetOnDemandCapacity":1,"LaunchSpecifications":{"SpotSpecification":{"TimeoutDurationMinutes":60,"TimeoutAction":"TERMINATE_CLUSTER","AllocationStrategy":"CAPACITY_OPTIMIZED_PRIORITIZED"},"OnDemandSpecification":{"AllocationStrategy":"PRIORITIZED"}},"InstanceTypeConfigs":[{"WeightedCapacity":1,"EbsConfiguration":{"EbsBlockDeviceConfigs":[{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}}]},"BidPriceAsPercentageOfOnDemandPrice":100,"InstanceType":"m6g.2xlarge","Priority":0}]},{"Name":"Task - 1","InstanceFleetType":"TASK","TargetSpotCapacity":24,"TargetOnDemandCapacity":24,"LaunchSpecifications":{"SpotSpecification":{"TimeoutDurationMinutes":5,"TimeoutAction":"TERMINATE_CLUSTER","AllocationStrategy":"CAPACITY_OPTIMIZED_PRIORITIZED"},"OnDemandSpecification":{"AllocationStrategy":"PRIORITIZED"}},"InstanceTypeConfigs":[{"WeightedCapacity":64,"EbsConfiguration":{"EbsOptimized":true,"EbsBlockDeviceConfigs":[{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}}]},"BidPriceAsPercentageOfOnDemandPrice":100,"InstanceType":"r7g.16xlarge","Priority":2},{"WeightedCapacity":192,"EbsConfiguration":{"EbsOptimized":true,"EbsBlockDeviceConfigs":[{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":64}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":64}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":64}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":64}}]},"BidPriceAsPercentageOfOnDemandPrice":100,"InstanceType":"r7a.48xlarge","Priority":1},{"WeightedCapacity":64,"EbsConfiguration":{"EbsOptimized":true,"EbsBlockDeviceConfigs":[{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":32}}]},"BidPriceAsPercentageOfOnDemandPrice":100,"InstanceType":"r6g.16xlarge","Priority":10},{"WeightedCapacity":48,"EbsConfiguration":{"EbsOptimized":true,"EbsBlockDeviceConfigs":[{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":64}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":64}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":64}},{"VolumeSpecification":{"VolumeType":"gp2","SizeInGB":64}}]},"BidPriceAsPercentageOfOnDemandPrice":100,"InstanceType":"r7g.12xlarge","Priority":2}]}]' \
 --scale-down-behavior "TERMINATE_AT_TASK_COMPLETION" \
 --auto-termination-policy '{"IdleTimeout":3600}' \
 --region "us-west-2"

"LaunchSpecifications": {
  "SpotSpecification": {
    "TimeoutDurationMinutes": 60,
    "TimeoutAction": "TERMINATE_CLUSTER",
    "AllocationStrategy": "CAPACITY_OPTIMIZED_PRIORITIZED"
  },
  "OnDemandSpecification": {
    "AllocationStrategy": "PRIORITIZED"
  }
}

如果是使⽤ SDK，则需要同时指定 Provisioning 和 Resizing 时的配置

OnDemandProvisioningSpecification onDemandProvisioningSpecification = OnDemandProvisioningSpecification.builder()
        .allocationStrategy(OnDemandProvisioningAllocationStrategy.PRIORITIZED)
        .capacityReservationOptions(onDemandCapacityReservationOptions)
        .build();

SpotProvisioningSpecification spotProvisioningSpecification = SpotProvisioningSpecification.builder()
        .allocationStrategy(SpotProvisioningAllocationStrategy.CAPACITY_OPTIMIZED_PRIORITIZED)
        .timeoutDurationMinutes(5)
        .timeoutAction(SpotProvisioningTimeoutAction.TERMINATE_CLUSTER)
        .build();

OnDemandResizingSpecification onDemandResizingSpecification = OnDemandResizingSpecification.builder()
        .allocationStrategy(OnDemandProvisioningAllocationStrategy.PRIORITIZED)
        .capacityReservationOptions(onDemandCapacityReservationOptions)
        .timeoutDurationMinutes(5)
        .build();

SpotResizingSpecification spotResizingSpecification = SpotResizingSpecification.builder()
        .allocationStrategy(SpotProvisioningAllocationStrategy.CAPACITY_OPTIMIZED_PRIORITIZED)
        .timeoutDurationMinutes(5)
        .build();

每个机型则需要以 Double 类型指定优先级数值。

InstanceTypeConfig r6g16xLarge = InstanceTypeConfig.builder()
        .bidPriceAsPercentageOfOnDemandPrice(100.0)
        .instanceType("r6g.16xlarge")
        .ebsConfiguration(
                EbsConfiguration.builder()
                        .ebsBlockDeviceConfigs(EbsBlockDeviceConfig.builder()
                                .volumeSpecification(
                                        VolumeSpecification.builder()
                                                .sizeInGB(1400)
                                                .iops(3000)
                                                .throughput(250)
                                                .volumeType("gp3")
                                                .build()
                                )
                                .build())
                        .build())
        .weightedCapacity(64)
        .priority(10.0)
        .build();

值得⼀提的是，Spot 机型是 capacity-optimized-prioritized，它先考虑容量，再尽量考虑实例优先级。以我们前⾯的控制台配置为例，实际启动集群时，可能 task node 会成功创建了 r7g.16xlarge spot 实例 1 个，r7a.48xlarge on-demand 实例 1 个。 r7a.48xlarge 资源紧张，因此 Spot 并没有从优先级最⾼的 r7a.48xlarge 创建实例，⽽是使⽤了次⼀级的 r7g.16xlarge。

综上所述，EMR 新增的 prioritized/capacity-optimized-prioritized allocation strategy 在机型选择⽅⾯提供了更多的可定制性，通过它，我们可以根据⾃⼰的实际需求，结合当前资源容量，控制在 Instance Fleet 中不同实例类型的搭配。另外，Allocation strategy 既可以单独使⽤，也可以和 ODCR 配合使⽤，可以在保证资源供应的同时，还能具有机型调配的灵活性。总⽽⾔之，对于需要在资源可⽤性和成本效益之间取得平衡，同时对特定实例类型有明确偏好的企业⽤户，特别是运⾏⼤规模数据处理⼯作负载且关注资源分配精确性的客户，prioritized/capacity-optimized-prioritized allocation strategy 会是您的最佳选择。
