Guidance for a Cell-Based Architecture for Amazon EKS

Improve resiliency and reduce your data transfer costs between Availability Zones

Go to sample code
Open guide

Overview

This Guidance demonstrates how to configure a cell-based architecture for Amazon Elastic Kubernetes Service (Amazon EKS). It moves away from typical multiple Availability Zone clusters to a single Availability Zone cluster. These single Availability Zone clusters are called cells, and the aggregation of these cells in each Region is called a supercell. These cells help to ensure that a failure in one cell doesn't affect the cells in another, reducing data transfer costs and improving both the availability and resiliency against Availability Zone failures for Amazon EKS workloads.

Benefits

Deploy independent application cells using bulkhead architecture patterns. Prevent issues in one cell from cascading across your container environment while maintaining service stability.

Keep container workload communications within Availability Zone boundaries. Eliminate inter-AZ data transfer costs for chatty microservices while maintaining high availability.

Deploy and manage containerized workloads separately within each zone. Respond to changing business needs without complex infrastructure coordination.

How it works

Cell-Based EKS Architecture

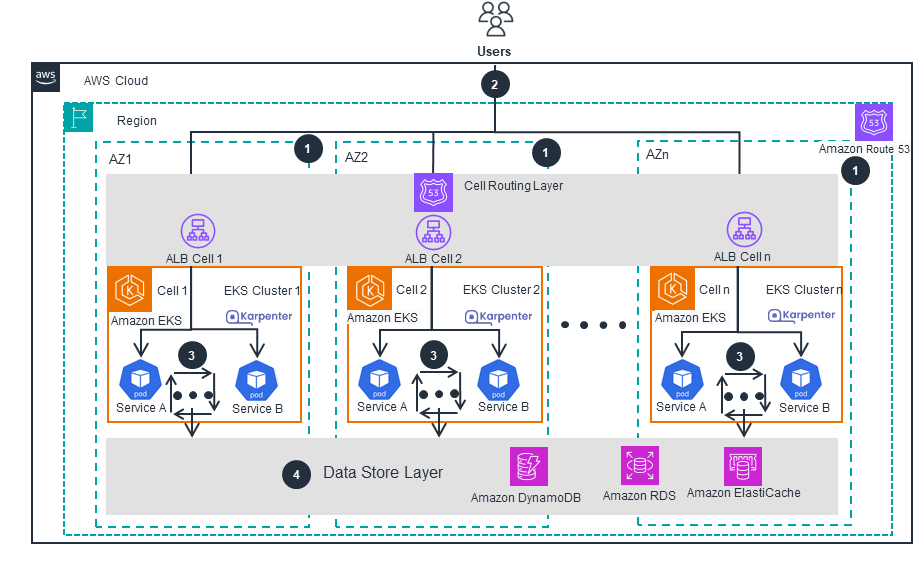

This architecture diagram shows how you can use a cell-based architecture to improve resiliency and reduce data transfer costs for Amazon EKS workloads. It shows what a cell consists of and how those cells are routed. For more details about supercells, open the other tab.

Download the architecture diagram
Guidance for a Cell-Based Architecture for Amazon EKS - Main architecture

Regional Cell Aggregation

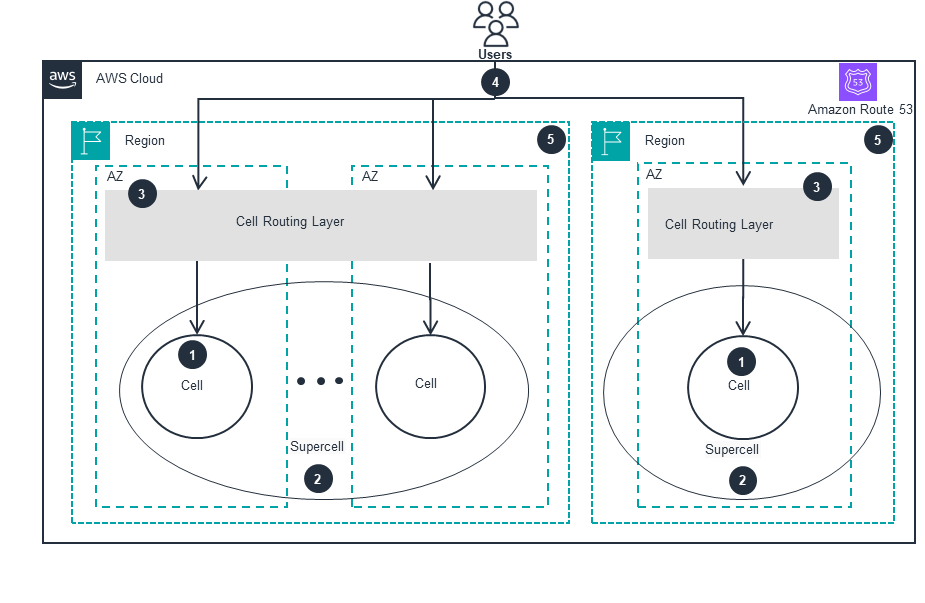

This architecture diagram shows how multiple cells are aggregated to create a supercell. It also outlines how those supercells are routed. For more details about the main architecture, open the other tab.

Download the architecture diagram
Guidance for a Cell-Based Architecture for Amazon EKS - Supercells

Deploy with confidence

Everything you need to launch this Guidance in your account is right here

We'll walk you through it

Dive deep into the implementation guide for additional customization options and service configurations to tailor to your specific needs.

Open guide

Let's make it happen

Ready to deploy? Review the sample code on GitHub for detailed deployment instructions to deploy as-is or customize to fit your needs.

Go to sample code
