Guidance for Operating Mainframe Applications in the Cloud with AWS Mainframe Modernization

Overview

This Guidance shows how to implement and operate highly available, resilient mainframe applications on AWS using the AWS Mainframe Modernization service. It provides a comprehensive framework for utilizing the maturity, reliability, security, and performance of AWS to modernize mission-critical mainframe workloads. This Guidance also outlines best practices for deploying, configuring, and maintaining mainframe applications on the AWS infrastructure, helping you to achieve high availability through failover mechanisms and disaster recovery protocols. Furthermore, it explores strategies for optimizing performance, scalability, resource utilization, and cost efficiency, allowing you to maximize the benefits of cloud computing for your mainframe environments.

How it works

Management interfaces

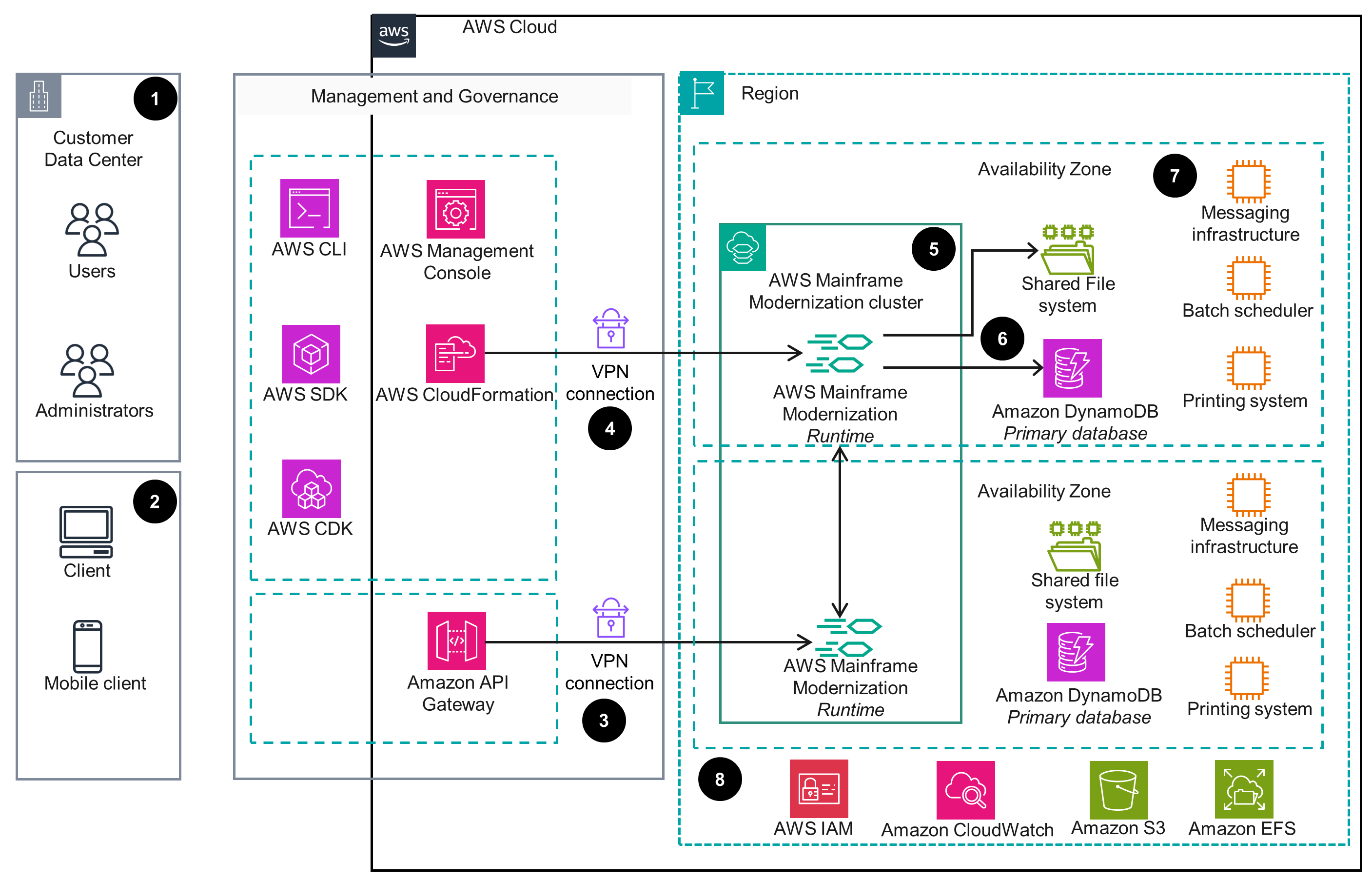

This architecture diagram shows how to operate modernized mainframe applications at scale using the various management interfaces with the AWS Mainframe Modernization service.
Download the architecture diagram
Architecture diagram illustrating the management interfaces, components, and data flow for AWS Mainframe Modernization. It shows user connections from a customer data center (users, administrators, clients, and mobile clients) to AWS Cloud via VPN. The diagram details the use of AWS CLI, Management Console, SDK, CDK, CloudFormation, and API Gateway for management and governance, and outlines the roles of AWS Mainframe Modernization clusters, runtimes, shared file systems, DynamoDB databases, and supporting systems like messaging infrastructure, batch schedulers, and printing systems across availability zones.

Cloud management and governance

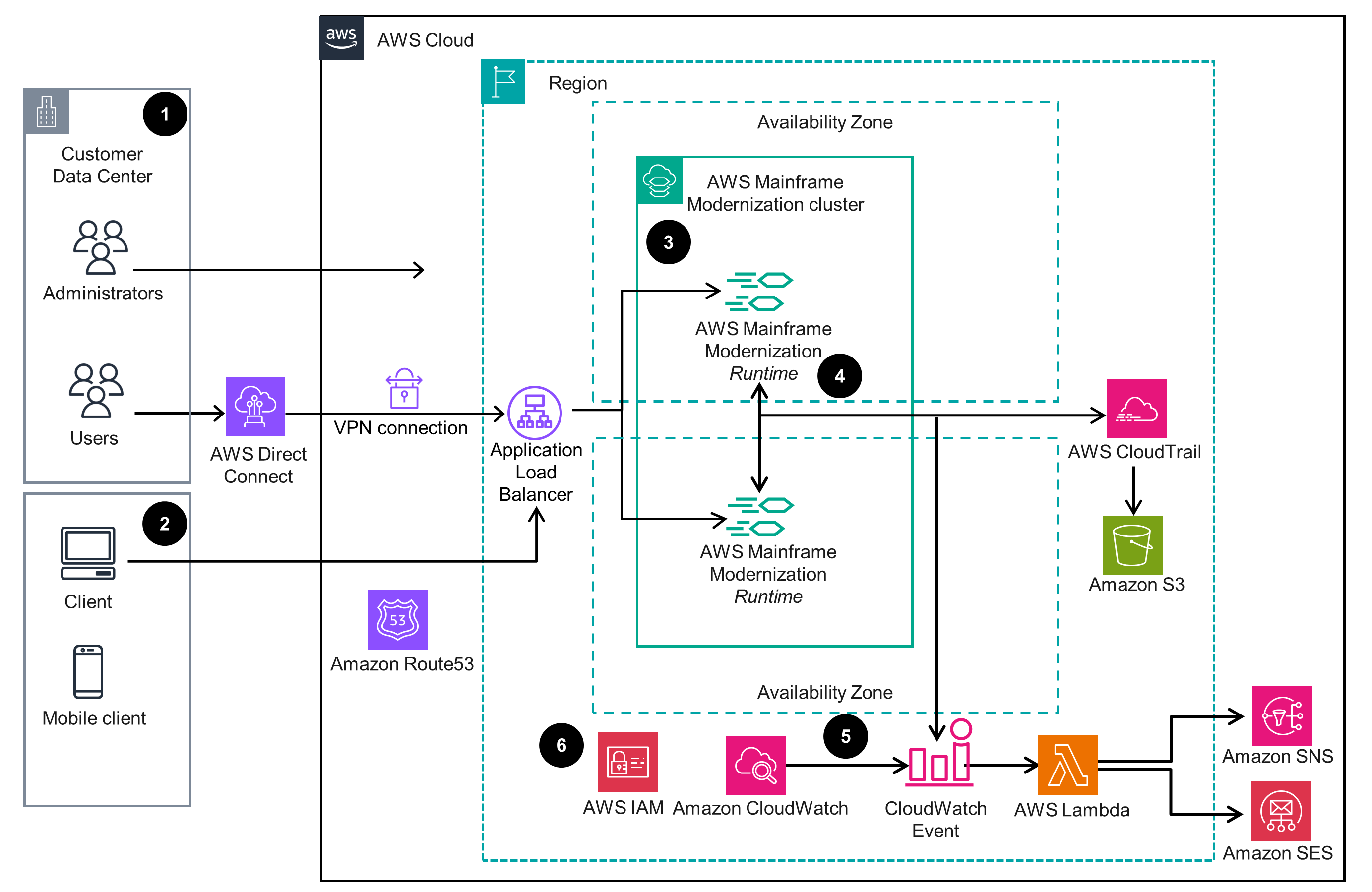

This architecture diagram shows how applications modernized using AWS Mainframe Modernization have native integrations with AWS Cloud management and governance services.
Download the architecture diagram
Architecture diagram illustrating the AWS Mainframe Modernization cloud management solution, showing integration of customer data center, AWS Mainframe Modernization clusters, Direct Connect, VPN, Application Load Balancer, IAM, CloudWatch, Lambda, CloudTrail, S3, Route 53, SNS, and SES services across availability zones.

Well-Architected Pillars

The architecture diagram above is an example of a Solution created with Well-Architected best practices in mind. To be fully Well-Architected, you should follow as many Well-Architected best practices as possible.

The AWS Mainframe Modernization service allows you to develop or update your mainframe applications using Common Business Oriented Language (COBOL) or Programming Language One (PL/I) and implement an automated continuous integration and continuous delivery (CI/CD) pipeline. With CloudWatch, you can monitor your resources and applications in real-time by collecting metrics and setting alarms. Amazon CloudWatch Logs helps you track and store log data, while CloudTrail captures API calls and events for auditing purposes. Further, CloudFormation allows you to manage your environments and applications using infrastructure as code (IaC) best practices, ensuring repeatable, standardized deployments.

Read the Operational Excellence whitepaper

IAM allows you to control access to your resources through identity-based policies, with only authorized users and roles able to perform actions. AWS Mainframe Modernization integrates with AWS Secrets Manager to securely store application database credentials, with AWS Key Management System (AWS KMS) providing the encryption keys. These services work together to protect your sensitive data and maintain the overall security of your modernized mainframe environment.

Read the Security whitepaper

CloudTrail tracks API calls and events, so you can maintain a comprehensive audit trail of your AWS activities. Amazon SES and Amazon SNS deliver notifications and alerts, keeping you informed of any issues or events that may impact your modernized mainframe applications.

Read the Reliability whitepaper

AWS Mainframe Modernization provides a range of compute capacity options, allowing you to choose the right resources to meet your transactional, batch processing, and other operational requirements. Define and continuously monitor the performance metrics of your infrastructure and application components with CloudWatch, which helps you identify and address any performance bottlenecks.

Read the Performance Efficiency whitepaper

AWS Cost Explorer gives you a visual representation of your AWS costs and usage over time, allowing you to make informed decisions about resource utilization and cost management. AWS Mainframe Modernization includes several built-in batch utilities, such as M2SFTP (for secure file transfer using the SFTP protocol), M2WAIT (which waits for a specified amount of time before continuing with the next step in a batch job), and TXT2PDF (which converts text files to PDF format). These utilities allow you to perform common functions without incurring additional licensing fees, optimizing your overall costs.

Read the Cost Optimization whitepaper

AWS Mainframe Modernization allows you to scale your infrastructure based on user demand, avoiding overprovisioned capacity. The service is also available in multiple AWS Regions, so you can optimize the geographic placement of your workloads. Lastly, CloudWatch provides insights into your resource utilization, allowing you to identify and eliminate any inefficiencies, reducing your environmental impact, and enhancing the overall sustainability of your modernized mainframe applications.

Read the Sustainability whitepaper
