Guidance for Disaster Recovery Using Amazon Aurora

Overview

This Guidance shows how to deploy a comprehensive disaster recovery (DR) solution for Amazon Aurora. Different business requirements necessitate different ways of achieving your DR objectives, and finding the best option to meet your recovery point objective (RPO) and recovery time objective (RTO) can be overwhelming. This Guidance evaluates the most common routes to take when developing the database portion of your DR plan. By spanning your database resources to a secondary AWS Region and using AWS Backup or Aurora global databases, you can restore your data more easily in the event of a disaster, minimizing interruptions to your business.

How it works

Replicate data

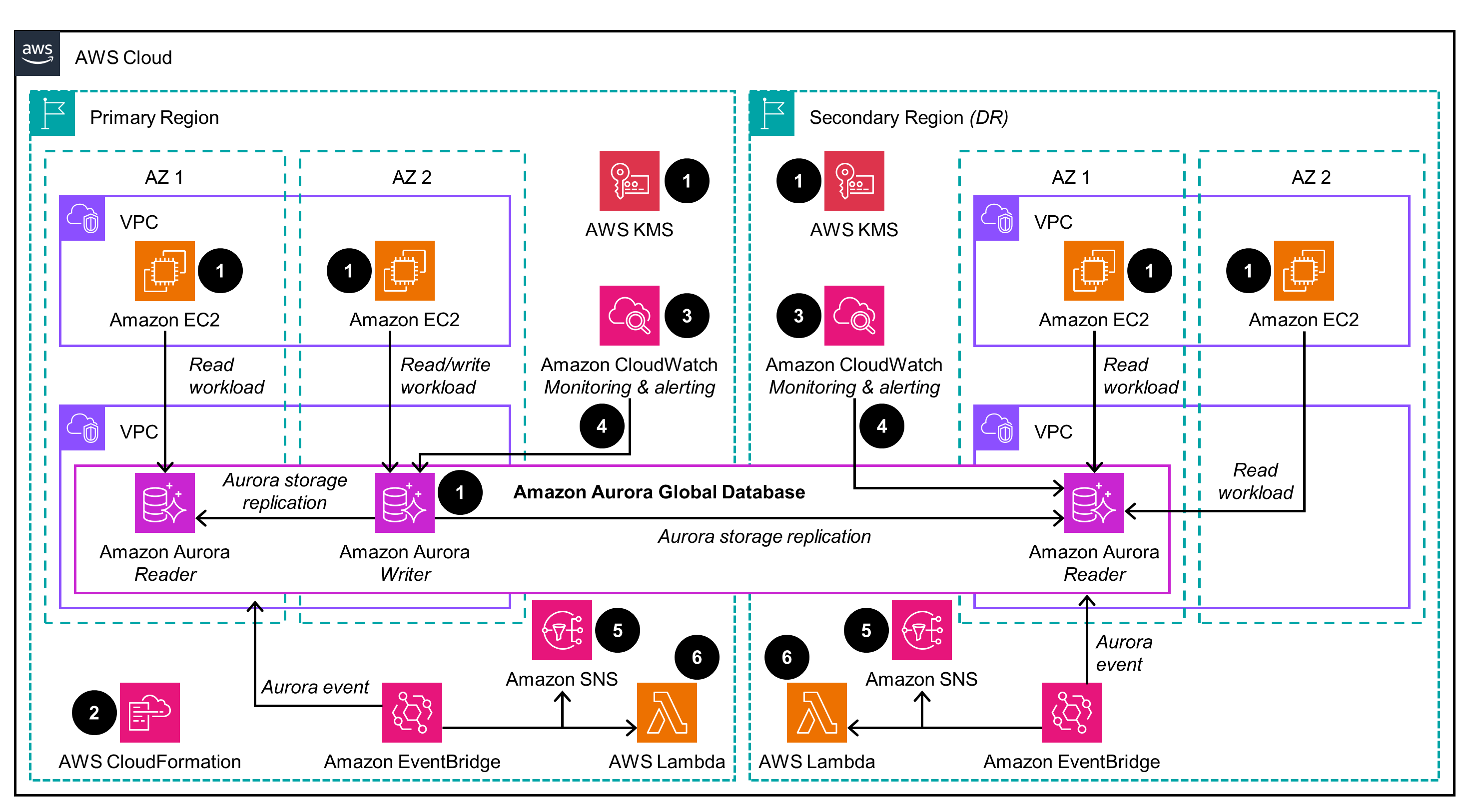

This architecture diagram shows how to implement an Aurora Global database to replicate data to a secondary Region.

Download the architecture diagram
Architecture diagram illustrating a disaster recovery setup using Amazon Aurora Global Database replication across primary and secondary AWS regions. The diagram shows components including Amazon EC2, VPC, AWS KMS, Amazon CloudWatch, Amazon Aurora Writer and Reader nodes, AWS CloudFormation, Amazon EventBridge, AWS Lambda, and Amazon SNS, with Aurora storage replication enabled between regions for high availability and data protection.

Backup data

These technical details feature an architecture diagram to illustrate how to effectively use this solution. The architecture diagram shows the key components and their interactions, providing an overview of the architecture's structure and functionality step-by-step.
Download the architecture diagram
Diagram illustrating the AWS Aurora disaster recovery architecture for backup data, featuring AWS Organizations, Amazon Aurora, AWS Backup, AWS KMS, Amazon EventBridge, AWS CloudFormation, AWS IAM roles, and multiple accounts and regions for production/source and central backup/target accounts.

Well-Architected Pillars

The architecture diagram above is an example of a Solution created with Well-Architected best practices in mind. To be fully Well-Architected, you should follow as many Well-Architected best practices as possible.

Aurora enables you to customize DR solutions based on your RPO and RTO needs to uphold operational continuity during disaster events. CloudWatch and AWS CloudTrail aid in tracking and reviewing logs and information. By contributing to operational visibility, these services enable quick and effective error review and incident response.

Read the Operational Excellence whitepaper

This Guidance uses AWS Identity and Access Management (IAM) to enforce the least-privilege model, limiting access to resources. Private resources, protected by IAM identity-based policies, offer heightened security. Additionally, it uses AWS-managed roles in CloudFormation to control access. AWS KMS provides default encryption and the option to use custom keys to safeguard data. Encrypted DB clusters in Aurora offer an additional layer of data protection by encrypting underlying storage, backups, replicas, and snapshots, helping you meet compliance requirements.

Read the Security whitepaper

Aurora supports data resilience by using replication across multiple AZs to maintain high availability. Amazon Simple Storage Service (Amazon S3) offers durable storage for critical data, like Aurora snapshots and AWS Backup data. CloudFormation automates resource deployment, as well as rollbacks upon failures. CloudWatch dashboards and Amazon SNS notifications enable monitoring and alerts, and AWS Backup facilitates backup and restore operations for Aurora databases, all contributing to a highly reliable architecture.

Read the Reliability whitepaper

This Guidance uses services selected to enhance performance. Aurora offers low-latency, storage-based replication, and Aurora global databases provide cross-Region replication, helping you minimize the impact on workload performance while maintaining data availability in the event of a failure. Additionally, CloudFormation enables you to customize values to meet service-level agreements and RPO and RTO requirements. Finally, AWS Backup uses Lambda and EventBridge for scalable backup frequency that you can optimize based on your business requirements.

Read the Performance Efficiency whitepaper

Aurora global databases and AWS Backup offer a pay-as-you-go model that helps you avoid maintenance overhead. You can also choose a headless configuration for Aurora global databases, reducing costs to storage and replicated I/O. Additionally, AWS Backup lets you adjust configurations, such as for retention periods, to optimize costs based on your recovery objectives. As a result of using these services, you can reduce unnecessary expenses while maintaining data integrity and availability.

Read the Cost Optimization whitepaper

The services in this Guidance contribute to sustainability by scaling resources based on workload demands. Aurora enables dynamic resizing of storage space to achieve optimal resource utilization and minimize unnecessary consumption. Aurora global databases replicate these dynamic changes across Regions to maintain consistency. Additionally, AWS Backup offers incremental and continuous backups, reducing data redundancy and optimizing backup efficiency. By using this Guidance with Aurora serverless v2 clusters, you can enhance capacity adjustments, aligning resources with application needs and minimizing waste.

Read the Sustainability whitepaper

Deploy with confidence

Everything you need to launch this Guidance in your account is right here

We'll walk you through it

A detailed guide is provided to experiment and use within your AWS account. Each stage of building the Guidance, including deployment, usage, and cleanup, is examined to prepare it for deployment.

Open implementation guide

Let's make it happen

The sample code is a starting point. It is industry validated, prescriptive but not definitive, and a peek under the hood to help you begin.

Open sample code on GitHub
