This Guidance shows how to deploy a comprehensive disaster recovery (DR) solution for Amazon Aurora. Different business requirements necessitate different ways of achieving your DR objectives, and finding the best option to meet your recovery point objective (RPO) and recovery time objective (RTO) can be overwhelming. This Guidance evaluates the most common routes to take when developing the database portion of your DR plan. By spanning your database resources to a secondary AWS Region and using AWS Backup or Aurora global databases, you can restore your data more easily in the event of a disaster, minimizing interruptions to your business.
Please note: [Disclaimer]
Architecture Diagram
-
Replicate data
-
Backup data
-
Replicate data
-

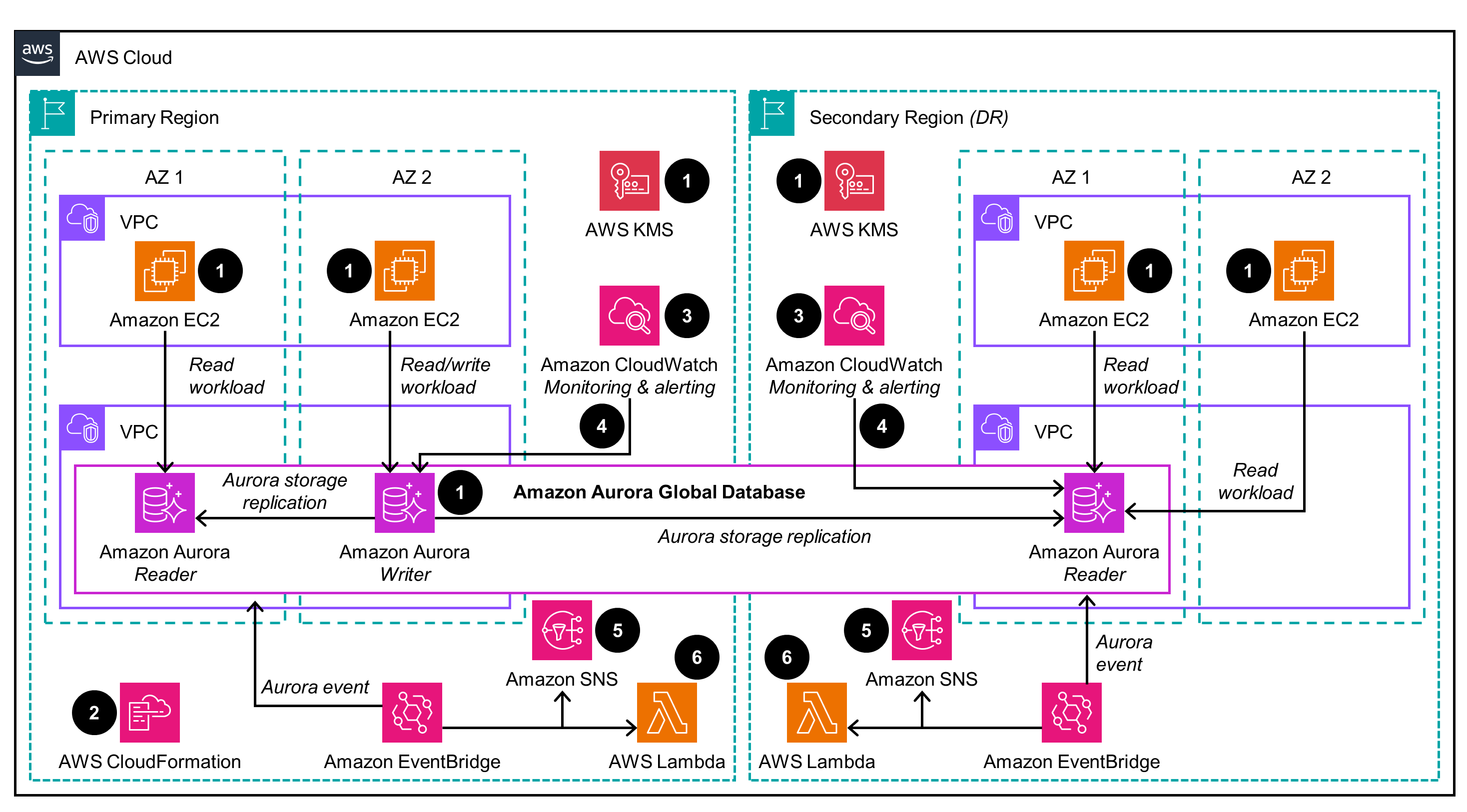

This architecture diagram shows how to implement an Aurora Global database to replicate data to a secondary Region.
Click to enlarge
Step 1
Prerequisites: This Guidance requires an existing Amazon Aurora Regional cluster. The application can run on Amazon Elastic Compute Cloud (Amazon EC2), Amazon Elastic Kubernetes Service (Amazon EKS), Amazon Elastic Container Service (Amazon ECS), or another service of your choice. This Guidance assumes you have used Amazon EC2 instances in virtual private clouds (VPCs) across multiple Availability Zones (AZs). You can encrypt an Aurora cluster using the default AWS Key Management Service (AWS KMS) or using a customer-managed key (CMK).
Step 2
AWS CloudFormation creates resources, including an Aurora read replica in the primary AWS Region if one does not exist already and an Aurora global database with a reader instance in the secondary Region. An Amazon CloudWatch dashboard, an Amazon Simple Notification Service (Amazon SNS) topic, an AWS Lambda function, and Amazon EventBridge rules are deployed in both Regions.Step 3
The CloudWatch dashboard is configured in the primary and secondary Regions to monitor key metrics related to Aurora, along with the replication status.Step 4
A CloudWatch alarm is created in both Regions to generate alarms for AuroraGlobalDBReplicationLag metrics and notifications through the Amazon SNS topic.Step 5
An EventBridge rule is configured for planned switchovers and unplanned failovers. When an event occurs, it sends notifications using Amazon SNS and calls the Lambda functions in both Regions.Step 6
The Lambda function provides a framework to add any additional functionalities during the failover event. For example:- You can configure the application to use an Amazon Route 53 in a newly promoted Region during a failover event so that no application configuration is required during the event.
- You can configure the application to restart an Amazon EC2 instance or the application deployment pods in the Amazon EKS cluster after the database failover event.
Step 1
Prerequisites: This Guidance requires an existing Amazon Aurora Regional cluster. The application can run on Amazon Elastic Compute Cloud (Amazon EC2), Amazon Elastic Kubernetes Service (Amazon EKS), Amazon Elastic Container Service (Amazon ECS), or another service of your choice. This Guidance assumes you have used Amazon EC2 instances in virtual private clouds (VPCs) across multiple Availability Zones (AZs). You can encrypt an Aurora cluster using the default AWS Key Management Service (AWS KMS) or using a customer-managed key (CMK).
Step 2
AWS CloudFormation creates resources, including an Aurora read replica in the primary AWS Region if one does not exist already and an Aurora global database with a reader instance in the secondary Region. An Amazon CloudWatch dashboard, an Amazon Simple Notification Service (Amazon SNS) topic, an AWS Lambda function, and Amazon EventBridge rules are deployed in both Regions.Step 3
The CloudWatch dashboard is configured in the primary and secondary Regions to monitor key metrics related to Aurora, along with the replication status.Step 4
A CloudWatch alarm is created in both Regions to generate alarms for AuroraGlobalDBReplicationLag metrics and notifications through the Amazon SNS topic.Step 5
An EventBridge rule is configured for planned switchovers and unplanned failovers. When an event occurs, it sends notifications using Amazon SNS and calls the Lambda functions in both Regions.Step 6
The Lambda function provides a framework to add any additional functionalities during the failover event. For example:- You can configure the application to use an Amazon Route 53 in a newly promoted Region during a failover event so that no application configuration is required during the event.
- You can configure the application to restart an Amazon EC2 instance or the application deployment pods in the Amazon EKS cluster after the database failover event.
-
Backup data
-

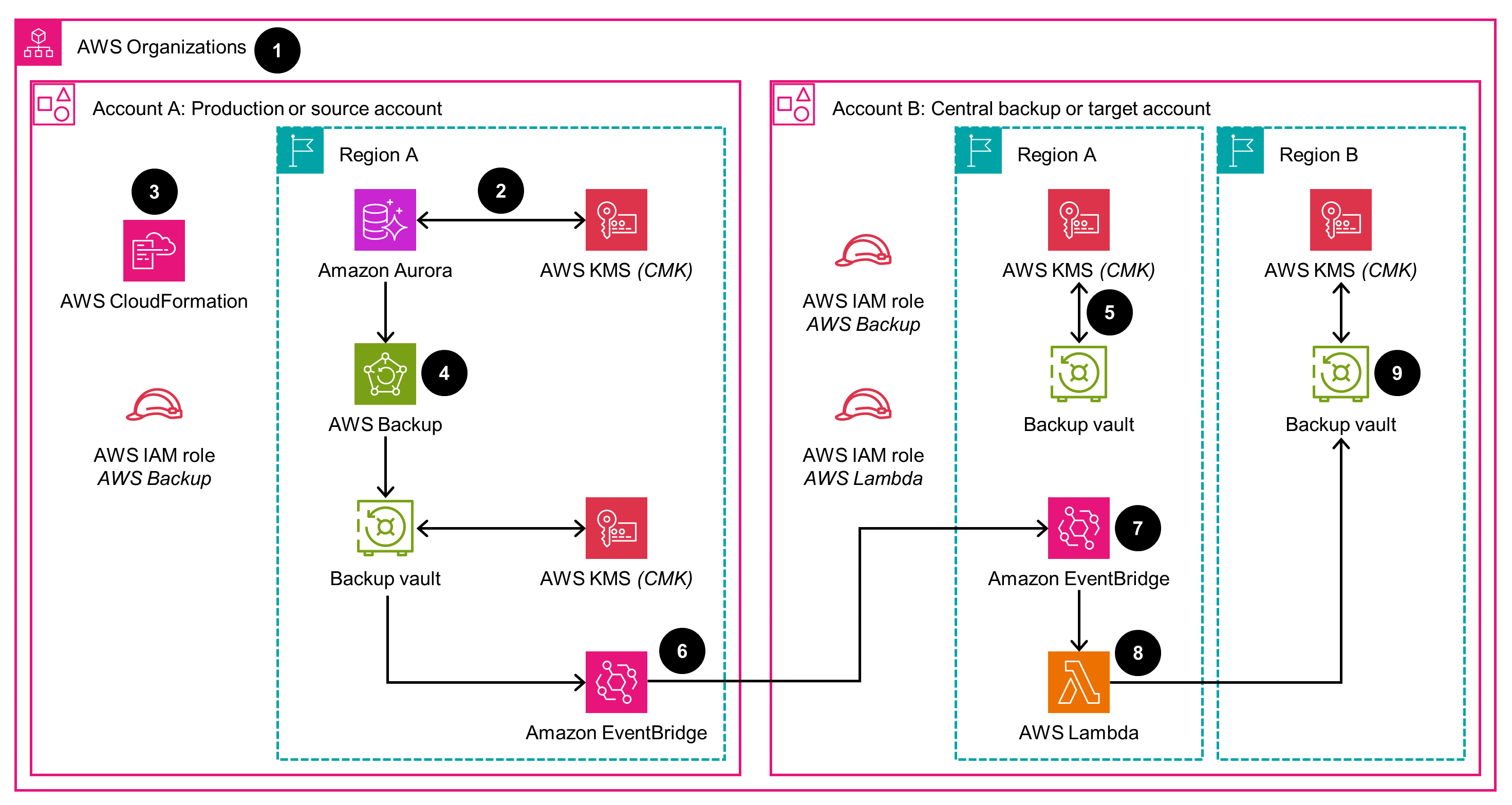

This architecture diagram shows how to backup your Amazon Aurora database automatically to another Region and/or to another account using AWS Backup.
Click to enlarge
Step 1
A preexisting organizational structure within AWS Organizations is necessary to establish cross-account AWS Backup between two accounts: Account A, which serves as the production or “source” account, and Account B, which is the central backup or “target” account. Notably, this Guidance provides the flexibility to include multiple target accounts.Step 2
An existing Aurora cluster in the source account is encrypted using a CMK that is shared across the source and target accounts. The cluster should also be tagged appropriately so that the solution can identify the desired resources for backup.Step 3
CloudFormation is used to deploy the solution resources in your source and target AWS accounts and Regions. The required CloudFormation stacks are provided as part of this solution.Step 4
The Aurora cluster in Region A of the production account is backed by AWS Backup according to the schedule you provided while deploying the solution. The backups are stored in an AWS Backup vault encrypted with an AWS KMS CMK.Step 5
AWS Backup copies the backups to the cross-account (that is, the target account) and stores it in the backup vault in Account B Region A. The backup vault is encrypted using a CMK created by CloudFormation.Step 6
Once the cross-account backup copy is complete, an EventBridge rule in the source account forwards a “backup copy complete” notification to the target account event bus (Account B Region A).Step 7
An EventBridge rule in the target account in Region A identifies the notification as an incoming event.Step 8
Once the event is received in the target account, the EventBridge rule invokes a Lambda function to finally copy the backup to the desired destination (Account B Region B) and store it in the AWS Backup vault in Region B.Step 9
The backup of your Aurora cluster is now available in the target account in Region B and is stored in the AWS Backup vault of Region B. The backup vault is encrypted with an AWS KMS CMK. This backup can be used to restore the Aurora database.Step 1
A preexisting organizational structure within AWS Organizations is necessary to establish cross-account AWS Backup between two accounts: Account A, which serves as the production or “source” account, and Account B, which is the central backup or “target” account. Notably, this Guidance provides the flexibility to include multiple target accounts.Step 2
An existing Aurora cluster in the source account is encrypted using a CMK that is shared across the source and target accounts. The cluster should also be tagged appropriately so that the solution can identify the desired resources for backup.Step 3
CloudFormation is used to deploy the solution resources in your source and target AWS accounts and Regions. The required CloudFormation stacks are provided as part of this solution.Step 4
The Aurora cluster in Region A of the production account is backed by AWS Backup according to the schedule you provided while deploying the solution. The backups are stored in an AWS Backup vault encrypted with an AWS KMS CMK.Step 5
AWS Backup copies the backups to the cross-account (that is, the target account) and stores it in the backup vault in Account B Region A. The backup vault is encrypted using a CMK created by CloudFormation.Step 6
Once the cross-account backup copy is complete, an EventBridge rule in the source account forwards a “backup copy complete” notification to the target account event bus (Account B Region A).Step 7
An EventBridge rule in the target account in Region A identifies the notification as an incoming event.Step 8
Once the event is received in the target account, the EventBridge rule invokes a Lambda function to finally copy the backup to the desired destination (Account B Region B) and store it in the AWS Backup vault in Region B.Step 9
The backup of your Aurora cluster is now available in the target account in Region B and is stored in the AWS Backup vault of Region B. The backup vault is encrypted with an AWS KMS CMK. This backup can be used to restore the Aurora database.
Well-Architected Pillars
The AWS Well-Architected Framework helps you understand the pros and cons of the decisions you make when building systems in the cloud. The six pillars of the Framework allow you to learn architectural best practices for designing and operating reliable, secure, efficient, cost-effective, and sustainable systems. Using the AWS Well-Architected Tool, available at no charge in the AWS Management Console, you can review your workloads against these best practices by answering a set of questions for each pillar.
The architecture diagram above is an example of a Solution created with Well-Architected best practices in mind. To be fully Well-Architected, you should follow as many Well-Architected best practices as possible.
-
Operational ExcellenceRead the Operational Excellence whitepaper
Aurora enables you to customize DR solutions based on your RPO and RTO needs to uphold operational continuity during disaster events. CloudWatch and AWS CloudTrail aid in tracking and reviewing logs and information. By contributing to operational visibility, these services enable quick and effective error review and incident response.
-
SecurityRead the Security whitepaper
This Guidance uses AWS Identity and Access Management (IAM) to enforce the least-privilege model, limiting access to resources. Private resources, protected by IAM identity-based policies, offer heightened security. Additionally, it uses AWS-managed roles in CloudFormation to control access. AWS KMS provides default encryption and the option to use custom keys to safeguard data. Encrypted DB clusters in Aurora offer an additional layer of data protection by encrypting underlying storage, backups, replicas, and snapshots, helping you meet compliance requirements.
-
ReliabilityRead the Reliability whitepaper
Aurora supports data resilience by using replication across multiple AZs to maintain high availability. Amazon Simple Storage Service (Amazon S3) offers durable storage for critical data, like Aurora snapshots and AWS Backup data. CloudFormation automates resource deployment, as well as rollbacks upon failures. CloudWatch dashboards and Amazon SNS notifications enable monitoring and alerts, and AWS Backup facilitates backup and restore operations for Aurora databases, all contributing to a highly reliable architecture.
-
Performance EfficiencyRead the Performance Efficiency whitepaper
This Guidance uses services selected to enhance performance. Aurora offers low-latency, storage-based replication, and Aurora global databases provide cross-Region replication, helping you minimize the impact on workload performance while maintaining data availability in the event of a failure. Additionally, CloudFormation enables you to customize values to meet service-level agreements and RPO and RTO requirements. Finally, AWS Backup uses Lambda and EventBridge for scalable backup frequency that you can optimize based on your business requirements.
-
Cost OptimizationRead the Cost Optimization whitepaper
Aurora global databases and AWS Backup offer a pay-as-you-go model that helps you avoid maintenance overhead. You can also choose a headless configuration for Aurora global databases, reducing costs to storage and replicated I/O. Additionally, AWS Backup lets you adjust configurations, such as for retention periods, to optimize costs based on your recovery objectives. As a result of using these services, you can reduce unnecessary expenses while maintaining data integrity and availability.
-
SustainabilityRead the Sustainability whitepaper
The services in this Guidance contribute to sustainability by scaling resources based on workload demands. Aurora enables dynamic resizing of storage space to achieve optimal resource utilization and minimize unnecessary consumption. Aurora global databases replicate these dynamic changes across Regions to maintain consistency. Additionally, AWS Backup offers incremental and continuous backups, reducing data redundancy and optimizing backup efficiency. By using this Guidance with Aurora serverless v2 clusters, you can enhance capacity adjustments, aligning resources with application needs and minimizing waste.
