This Guidance provides the essential data foundation for empowering customers to build data and analytics solutions. It shows how to integrate data from SAP ERP source systems and AWS in real-time or batch mode, with change data capture, using AWS services, SAP products, and AWS Partner Solutions. This Guidance includes an overview reference architecture showing how to ingest SAP systems to AWS in addition to five detailed architectural patterns that complement SAP-supported mechanisms (such as OData, ODP, SLT, and BTP) using AWS services, SAP products, and AWS Partner Solutions.

Please note: [Disclaimer]

Architecture Diagram

Download the architecture diagram PDF

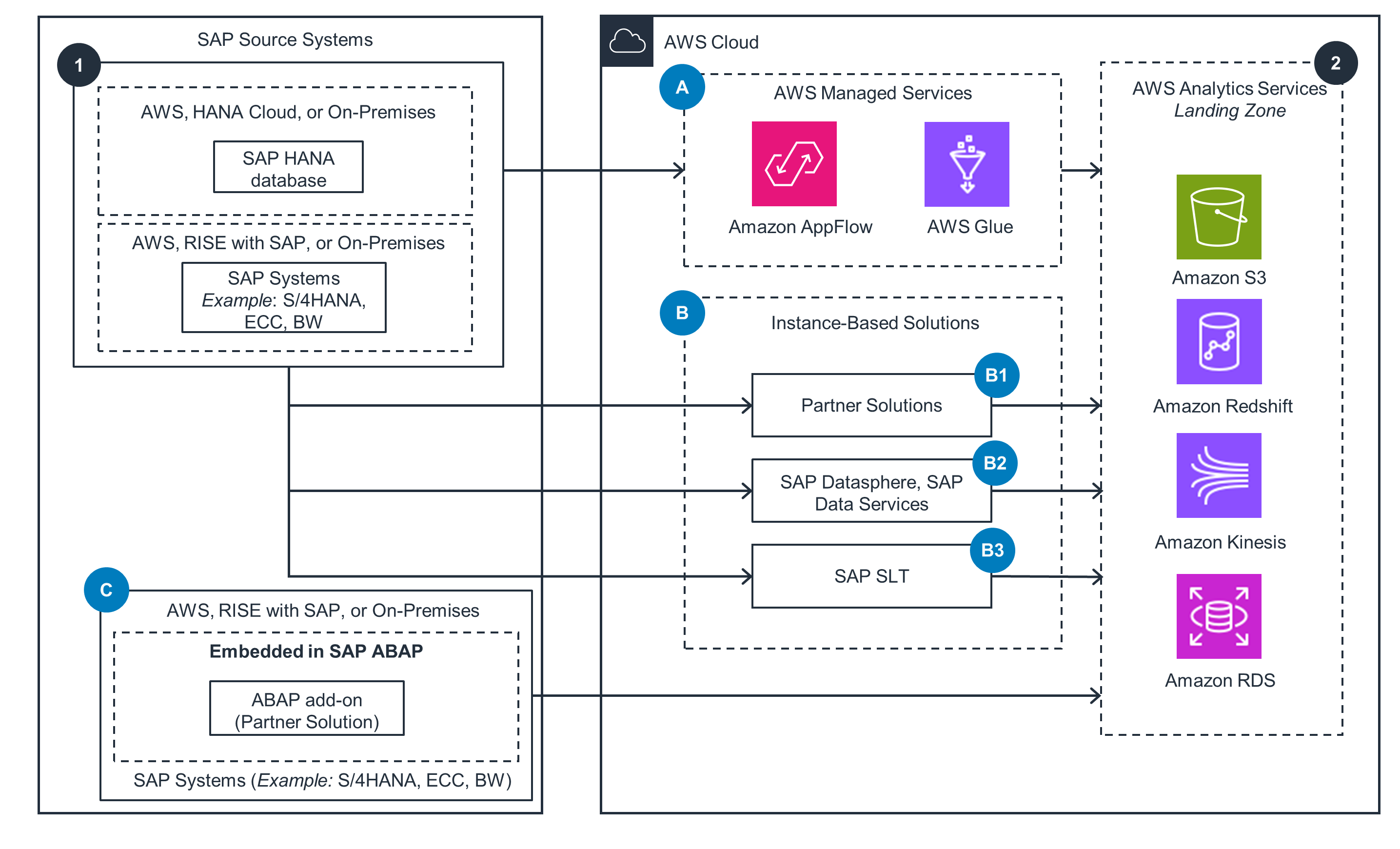

Overview of Architecture Patterns

This architecture diagram shows the pattern options for ingesting SAP systems to AWS. For detailed architecture patterns, open the other tabs.

Well-Architected Pillars

The AWS Well-Architected Framework helps you understand the pros and cons of the decisions you make when building systems in the cloud. The six pillars of the Framework allow you to learn architectural best practices for designing and operating reliable, secure, efficient, cost-effective, and sustainable systems. Using the AWS Well-Architected Tool, available at no charge in the AWS Management Console, you can review your workloads against these best practices by answering a set of questions for each pillar.

The architecture diagram above is an example of a Solution created with Well-Architected best practices in mind. To be fully Well-Architected, you should follow as many Well-Architected best practices as possible.

  • AWS CloudFormation automates the deployment process, while CloudWatch provides observability, tracking, and tracing capabilities. The entire solution can be deployed using CloudFormation, which helps automate deployments across development, quality assurance, and production accounts. This automation can be integrated into your development pipeline, enabling iterative development and consistent deployments across your SAP landscape.

    Read the Operational Excellence whitepaper
  • IAM secures AWS Glue and Amazon AppFlow through permission controls and authentication. These managed services access only specified data. Amazon AppFlow facilitates access to SAP workloads. Data is encrypted in transit and at rest. AWS CloudTrail logs API calls for auditing. S3 buckets and cross-region replication can store data. For enhanced security, run Amazon AppFlow over AWS PrivateLink with Elastic Load Balancing and SSL termination using AWS Certificate Manager.

    Read the Security whitepaper
  • Amazon AppFlow and AWS Glue can reliably move large volumes of data without breaking it down into batches. Amazon S3 provides industry-leading scalability, data availability, security, and performance for SAP data export and import. PrivateLink is a regional service, and as part of the Amazon AppFlow setup using PrivateLink, you will set up at least 50 percent of Availability Zones in the Region (minimum two Availability Zones per Region), providing an additional level of redundancy for ELB.

    Read the Reliability whitepaper
  • The SAP operational data provisioning framework captures changed data. Parallelization features in Amazon AppFlow and AWS Partner Solutions like BryteFlow and SNP enable customers to choose the number of parallel processes to run in the background, parallelizing large data volumes. Amazon S3 offers improved throughput with multi-part uploads through supported data integration mechanisms. The parallelization capabilities and seamless integration with Amazon S3 allow for efficient and scalable data ingestion from SAP systems into AWS.

    Read the Performance Efficiency whitepaper
  • By using serverless technologies like Amazon AppFlow or AWS Glue and Amazon EC2 auto scaling, you only pay for the resources you consume. To optimize costs further, extract only the required business data groups by leveraging semantic data models (for example, BW extractors or CDS views). Minimize the number of flows based on your reporting granularity needs. Implement housekeeping by setting up data tiering or deletion in Amazon S3 for old or unwanted data.

    Read the Cost Optimization whitepaper
  • Data extraction workloads can be scheduled or invoked in real-time, eliminating the need for underlying infrastructure to run continuously. Using serverless and auto-scaling services is a sustainable approach for data extraction workloads, as these components activate only when needed. By leveraging managed services and dynamic scaling, you minimize the environmental impact of backend services. Adopt new options for Amazon AppFlow as they become available to optimize the volume and frequency of extraction.

    Read the Sustainability whitepaper

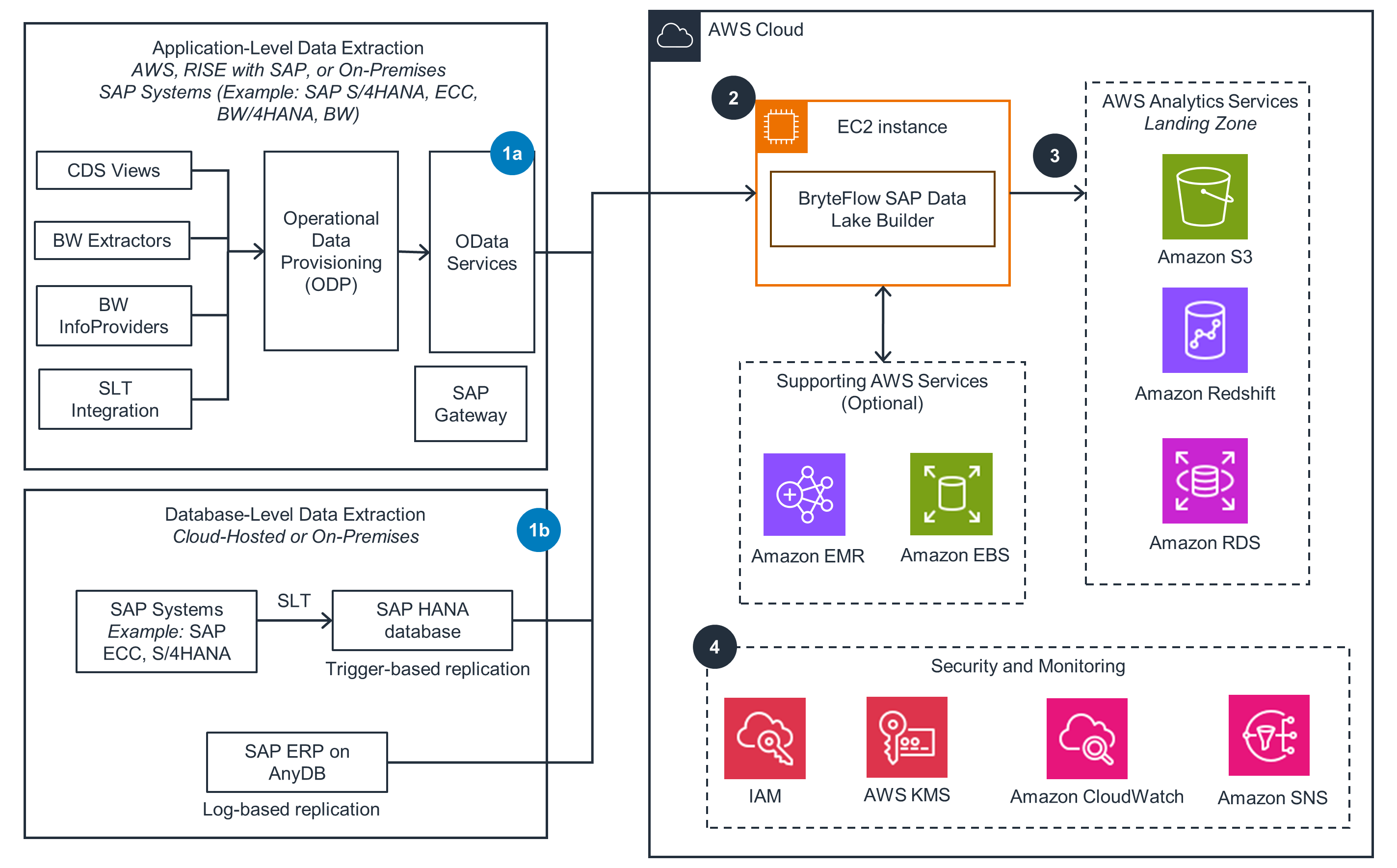

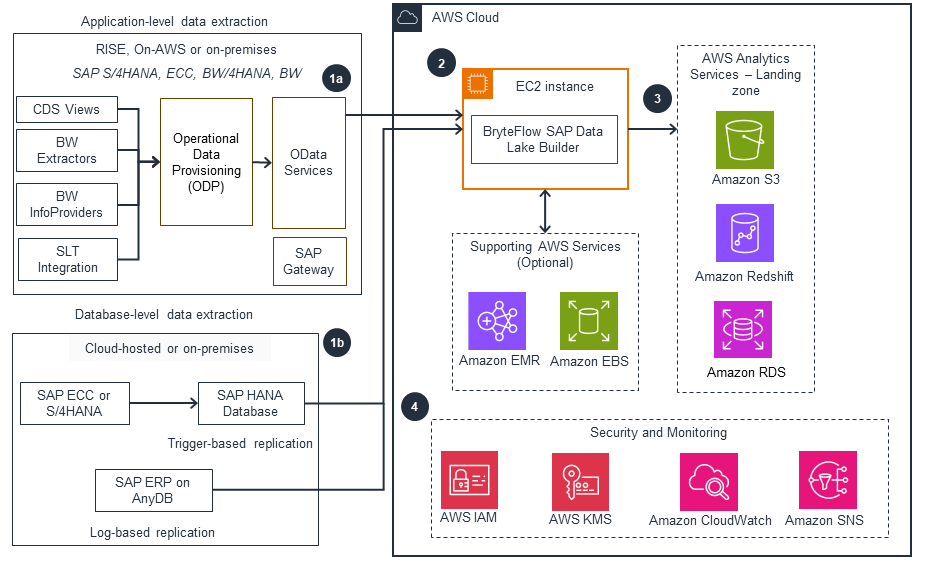

Replicate SAP to AWS in Real-Time with Business Logic Intact Using BryteFlow

This blog post demonstrates how to extract and integrate SAP data on AWS for use cases like analytics, reporting, artificial intelligence (AI), machine learning (ML), and Internet of Things (IoT) in real-time, using the BryteFlow SAP Data Lake Builder on AWS.


The sample code; software libraries; command line tools; proofs of concept; templates; or other related technology (including any of the foregoing that are provided by our personnel) is provided to you as AWS Content under the AWS Customer Agreement, or the relevant written agreement between you and AWS (whichever applies). You should not use this AWS Content in your production accounts, or on production or other critical data. You are responsible for testing, securing, and optimizing the AWS Content, such as sample code, as appropriate for production grade use based on your specific quality control practices and standards. Deploying AWS Content may incur AWS charges for creating or using AWS chargeable resources, such as running Amazon EC2 instances or using Amazon S3 storage.

References to third-party services or organizations in this Guidance do not imply an endorsement, sponsorship, or affiliation between Amazon or AWS and the third party. Guidance from AWS is a technical starting point, and you can customize your integration with third-party services when you deploy the architecture.
