Introduction

AWS CloudFormation StackSets enable you to deploy CloudFormation stacks across multiple AWS accounts and regions with a single operation, providing centralized management of infrastructure at scale through AWS Organizations integration. In enterprise environments, multiple StackSet often need to deploy in a specific order. For example, networking infrastructure must be ready before applications can deploy successfully.

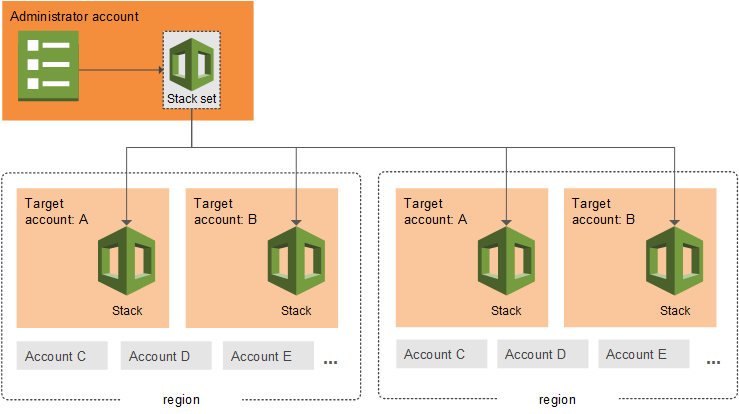

Figure 1: Example of a multi-region AWS CloudFormation StackSet architecture with an administrative account and target accounts

Previously, when multiple StackSets had auto-deployment enabled, they operated independently without coordination. This could cause deployment failures when dependent infrastructure wasn’t ready, forcing customers to implement complex workarounds or disable auto-deployment entirely.

We are announcing StackSets dependencies, a new feature that gives you fine-grained control over the deployment order of your auto-deployed StackSets, elegantly solving these orchestration challenges.

Feature Overview

This new feature introduces the ability to define dependencies between StackSets using the new DependsOn parameter in the AutoDeployment configuration. When accounts move between Organizational Units or are added to your organization, StackSets automatically orchestrates deployments according to your defined sequence, ensuring foundational infrastructure deploys before dependent applications.

Key capabilities include:

• Dependency Management: Define up to 10 dependencies per StackSet, with up to 100 dependencies per account. For example, if you have 5 StackSets with 5 dependencies each, you have 25 dependencies counting towards the 100 dependency limit. You can request a limit increase through the service quota console.
• Cycle Detection: Built-in validation prevents circular dependencies with error messages.
• Cross-Region Support: Dependencies work across regions.
• Automatic Cleanup: Dependencies are removed when StackSets are deleted or Organizations are deactivated.

How it works

Let’s walk through this feature with a practical example. Consider an infrastructure setup where you have: A central Infrastructure StackSet that creates IAM roles and networking components and multiple Application StackSets that depend on these foundational resources.

With StackSets dependencies, you can make sure the Infrastructure StackSet completes deployment before any Application StackSets begin, preventing deployment failures due to missing dependencies.

Implementation Scenarios

Let’s explore three common scenarios where StackSets Dependencies provides value:

Scenario 1: Foundation-First Deployment

Use Case: You have a foundational Infrastructure StackSet that creates IAM roles and networking components, and multiple Application StackSets that depend on these resources.

Setup:

• Infrastructure StackSet ARNs (creates IAM roles, VPCs, security groups)
• App1 StackSet (web application requiring IAM roles)
• App2 StackSet (API service requiring networking components)
• No additional permissions are required to use this feature.

Console Experience

The CloudFormation console provides an intuitive interface for managing StackSet dependencies. Log into the AWS console with your credentials, with an IAM user or administrative user, according to your access. Navigate to the Cloudformation service and create a new Stack or add a YAML/JSON template, where you will be configuring dependencies. In the Step 4 of the Create StackSet wizard, you’ll find a new “StackSet dependencies” form field in the Auto-deployment options section. You can use the attribute editor to add StackSet ARNs for dependencies. The console includes input validation for ARN format and helpful alerts about dependency behavior.

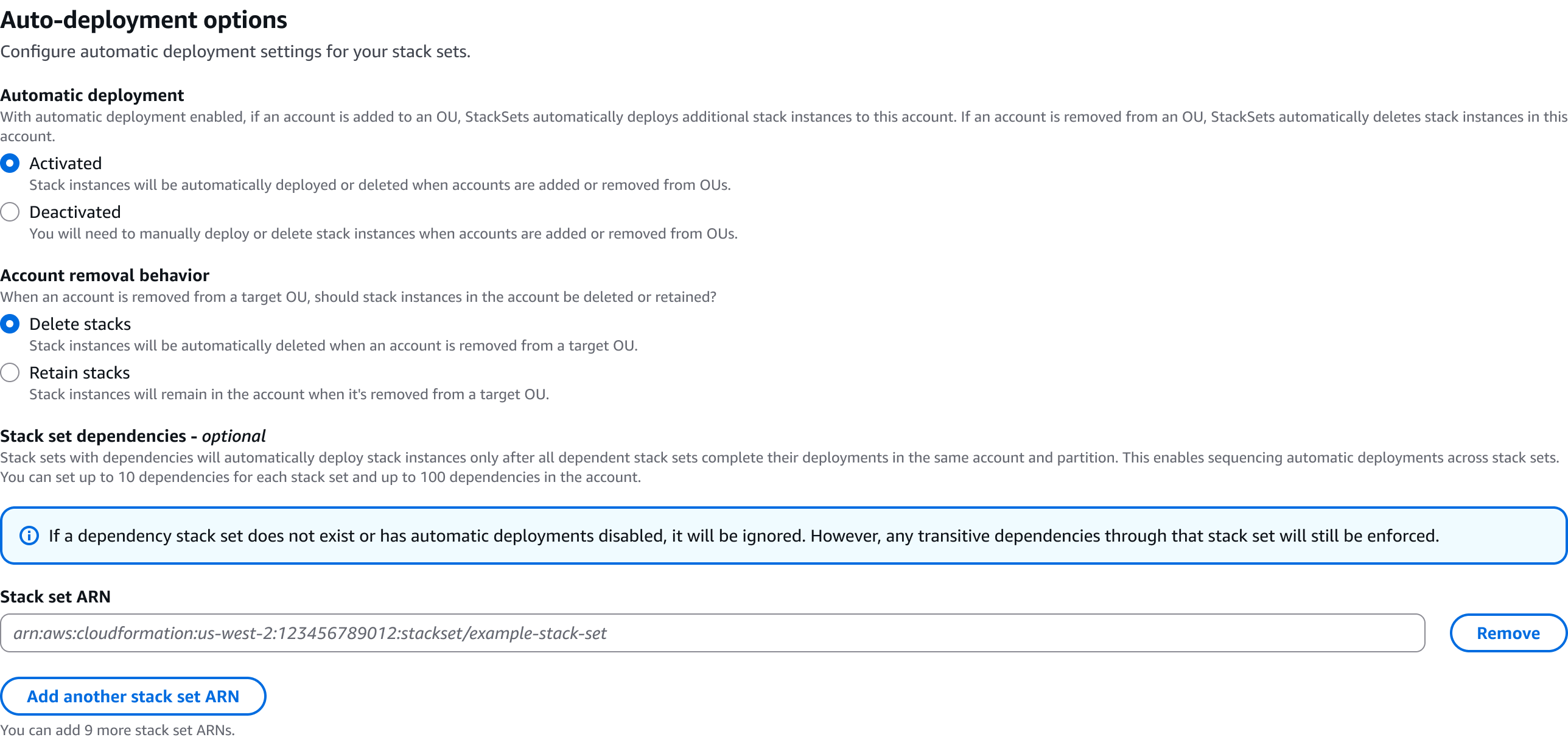

Figure 2: CloudFormation StackSets Console – Auto-deployment options view

AWS CLI Implementation:

1. Create the foundational Infrastructure StackSet:

aws cloudformation create-stack-set \
  --stack-set-name Infrastructure \
  --permission-model SERVICE_MANAGED \
  --auto-deployment Enabled=true,RetainStacksOnAccountRemoval=true \
  --template-body file://infrastructure-template.yaml \
  --region us-east-1

2. Create App1 with dependency on Infrastructure:

aws cloudformation create-stack-set \
  --stack-set-name App1 \
  --permission-model SERVICE_MANAGED \
  --auto-deployment Enabled=true,RetainStacksOnAccountRemoval=true,\
  DependsOn=arn:aws:cloudformation:us-east-1:123456789012:StackSet/Infrastructure:uuid \
  --template-body file://app1-template.yaml \
  --region us-east-1

3. Create App2 with dependency on Infrastructure:

aws cloudformation create-stack-set \
  --stack-set-name App2 \
  --permission-model SERVICE_MANAGED \
  --auto-deployment Enabled=true,RetainStacksOnAccountRemoval=true,DependsOn=arn:aws:cloudformation:us-east-1:123456789012:StackSet/Infrastructure:uuid \
  --template-body file://app2-template.yaml \
  --region us-west-2

Now, when accounts are added to your organization, Infrastructure deploys first, then App1 and App2 deploy in parallel after Infrastructure completes.

Scenario 2: Multi-Dependency Application

Use Case: Your application requires both networking and security components to be ready before deployment.

Setup:

• Networking StackSet (VPCs, subnets, route tables)
• Security StackSet (security groups, NACLs, IAM policies)
• Application StackSet (requires both networking and security)

Implementation:

1. Create Networking StackSet

aws cloudformation create-stack-set \
  --stack-set-name Networking \
  --permission-model SERVICE_MANAGED \
  --auto-deployment Enabled=true,RetainStacksOnAccountRemoval=true \
  --template-body file://networking-template.yaml \
  --region us-east-1

2. Create Security StackSet

aws cloudformation create-stack-set \
  --stack-set-name Security \
  --permission-model SERVICE_MANAGED \
  --auto-deployment Enabled=true,RetainStacksOnAccountRemoval=true \
  --template-body file://security-template.yaml \
  --region us-east-1

3. Create Application with dependencies on both Networking and Security

aws cloudformation create-stack-set \
  --stack-set-name Application \
  --permission-model SERVICE_MANAGED \
  --auto-deployment Enabled=true,RetainStacksOnAccountRemoval=true,DependsOn=arn:aws:cloudformation:us-east-1:123456789012:StackSet/Networking:uuid,arn:aws:cloudformation:us-east-1:123456789012:Stackset/Security:uuid \
  --template-body file://application-template.yaml \
  --region us-east-1

As a result, Networking and Security StackSets deploy in parallel, and Application waits for both to complete before starting.

Scenario 3: Resolving Dependency Conflicts

Use Case: You need to update existing StackSets to fix incorrect dependency relationships.

Problem: You have App1 and App2 StackSets. There is an existing dependency that App2 has on App1, but you realize App1 should depend on App2, not the other way around.

Implementation:

First, try to set App1 to depend on App2 (this will fail due to cycle):

aws cloudformation update-stack-set \
  --stack-set-name App1 \
  --auto-deployment Enabled=true,RetainStacksOnAccountRemoval=true,DependsOn=arn:aws:cloudformation:us-east-1:123456789012:StackSet/App2:uuid \
  --use-previous-template

This action will result in error: “Detected cycle(s) between auto-deployment dependencies”. If dependency validation cannot be completed, you’ll receive appropriate error messages to help troubleshoot configuration issues.

Now let’s remove the existing dependency from App2:

aws cloudformation update-stack-set \
  --stack-set-name App2 \
  --auto-deployment Enabled=true,RetainStacksOnAccountRemoval=true \
  --use-previous-template

Now successfully set App1 to depend on App2:

aws cloudformation update-stack-set \
  --stack-set-name App1 \
  --auto-deployment Enabled=true,RetainStacksOnAccountRemoval=true,DependsOn=arn:aws:cloudformation:us-east-1:123456789012:StackSet/App2:uuid \
  --use-previous-template

This scenario demonstrates cycle detection and how to resolve dependency conflicts.

Getting Started

StackSet dependencies is available now in all AWS Regions where CloudFormation StackSets are supported. To get started:

1. Identify Dependencies: Determine which StackSets should deploy first in your infrastructure.
2. Configure Relationships: Use the CloudFormation console or AWS CLI to set up dependencies using StackSet ARNs.
3. Test Your Sequence: Validate your dependency configuration in a test environment.
4. Monitor Deployments: Use CloudFormation events to track sequenced deployments.

Log into your account in the console and visit the AWS CloudFormation StackSets console or use the AWS CLI/SDK with AWS credentials configured to start controlling StackSet dependencies today.
