Automate OIDC client secret rotation with Application Load Balancer

Elastic Load Balancing simplifies authentication by offloading it to OpenID Connect (OIDC) compatible identity providers (IdPs). This lets builders focus on application logic while using robust identity management.

OIDC client secrets are confidential credentials used in OAuth 2.0 and OIDC protocols for authenticating clients (applications). However, manual management of OIDC client secrets introduces security risks and operational overhead.

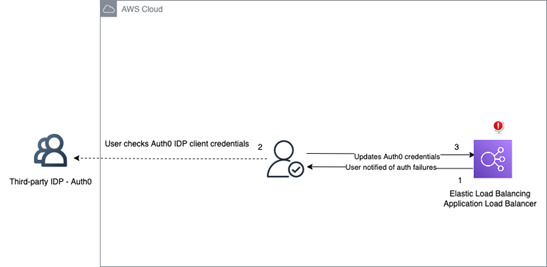

As shown in Figure 1, manual management of OIDC client secrets starts with authentication through a third-party IdP.

Figure 1: Manual management of OIDC client secrets

The risks of manual management of OIDC client secrets include:

• Exposure of plaintext credentials
• The need for manual intervention to adjust the Application Load Balancer (ALB) configuration
• Lack of proactive monitoring of credential changes
• Lack of continued verification of authentication credentials
• Not scalable for ALB configuration with multiple listener rules

In this blog post I show you how to automate OIDC client secret rotation using AWS Secrets Manager, AWS Lambda, and Amazon EventBridge, helping to enhance security and streamline operations. Automating secret rotation is a critical security practice that minimizes the risk of credential compromise and helps facilitate ongoing compliance.

For the ALB-OIDC authentication setup, see Authenticate users using an Application Load Balancer.

Solution overview

This solution provides a flexible framework for automated credential management across various OIDC providers (Auth0 as an example), with a specific implementation demonstrating integration with AWS services. The core architecture supports automated credential rotation, secure secret storage, provider agnostic design, and scalable implementation across different authentication workflows. The key components are:

• Secrets Manager: Securely stores and manages OIDC (Auth0) client credentials.
• Lambda: Executes the secret rotation logic on a scheduled basis.
• Elastic Load Balancing: Offloads authentication using OIDC listener rules.
• EventBridge (scheduled): Triggers the Lambda function according to a defined schedule.
• Custom AWS CloudFormation resource: Automates the entire stack and architecture used in this post.

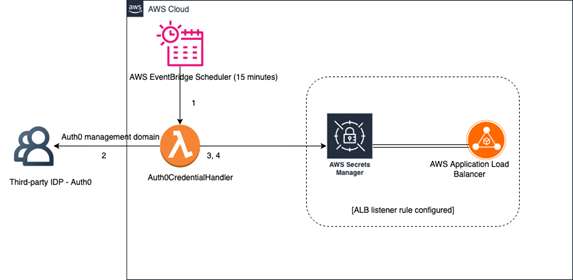

Figure 2: Automated OIDC client secret rotation

The authentication workflow, as shown in Figure 2, is:

1. EventBridge triggers the Auth0CredentialHandler Lambda handler every 15 minutes
2. The Auth0CredentialHandler Lambda handler connects to the Auth0 management domain and gets the current client credentials—auth0_current.
3. The Auth0CredentialHandler Lambda handler fetches the existing credentials auth0/credentials/${Auth0-dev-domain} from Secrets Manager and compares them with the credential auth0_current retrieved in the previous step.
   • If the secret isn’t found, the handler retries three times within a 30-minute period and then logs AWS CloudWatch alarms.
   • Assumes that the secret Amazon Resource Name (ARN) is already present in Secrets Manager.
4. If the credentials are different, Auth0CredentialHandler updates the auth0/credentials/${Auth0-dev-domain} with the new value. If the credentials are the same, no action is taken. CloudWatch alarms are configured to trigger for successful and for failed secret updates.
5. The ALB listener rule is configured to pull client credentials dynamically from the auth0/credentials/${Auth0-dev-domain} resource ARN in Secrets Manager.

Security recommendations

There are several things you can do to improve the security of your authentication system, starting with implementing centralized secret management with encryption enabled for data at rest. You can also configure Lambda functions with least-privilege permissions, limiting access to only required Secrets Manager and ALB listener resources, which can reduce the security blast radius.

Use CloudWatch alarms to monitor key operational events, including secret updates, update failures, and ALB credential issues and use AWS Config to track rule configurations and perform regular security audits.

By creating separate secrets for each ALB listener rule, you can enable granular access control and narrow the scope of permissions, helping to enhance overall system security.

By following these practices, you can establish a robust security framework for your application and provide proper data protection and access management.

Prerequisites

This solution assumes that the following prerequisites are met before beginning implementation:

• An existing ALB configured with a listener and target groups to be used as Listenerarn and targetarn in the CloudFormation template
• An OIDC IdP (for example, Auth0) account and client application
• Auth0 IdP application client credentials stored in Secrets Manager

      {
       "domain": "your-tenant.auth0.com",
       "client_id": "your-client-id",
       "client_secret": "your-client-secret"
       }

Implementation details

Note: This solution demonstrates OIDC client secret rotation using Auth0 as the IdP. While the core principles and architectural patterns are generally applicable, specific implementation details might vary across different identity providers. Users are advised to consult their specific IdP’s documentation for precise configuration steps, API interactions, and AWS compatible authentication mechanisms.

This is an automated, simple and scalable approach using a CloudFormation custom resource to create the resources mentioned in architecture diagram. The CloudFormation template and AWS Lambda implementation are hosted in demo-stack

Core components

In this section, I explain the key components of the solution.

Credential refresh rule

An EventBridge rule is scheduled to trigger the Auth0CredentialHandler Lambda function at 15-minute intervals using the LambdaInvokePermission AWS Identity and Access Management (IAM) role.

Auth0CredentialHandler Lambda function

The Auth0CredentialHandler Lambda function is responsible for securely managing client credentials. It retrieves the Auth0 configuration from the Secrets Manager resource auth0/credentials/${Auth0-dev-domain}, makes API calls to the Auth0 domain to obtain new tokens, and manages the updating of these credentials in Secrets Manager. It requires permissions to interact with Secrets Manager, which are provided through its execution role.

This IAM role used by Lambda has two main permission sets.

• The AWS managed policy AWSLambdaBasicExecutionRole, which allows the Lambda function to create CloudWatch logs.
• A custom policy that grants specific Secrets Manager permissions (GetSecretValue, CreateSecret, UpdateSecret) for secrets under the auth0/credentials/${Auth0-dev-domain} path.

Lambda will retry three times within a 30 minute period. If all attempts fail, then a CloudWatch warning will be logged and create alarms.

  ManagedPolicyArns:
        - arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole
      Policies:
        - PolicyName: SecretsManagerAccess
          PolicyDocument:
            Version: '2012-10-17'
            Statement:
              - Effect: Allow
                Action:
                  - secretsmanager:GetSecretValue
                  - secretsmanager:CreateSecret
                  - secretsmanager:UpdateSecret
                Resource:
                  - !Sub
arn:aws:secretsmanager:${AWS::Region}:${AWS::AccountId}:secret:auth0/*

# Permission for Amazon EventBridge to invoke Lambda

  LambdaInvokePermission:
    Type: AWS::Lambda::Permission
    Properties:
      Action: lambda:InvokeFunction
      FunctionName: !Ref Auth0CredentialHandler
      Principal: events.amazonaws.com
      SourceArn: !GetAtt CredentialRefreshRule.Arn

ALB listener rules

Elastic Load Balancing listener rule resources in CloudFormation are configured to dynamically resolve the client credentials from Secrets Manager and forwards authenticated requests to a specific target group. It integrates with the Auth0 credentials that are regularly refreshed by the Auth0CredentialHandler. This configuration requires read access to Secrets Manager to obtain the Auth0 client credentials for authentication.

# ALB Listener Rules - replace the Oidc config with your endpoints. Only Client credentials are stored in SecretsManager
  ListenerRule1:
    Type: AWS::ElasticLoadBalancingV2::ListenerRule
    Properties:
      ListenerArn: arn:aws:elasticloadbalancing:region:account-id:listener/app/my-load-balancer/1234567890/abcdef
      Priority: 1
      Actions:
        - Type: authenticate-oidc
          AuthenticateOidcConfig:
            ClientId:
'{{resolve:secretsmanager:auth0/credentials/your-tenant.auth0.com:SecretString:client_id}}'
            ClientSecret:
'{{resolve:secretsmanager:auth0/credentials/your-tenant.auth0.com:SecretString:client_secret}}'
            Issuer: https://idp1.example.com
            AuthorizationEndpoint: https://idp1.example.com/auth
            TokenEndpoint: https://idp1.example.com/token
            UserInfoEndpoint: https://idp1.example.com/userinfo
            OnUnauthenticatedRequest: authenticate
        - Type: forward
          TargetGroupArn:
arn:aws:elasticloadbalancing:region:account-id:targetgroup/target-group-1/1234567890abc
      Conditions:
        - Field: path-pattern
          Values:
            - /app1/*


CloudWatch monitoring and alerting

The provided CloudFormation template is configured to establish security monitoring for secret updates. The template provisions alerts for successful and failed secret updates. The template creates CloudWatch metric filters using AWS CloudTrail logs, sets up corresponding alarms with defined thresholds, and establishes an Amazon Simple Notification Service (Amazon SNS) topic for consolidated alert delivery. Upon deployment, this infrastructure-as-code solution enables automated detection and notification of potential security events related to secrets management and unauthorized access attempts.

  # CloudWatch Log Group
  CloudTrailLogGroup:
    Type: AWS::Logs::LogGroup
    Properties:
      LogGroupName: secrets-manager-monitoring
      RetentionInDays: 14

  # Combined Metric Filter for Both Success and Failed Updates
  SecretUpdateMetricFilter:
    Type: AWS::Logs::MetricFilter
    Properties:
      LogGroupName: !Ref CloudTrailLogGroup
      FilterPattern: !Sub '{ $.eventSource = secretsmanager.amazonaws.com && ($.eventName = UpdateSecret || $.eventName = PutSecretValue) && $.responseElements.ARN = "${MyCustomResource.SecretArn}" }'
      MetricTransformations:
        - MetricNamespace: 'SecretsManager/Updates'
          MetricName: 'SecretUpdates'
          MetricValue: '1'
          DefaultValue: 0

  # Combined Alarm for Both Success and Failed Updates
  SecretUpdateAlarm:
    Type: AWS::CloudWatch::Alarm
    Properties:
      AlarmName: !Sub '${AWS::StackName}-secret-update'
      AlarmDescription: !Sub 'Alarm for any updates (success or failure) to secret ${MyCustomResource.SecretArn}'
      MetricName: SecretUpdates
      Namespace: SecretsManager/Updates
      Statistic: Sum
      Period: 300
      EvaluationPeriods: 1
      Threshold: 0
      ComparisonOperator: GreaterThanThreshold
      TreatMissingData: notBreaching
      AlarmActions:
        - !Ref SecretMonitoringTopic

To enhance the reliability of the secret rotation process, implement comprehensive monitoring by creating CloudWatch alarms to detect Lambda rotation failures beyond threshold and high rates of authentication failures, unusual spikes in HTTP 4xx and 5xx error rates from ALB and using CloudTrail to track API calls and configuration changes related to secrets in Secrets Manager and load balancer settings. By implementing these custom alarms alongside standard configurations, potential security incidents and unauthorized access attempts can be quickly detected across your AWS resources. This multi-layered approach helps maintain visibility into the rotation process and helps quickly identify and respond to potential issues.

See Creating CloudWatch alarms for CloudTrail events: examples for detailed guidance.

Deployment process

Deploy the CloudFormation template using the AWS Command Line Interface (AWS CLI) or AWS Management Console. Replace <your-region> with the AWS Region where you want to deploy the solution.

aws cloudformation deploy \
  --template-file template.yaml \
  --stack-name oidc-credential-manager-stack \
  --capabilities CAPABILITY_IAM \
  --region

Note: You can add additional parameters if required by your IdP configuration.

Testing and verification

Disclaimer: It’s recommended to test in a separate non-critical environment to make sure that any customer-specific settings are fully verified before deploying in production environments.

For secret updates, verify that the configured CloudWatch alarms are triggered. For ALB authentication, examine ALB access logs for authentication_success entries and the presence of OIDC identity tokens.

Set up CloudWatch metrics and alarms to monitor the rotation process and authentication success rates.Verify failure cases by manually editing ALB rule configuration to point to a different secret ARN and confirm that the CloudWatch alarm is triggered.The following is an example CloudTrail event for a successful Secrets Manager update:

{
  "source": ["aws.secretsmanager"],
  "detail-type": ["AWS API Call via CloudTrail"],
  "detail": {
    "eventSource": ["secretsmanager.amazonaws.com"],
    "eventName": ["UpdateSecret"],
    "responseElements": {"status": "Success"}
  }
}

The following is an example of ALB access logs:

/aws/alb/<your-alb-name>:
- Look for entries containing:
  "authentication_success"
  "id_token_authentication_successful"
  "x-amzn-oidc-identity"
  HTTP status code 200
- Example log pattern:
  timestamp elb_name client:port target:port request_processing_time
  target_processing_time response_processing_time status_code
  "authentication_success" "x-amzn-oidc-identity: [token]"



Advanced scenarios

In this section, you learn how to reduce the wait time and make the Secrets Manager update nearly synchronous.

• Optimize the Secrets Manager sync: Use EventBridge partner integration to configure EventBridge to invoke the Lambda function based on the events received from third-party IdP. See Receiving events from a SaaS partner with Amazon EventBridge for detailed guidance.
• Rotate the client ID: While rotating the client secret is the most common scenario, there might be instances where rotating the client ID is also necessary. In most identity providers, this means creating a new application client and migrating resources. To do this, the Auth0CredentialHandler requires permissions to modify ALB listener rules (elasticloadbalancing:ModifyRule, elasticloadbalancing:DescribeListeners, elasticloadbalancing:DescribeRules). Client ID rotation can cause temporary authentication disruptions, so thorough testing is crucial. Use AWS Config to monitor ALB rule configurations for unexpected changes. This feature empowers a more comprehensive security posture, although it can increase the complexity of the solution and might require manual intervention.
• Multi-provider strategies: If your organization handles multiple IdPs, implement a centralized rotation framework that abstracts provider-specific nuances, focusing on core security principles outlined in this post. Key considerations include creating provider-agnostic interfaces to support comprehensive monitoring and minimizing configuration overhead.

Conclusion

In this post, you explored a comprehensive approach to automating OIDC client secret rotation using AWS services. By implementing this solution, you can enhance your application’s security, reduce manual management overhead, and maintain a robust authentication strategy.

Consider exploring advanced identity management techniques or integrating multi-factor authentication with your OIDC implementation. If you are new to automated secrets rotation, visit Back to Basics: Secrets Management.

If you have questions or feedback about this post, contact AWS Support.
