AWS Lambda networking over IPv6

IPv4 address exhaustion is a challenge in modern networking, as most IPv4 addresses have been depleted with the growth of the internet. Previously, AWS Lambda only supported inbound and outbound connectivity over IPv4, but it has since introduced support for dual-stack endpoints, so that you can transition from IPv4 to IPv6. AWS continues to add support for IPv6, recently announcing support for inbound IPv6 connectivity over AWS PrivateLink, and dual-stack endpoint support for Amazon API Gateway.

With these IPv6 capabilities now available in Lambda, you should understand how to use them effectively. This post examines the benefits of transitioning Lambda functions to IPv6, provides practical guidance for implementing dual-stack support in your Lambda environment, and considerations for maintaining compatibility with existing systems during migration.

Benefits of transitioning

You can transition to IPv6 to future-proof your overall architecture by preparing ahead of the broader transition to IPv6, and establish compatibility with IPv6 clients or services. IPv6 also eliminates the need for a NAT gateway when the Lambda functions need internet connectivity from a private subnet in your Amazon Virtual Private Cloud (Amazon VPC). Lambda functions can direct traffic to the egress-only internet gateway, potentially eliminating the NAT gateway and its associated charges and streamlining network design. This transition provides cost savings, as egress-only internet gateways are free to use, as opposed to NAT gateways that incurs an hourly charge. Furthermore, IPv6 offers improved network efficiency by eliminating NAT translation overhead, so that Lambda functions can establish direct connections with clients. IPv6 also has more advantages such as native Quality of Service (QoS), which streamlines header structure and reduces packet fragmentations.

Architectural implications

Lambda functions are often deployed inside of a VPC to access VPC resources. For VPC Lambda functions to access the internet, routing traffic through an NAT gateway is a common approach. For Lambda functions with IPv6 support, Lambda functions can now route traffic directly through the egress-only internet gateway, which eliminates the need for a NAT gateway and the extra hop, as shown in the following figures.

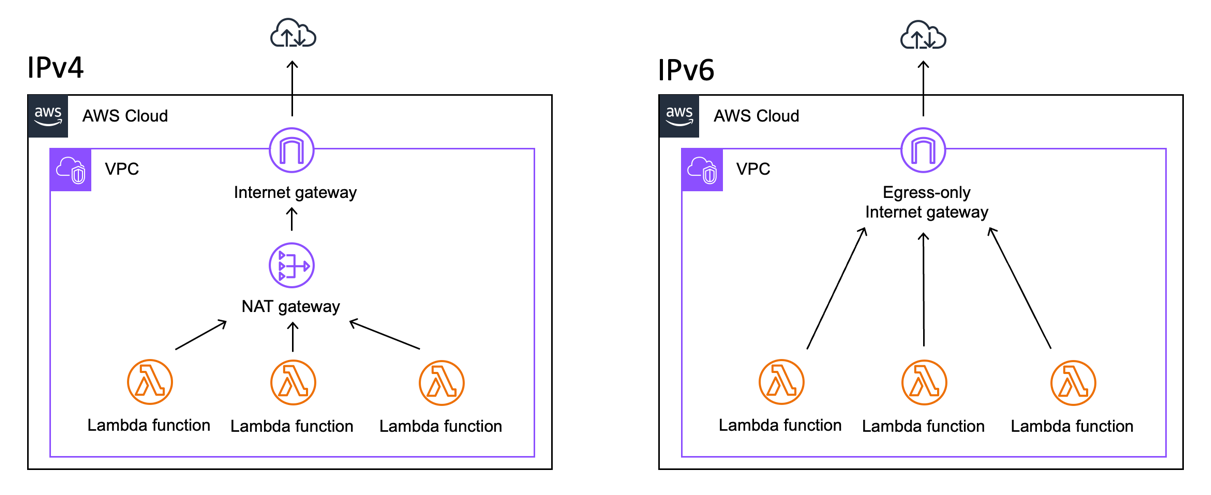

Figure 1. Lambda internet connectivity through a NAT Gateway (IPv4) and Lambda internet connectivity through an egress-only internet gateway (IPv6).

Once the egress-only internet gateway is in place, you need to update the route table to reflect this. If you have used 0.0.0.0/0 as the default route for IPv4 traffic, you should add ::/0 as the default route for IPv6 traffic. The following image shows the updated route table.

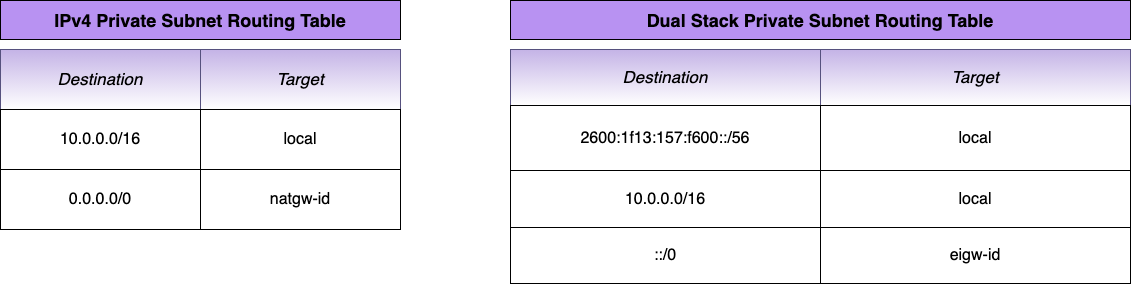

Figure 2. Lambda private subnet routing tables for an NAT Gateway (IPv4) as opposed to a dual-stack including an egress-only internet gateway (IPv6)

If you are using Lambda function URLs, no transition is needed. Lambda function URLs are inherently IPv6-capable and can be accessed by IPv6 clients without needing architectural changes or modifications. This IPv6 compatibility for function URLs operates independently of your Lambda function’s VPC configuration, and clients can reach your Lambda function URLs over IPv6 even when dual-stack is not enabled in your VPC.

For Lambda functions that interact exclusively with AWS services through internal traffic, IPv6 offers limited benefits. For example, in an architecture where a Lambda function processes requests from Amazon API Gateway and queries a database hosted on Amazon Relational Database Service (Amazon RDS), no architectural change is expected. Internal traffic routes using the RDS cluster endpoint and Lambda Amazon Resource Name (ARN), not IP addresses, as shown in the following figure.

Figure 3. A common architecture pattern where Lambda processes events from API Gateway and reads/writes to Amazon RDS. You reference the Lambda function ARN and RDS cluster endpoint instead of IPv4/IPv6 addresses.

Transitioning from IPv4 to IPv6

By default, Lambda functions communicate over IPv4 to their destinations. For Lambda functions to communicate with IPv6 destinations, dual-stack VPC configuration is needed. This allows Lambda functions to communicate over both IPv4 and IPv6.

If your VPC does not have IPv6 support, then you need to first add IPv6 support for your VPC. You need to follow these steps to enable IPv6 traffic for a Lambda function:

1. Assign IPv6 block to VPC: You need to edit the existing VPC CIDRs to add an IPv6 CIDR block. If you select the option of Amazon-provided IPv6 CIDR block, then you are assigned a /56 IPv6 CIDR block from the Amazon pool of IPv6 addresses. You also have the option to assign an Amazon VPC IP Address Manager allocated or your own IPv6 CIDR block.
2. Assign IPv6 block to Subnets: After assigning an IPv6 CIDR block to the VPC, you must manually configure IPv6 CIDR blocks for each existing subnet, with each subnet receiving a portion of the VPC’s IPv6 address space.
3. Update route tables: For your Lambda function’s IPv6 traffic to reach the internet, you need to add a route (::/0) to the egress-only internet gateway.
4. Update security groups: By default, security groups allow all outbound traffic. To restrict outbound IPv6 traffic from your Lambda function, you must remove the default egress rule and add specific restrictive outbound rules. For inbound traffic, security group rules are needed when your Lambda function receives direct network connections, such as traffic through AWS PrivateLink connections.
5. Enable IPv6 dual-stack on the Lambda function: When you assign IPv6 addresses for your Lambda function’s subnet, you can enable IPv6 dual-stack for the Lambda function. Then, Lambda creates new Elastic network interfaces (ENI) with IPv4 and IPv6 protocols with both IPv4 and IPv6 addresses. Although most updates to the Lambda function have zero downtime, enabling dual-stack may cause disruption in connectivity. To prevent downtime during the transition, we recommend using Lambda versions and aliases to implement a blue/green deployment strategy. You can publish your IPv6-enabled Lambda function as a new version while keeping the current version active and serve traffic through the alias. After testing the new IPv6 version, you can update the alias to switch the traffic. This approach provides a rollback capability, and you can revert the alias to point back to the previous version if needed.

When you have completed these steps, your Lambda function can support dual-stack networking and communicate over both IPv4 and IPv6.

Conclusion

In this post, we covered the benefits of transitioning your AWS Lambda functions from IPv4 to IPv6, the architectural implications, and steps for how you could make the transition.We recommend transitioning your Lambda functions to support both IPv4 and IPv6 traffic to gain its benefits. The Lambda IPv6 support helps address IPv4 exhaustion while providing cost savings and network clarification. Once organizations transition to supporting only IPv6 traffic, they can eliminate NAT gateways for Lambda functions needing internet access, thus reducing both costs and architectural complexity. As AWS expands IPv6 support across services, transitioning Lambda functions to dual-stack networking positions organizations for long-term compatibility while delivering immediate operational benefits.

For more information on how to enable IPv6 access for Lambda functions in dual-stack VPC, see the Lambda documentation. For more serverless learning resources, visit Serverless Land.
