Optimize unused capacity with Amazon EC2 interruptible capacity reservations

Organizations running critical workloads on Amazon Elastic Compute Cloud (Amazon EC2) reserve compute capacity using On-Demand Capacity Reservations (ODCR) to have availability when needed. However, reserved capacity can intermittently sit idle during off-peak periods, between deployments, or when workloads scale down. This unused capacity represents a missed opportunity for cost optimization and resource efficiency across the organization.

Amazon EC2 now offers interruptible ODCRs, a new capability that lets you make unused compute capacity temporarily available to other workloads while maintaining control to reclaim it. This feature helps you optimize reservations and reduce costs across your AWS organization.

In this post, we explore how this works through a practical customer scenario.

Customer scenario: Maximizing reservation utilization across teams

Consider a financial services company where the trading platform team maintains a large fleet of r7i.4xlarge instances reserved around-the-clock for critical blue/green deployments. During off-peak trading hours and weekends, a significant portion of this reserved capacity sits idle. Meanwhile, the data analytics team regularly runs batch processing jobs for risk modeling—workloads that could benefit from additional compute capacity but don’t require the same availability guarantees as the trading platform.

Previously, sharing this capacity meant losing control over when it could be reclaimed, creating operational challenges when the trading platform needed to scale up quickly during market volatility. Interruptible ODCRs solve this problem by giving the reservation owner control to reclaim capacity when needed for critical operations.

In the following sections, we walk through the key steps to configure capacity sharing, launch instances, and reclaim capacity. The high-level steps are:

1. Set up capacity sharing
2. Discover available capacity and launch instances
3. Reclaim capacity and handle interruptions

Step 1: Set up capacity sharing

The trading platform team begins by identifying unused capacity patterns through Amazon EC2 Capacity Manager. They determine that approximately 60% of their reserved r7i.4xlarge capacity remains unused during overnight hours and weekends.

Create interruptible ODCR

For prerequisites, see Interruptible Capacity Reservations for capacity owners in the Amazon EC2 User Guide.

To repurpose this idle capacity, the trading platform team creates an interruptible ODCR using the AWS Management Console, SDK, or AWS Command Line Interface (AWS CLI). To use the console, they complete the following steps:

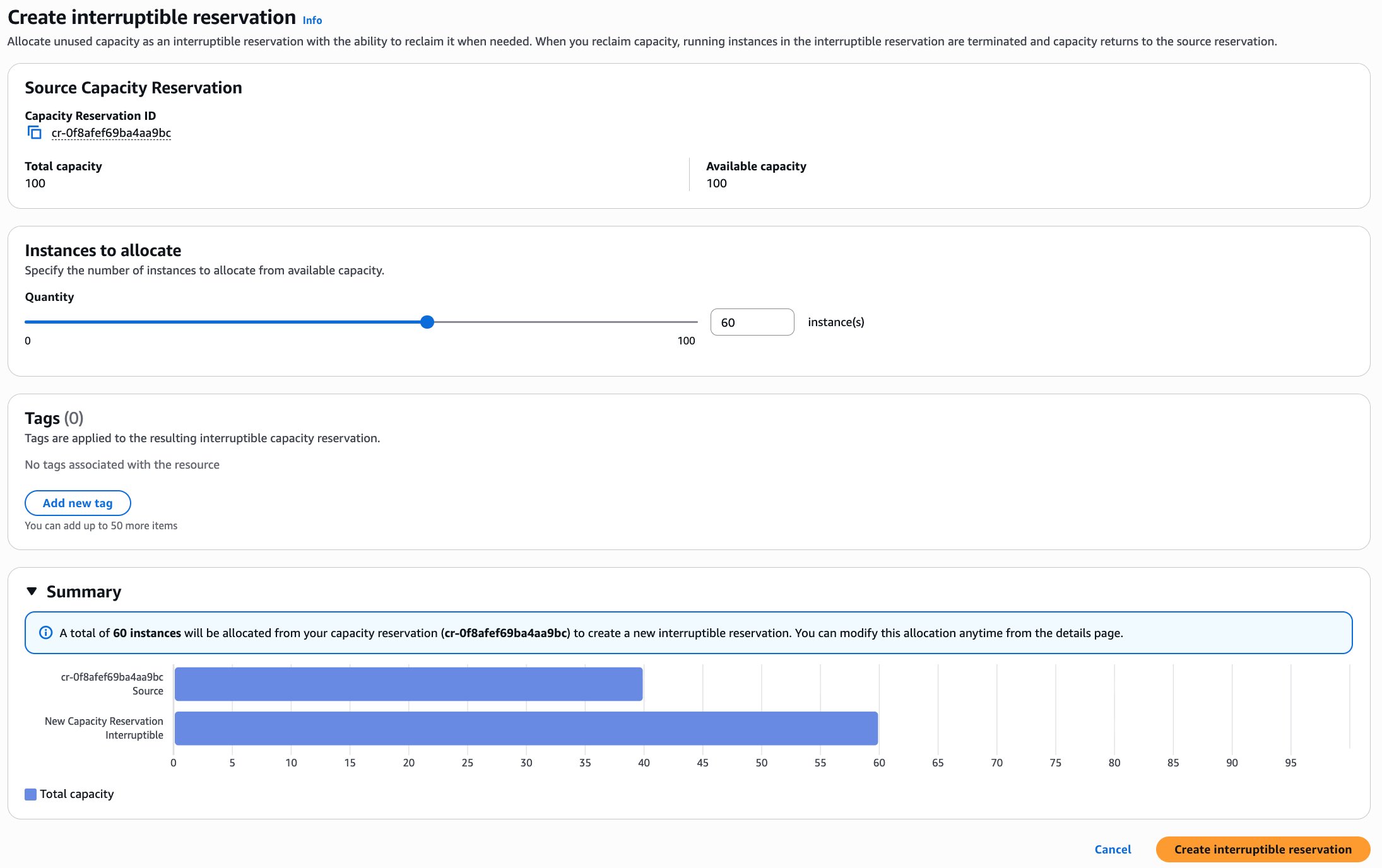

1. On the Amazon EC2 console, choose Capacity Reservations in the navigation pane.
2. Select the source ODCR and choose Create interruptible reservation.
3. For Instances to allocate, enter how many instances to allocate (out of a 100-instance reservation). For this example, we allocate 60 instances.
4. Choose Create interruptible reservation.

This configuration withdraws 60 instances from their original reservation and creates a new ODCR with interruptible configuration. The original reservation now shows 40 instances, and the new interruptible reservation shows 60.

Share resources across the organization

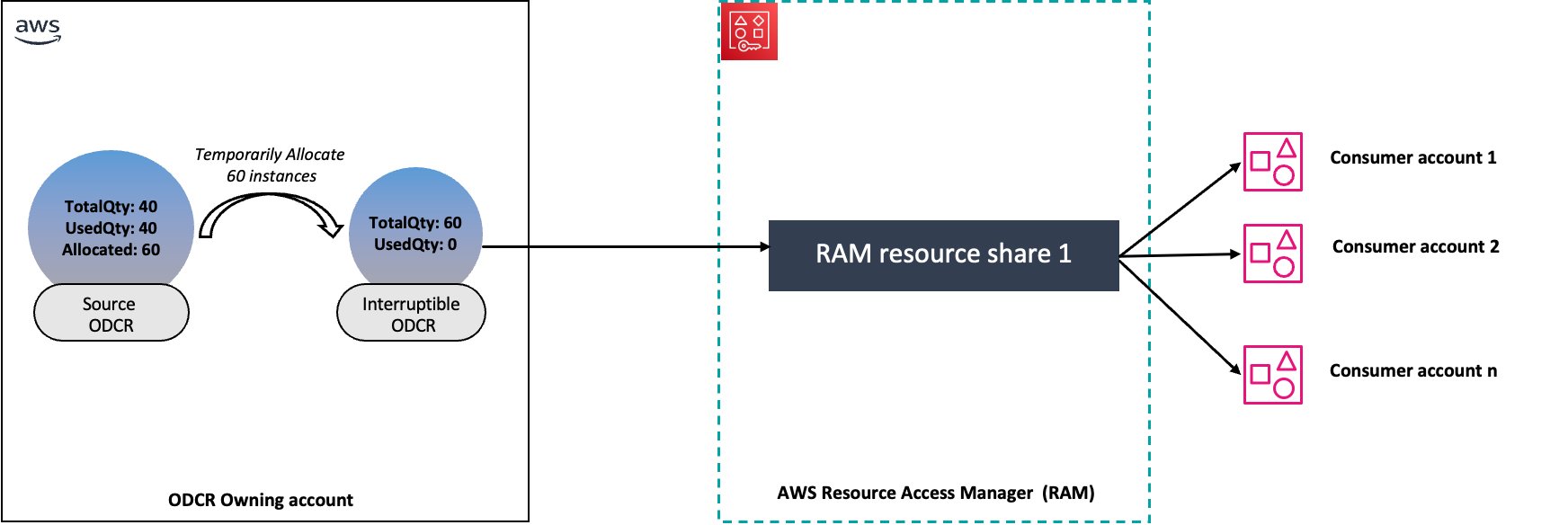

With the interruptible reservation created, the reservation owning team uses AWS Resource Access Manager (AWS RAM)—a service that helps you securely share AWS resources across accounts and organizations—to share the newly created ODCR with additional accounts in their organization. When sharing your ODCR, you specify which consumer account IDs in your organization will get access to the interruptible ODCR. Alternatively, you can share the ODCR with your entire AWS Organization or Organizational Unit (OU). When it’s complete, the specified accounts get access to the interruptible ODCR capacity and establish a setup like the one illustrated in the following diagram.

Sharing with all accounts (at once) within the organization requires organization-wide sharing to be enabled in AWS Organizations setup. If organization-wide sharing is not enabled, a user can still share with individual accounts by enumerating each account.

Step 2: Discover available capacity and launch instances

After the reservation owner (the trading platform team) shares their reservation, the capacity consumer (data analytics team) needs to find the capacity in their account and launch into it. In this section, we walk through the interruptible ODCR discovery and launch process.

Discover available capacity

The data analytics team, running batch processing jobs in a separate AWS account, can now find the shared interruptible capacity in their account using the console, SDK, or AWS CLI. To use the console, they complete the following steps:

1. On the Amazon EC2 console, choose Capacity Reservations in the navigation pane.
2. Choose the ODCR to view its details page.

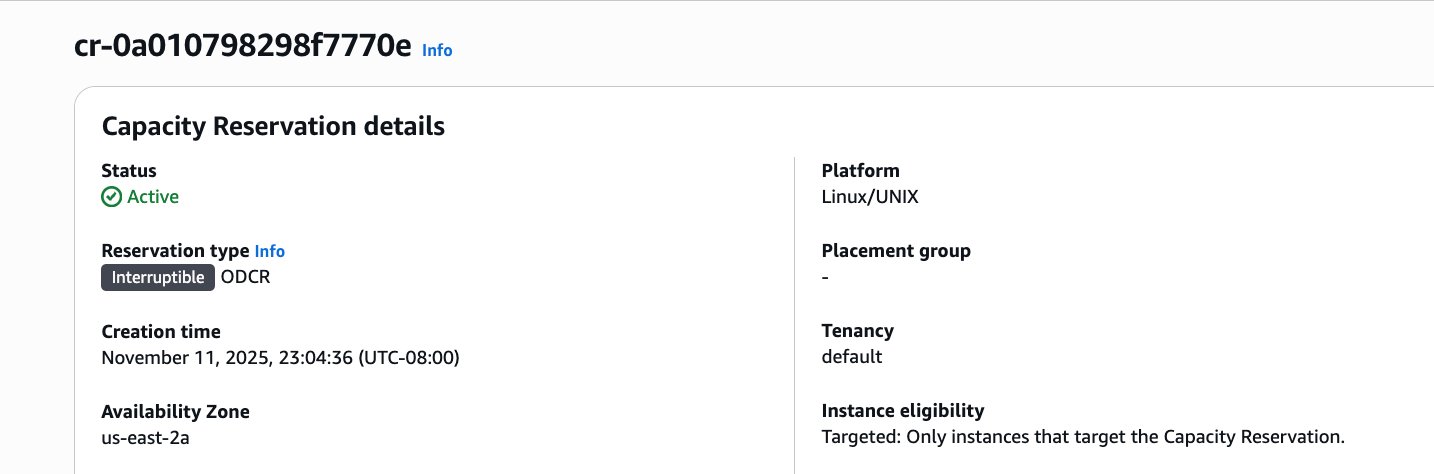

The interruptible reservation appears with a clear indication that it’s interruptible, showing the instance type (r7i.4xlarge), Availability Zone, and available capacity.

Configure Auto Scaling groups for interruptible capacity

To use this capacity for their batch processing workloads, the analytics team creates a new launch template specifically designed for interruptible capacity. The key configuration element is setting the new market-type parameter and targeting the interruptible ODCR.

In the launch template, specify the following:

• Instance type: r7i.4xlarge (matching the shared capacity)
• Capacity reservation specification: Targeted
• Capacity reservation ID: Enter the ID of the shared interruptible ODCR
• Market type: Use the type interruptible-capacity-reservation

Next, create an Auto Scaling group that uses this launch template. The group is configured as follows:

• Minimum size: 0 (to avoid unnecessary costs when capacity isn’t needed)
• Maximum size: 40 (within the available shared capacity)
• Desired capacity: Set based on job queue length

Launch instances into interruptible capacity

When the analytics team’s batch processing jobs trigger scaling events, the Auto Scaling group launches instances that automatically target the shared interruptible ODCR. These instances launch immediately if capacity is available, providing the team with access to reserved capacity for their fault-tolerant workloads. The instances appear on the Amazon EC2 console with their instance lifecycle as interruptible-capacity-reservation and the ODCR ID in which they’re running. This provides clear indication that they’re running on interruptible capacity, helping with monitoring and cost allocation.

Step 3: Reclaim capacity and handle interruptions

In this section, we review how the capacity owner (the trading platform team) can reclaim their capacity when needed for their critical operations and how the capacity consumer can gracefully handle such interruptions.

Trigger reclamation

When market volatility increases and the trading platform needs to scale up quickly, the platform team initiates capacity reclamation through the console, SDK, or AWS CLI. To use the console, they complete the following steps:

1. On the Amazon EC2 console, choose Capacity Reservations in the navigation pane.
2. Choose the ODCR to view its details page.

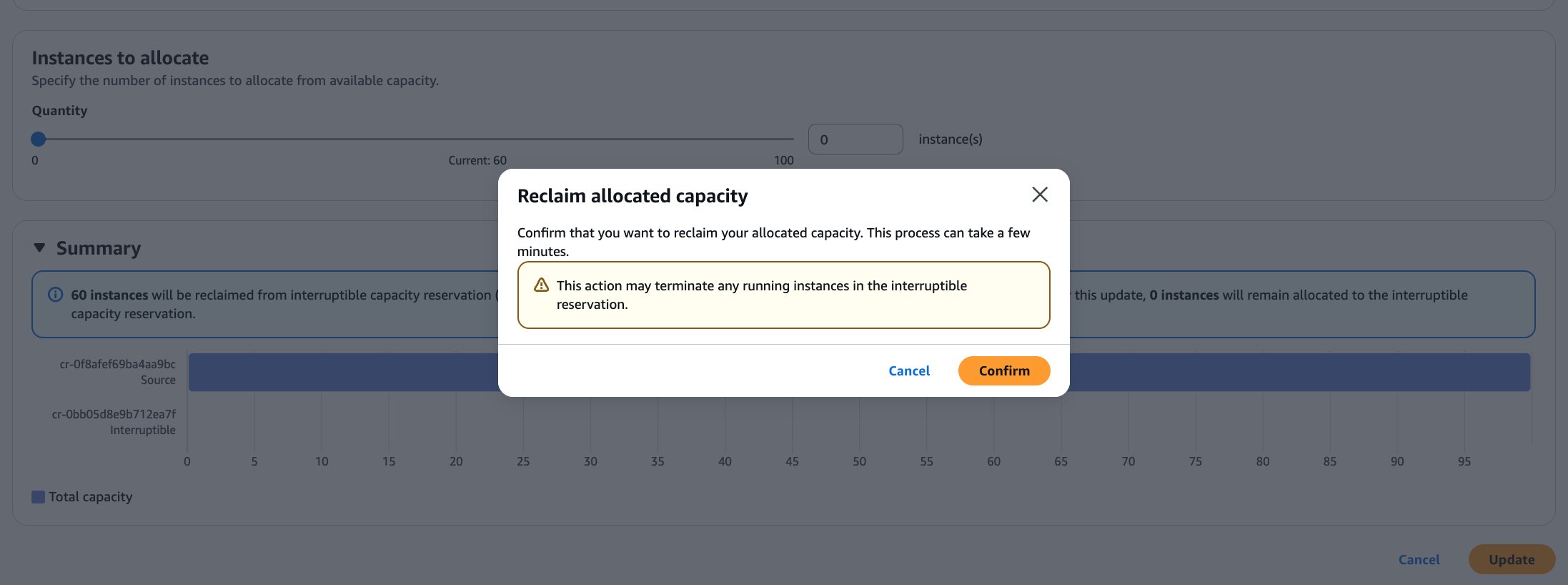

3. Choose Edit Interruptible Allocation.
4. Specify how many instances are needed back (in this case, all 60 instances for maximum trading capacity).
5. Choose Update, then choose Confirm.

The reclamation process can also be automated using AWS Lambda functions triggered by Amazon CloudWatch alarms or scheduled events, providing proactive capacity management based on predictable usage patterns.

Consumer notification and graceful shutdown

After the owner triggers capacity reclamation, consuming instances receive a 2-minute instance interruption warning notice through Amazon EventBridge. The analytics team has configured their batch processing applications to listen for these events. Their applications receive this 2-minute warning and immediately begin checkpointing their current work, saving intermediate results to Amazon Simple Storage Service (Amazon S3), and gracefully shutting down. For EventBridge notification details, refer to the Monitor interruptible Capacity Reservations with EventBridge section in the EC2 Capacity Reservations User Guide.

Automatic capacity restoration to source ODCR

After the 2-minute notice period, Amazon EC2 starts shutting down the consuming instances. After the instances are successfully shut down, Amazon EC2 restores the capacity to the trading platform’s original ODCR. The trading platform can then launch their critical workloads into the same ODCR, resulting in minimal delay for their scaling requirements. The reservation owner can track their capacity reclamation status through the console or API. On the Amazon EC2 console, the ODCR details page shows the current instance allocation, target instance allocation, and request status. When current and target counts match, the status changes to Active, confirming completion.

After the reservation owner requests their capacity back, the capacity reclamation process can take a few minutes, so reservation owners should account for this delay when planning critical activities. This is because Amazon EC2 provides a 2-minute warning to the consumer instances, followed by the instance shutdown period.

Billing and cost considerations

The billing model for interruptible ODCRs follows a clear usage-based approach that aligns costs with consumption:

• Reservation owner (trading platform team) – Pays EC2 On-Demand rates for unused capacity in the interruptible ODCR, just like any standard ODCR. For example, when the analytics team uses 30 out of 60 available instances, the trading platform pays for the remaining 30 unused instances.
• Consumer (analytics team) – Pays EC2 On-Demand rates only for the instances they actually launch and use. For example, when they use 30 instances for 4 hours, they’re charged for 30 × 4 = 120 instance-hours at the standard r7i.4xlarge On-Demand rate.

Conclusion

Amazon EC2 interruptible ODCR helps organizations optimize compute spending while maintaining operational control. Through capacity reclamation mechanisms, teams can achieve better resource utilization without compromising availability guarantees. In this post, we showed how this capability addresses real operational challenges through an example use case—enabling a trading platform to maintain their critical capacity guarantees while helping other teams access high-quality compute resources for their workloads. The predictable interruption model creates a sustainable approach to capacity sharing that benefits the entire organization.

To get started with interruptible capacity reservations, refer to EC2 Capacity Reservations User Guide. To learn more about using EC2 Auto Scaling, refer the Interruptible Capacity Reservations with EC2 Auto Scaling guide. Refer to the AWS RAM User Guide to learn more about sharing resources across your organization and the Amazon EventBridge User Guide to learn more about handling interruption notifications in your applications.
