AI-powered event-driven Amazon EKS AMI updates with GitOps

Keeping Amazon Elastic Kubernetes Service (Amazon EKS) worker nodes updated with the latest Amazon Machine Images (AMIs) is critical for security, performance, and compliance. However, manual AMI updates are time-consuming, error-prone, and can lead to delayed patching of critical vulnerabilities. This post demonstrates an automated solution that combines AI-powered risk analysis with GitOps principles to streamline Amazon EKS AMI updates while maintaining appropriate human oversight through familiar GitHub workflows.

The challenge

Organizations running production EKS clusters face several challenges when managing AMI updates. Teams must regularly check for new EKS-optimized AMI releases manually. Each AMI update requires analysis of CVEs, compatibility issues, and potential breaking changes. Updates need review and approval before deployment to production. Rolling out new AMIs requires careful orchestration to avoid downtime. Additionally, compliance requirements demand detailed records of who approved what and when.

The solution

This solution automates the entire AMI update lifecycle through a streamlined three-phase approach:

1. Detection Phase – Automated twice-daily checks detect new EKS-optimized AMIs.
2. AI Analysis & GitHub PR Phase – Amazon Bedrock analyzes risks and creates Pull Requests for human review.
3. GitOps Deployment Phase – ArgoCD and Karpenter orchestrate zero-downtime rolling updates.

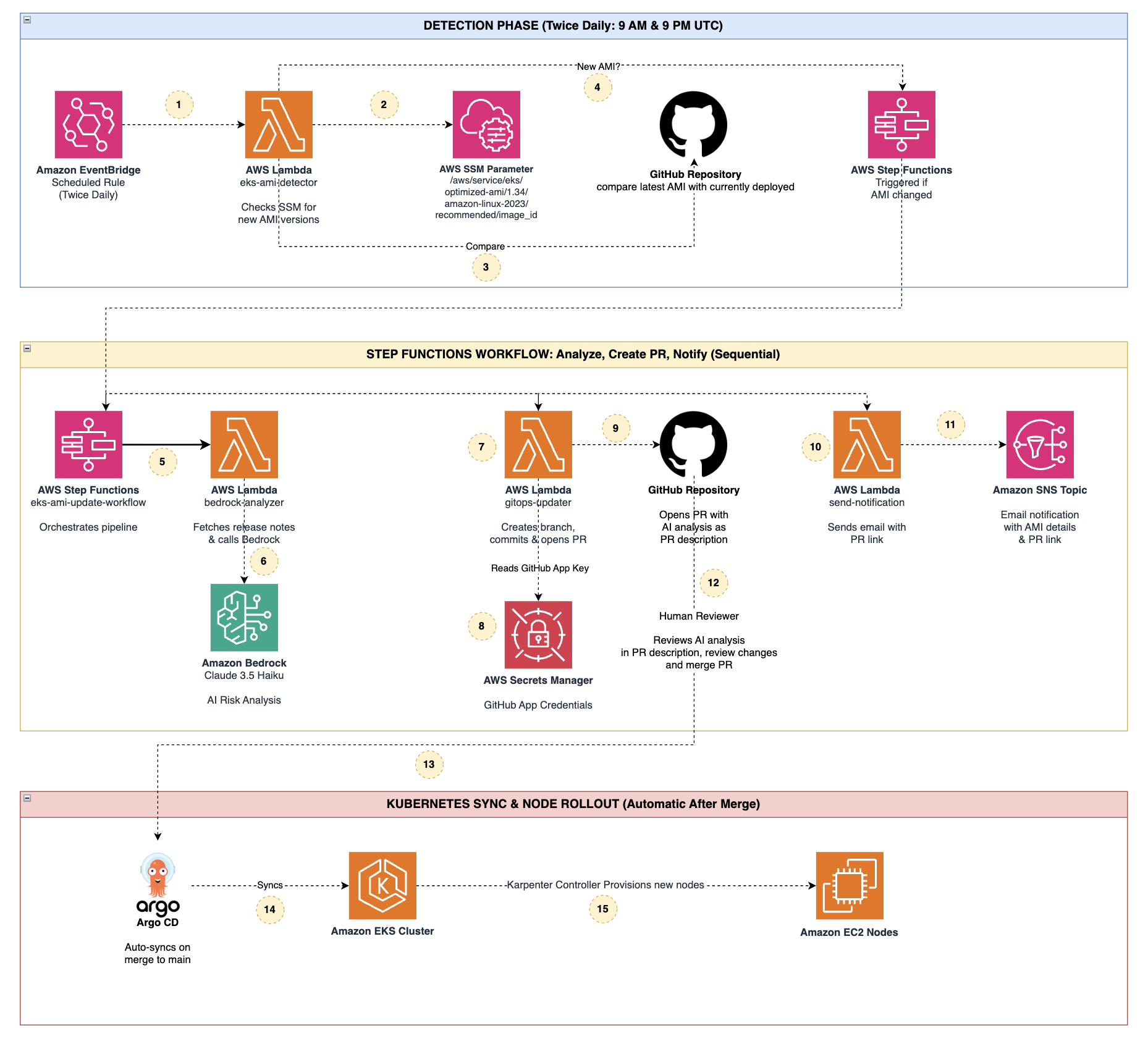

Architecture overview

The solution integrates multiple AWS services with GitOps tooling to create an event-driven, AI-assisted workflow that runs twice daily at 9 AM and 9 PM UTC.

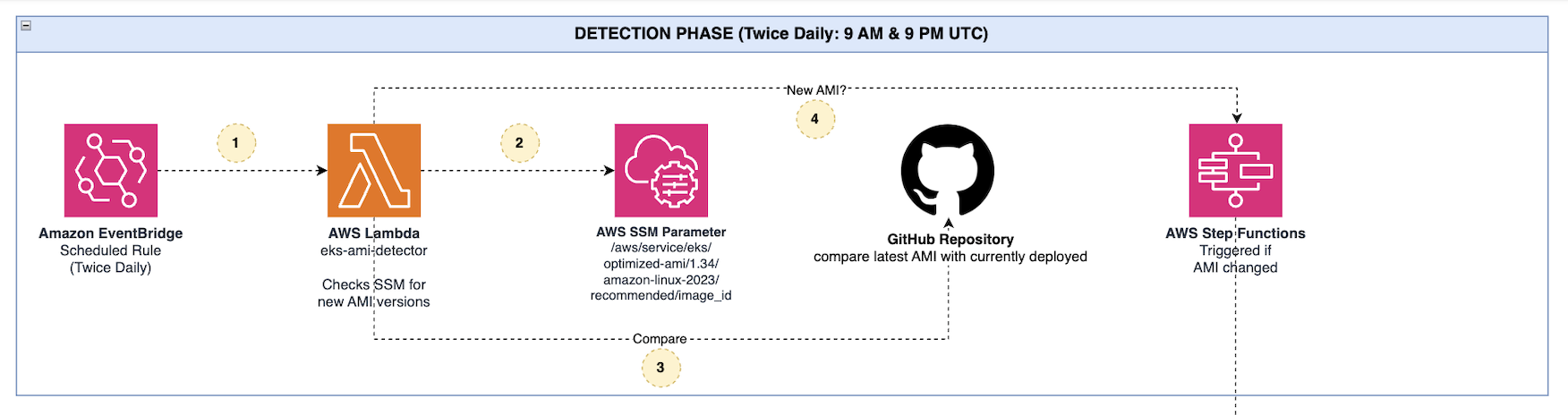

Phase 1: Detection Phase

The detection phase identifies new AMI releases through the following components:

• Amazon EventBridge Scheduled Rule – Triggers the detection AWS Lambda twice daily (9 AM & 9 PM UTC).
• AWS Lambda (eks-ami-detector) – Queries AWS Systems Manager Parameter Store for the latest EKS-optimized AMI ID.
• AWS System Manager Parameter Store – Provides the canonical source for EKS AMI recommendations (/aws/service/eks/optimized-ami/1.34/amazon-linux-2023/recommended/image_id).
• GitHub Repository – Acts as the source of truth for the currently deployed AMI ID. The Lambda compares the latest AMI retrieved from AWS System Manager against the AMI ID stored in the repository to determine if an update is required.
• AWS Step Functions – Triggered when a new AMI version is detected.

When the detector Lambda identifies a version change, it triggers the AWS Step Functions workflow to begin the analysis phase.

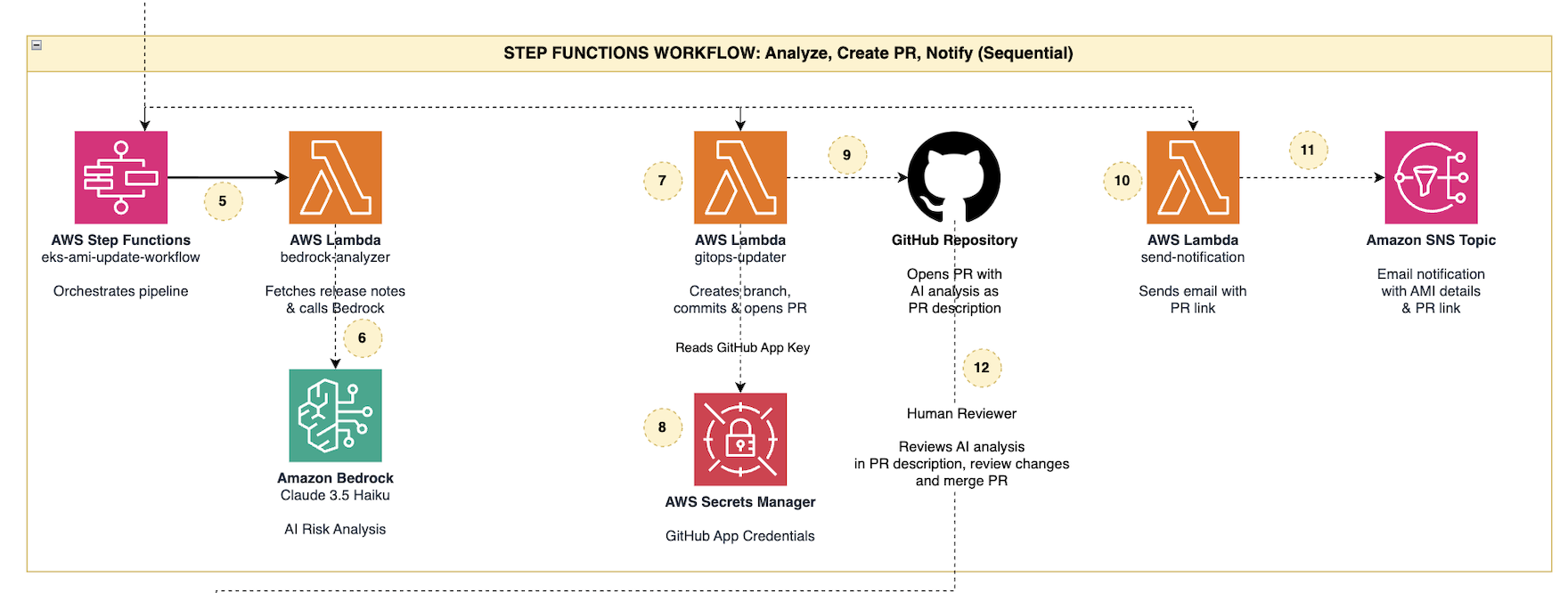

Phase 2: AI Analysis and GitHub PR Phase

This simplified phase uses Amazon Bedrock for intelligent risk analysis and uses GitHub Pull Requests for human approval. The AWS Step Functions workflow orchestrates three sequential Lambda functions:

1. bedrock-analyzer

• Fetches AMI release notes from AWS Systems Manager
• Retrieves GitHub App credentials (App ID, Installation ID, and Private Key) from AWS Secrets Manager
• Invokes Amazon Bedrock (Claude 3.5 Haiku) for AI-powered risk analysis
• Generates a comprehensive report with risk scores, CVE analysis, and recommendations

Here is prompt being used to have Analysis:

prompt = f"""Analyze this Amazon EKS AMI update using the actual release notes below. New AMI ID: {ami_id} Previous AMI ID: {previous_ami} SSM Parameter: {parameter_name} ACTUAL EKS AMI RELEASE NOTES (from github.com/awslabs/amazon-eks-ami/releases): {release_notes} Based on the actual release notes above, provide your analysis in JSON format: {{ "risk_score": 1-10, "recommendation": "APPROVE or REJECT", "summary": "brief one-line summary of actual changes", "pr_description": "a detailed markdown PR description with: actual changes from release notes, CVEs patched, package versions updated, risk assessment, and review guidance" }}"""

2. gitops-updater

• Authenticates with GitHub using App credentials retrieved from AWS Secrets Manager
• Creates a new branch in the GitHub repository
• Updates the Karpenter EC2NodeClass configuration with the new AMI ID
• Commits changes with rich metadata (AMI ID, timestamp, analysis summary)
• Opens a Pull Request with the complete AI analysis embedded in the PR description

3. send-notification

• Sends an email notification using Amazon Simple Notification Service (Amazon SNS)
• Includes the PR link and AMI details
• Alerts the review team to examine the proposed changes

Human Review Process

The human reviewer examines the AI-generated risk analysis directly in the GitHub PR description, reviews the proposed configuration changes, and makes an informed decision to:

• Approve: Merge the PR to trigger automated deployment
• Reject: Close the PR to prevent the update

This approach uses familiar GitHub workflows while maintaining a complete audit trail through Git history.

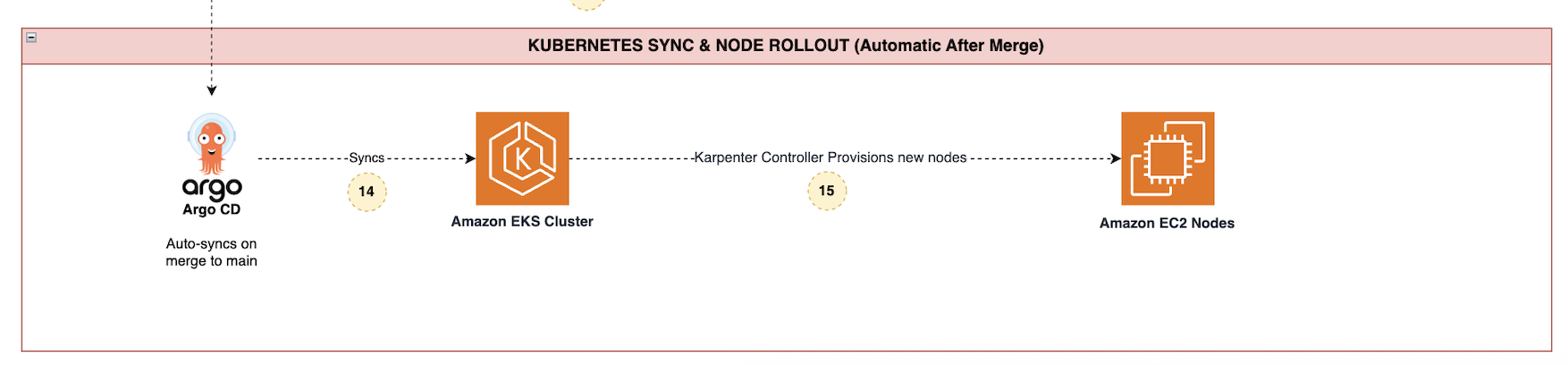

Phase 3: Kubernetes Sync & Node Rollout

After the PR is merged to the main branch, the deployment phase executes automatically:

ArgoCD Sync

• Detects the Git commit on the main branch
• Automatically syncs the updated EC2NodeClass manifest to the EKS cluster

Karpenter Orchestration

• Observes the EC2NodeClass update with the new AMI ID
• Provisions new EC2 nodes with the updated AMI
• Gracefully drains old nodes to maintain workload availability
• Completes the rolling update with zero downtime

Implementation guide

Prerequisites

Before deploying this solution, ensure that you have:

• An existing Amazon EKS cluster (version 1.34 or later)
• Karpenter installed and configured in your cluster
• ArgoCD installed with auto-sync enabled
• A GitHub repository for storing Karpenter configurations
• GitHub App installed on your repository with required permissions (App ID, Installation ID, and Private Key)
• AWS Command Line Interface (AWS CLI) and kubectl configured
• Amazon Bedrock access enabled in your AWS account

Important: Before proceeding, follow the README instructions in the Git repository to set up your environment and deploy the Karpenter EC2NodeClass configuration. First-time users must have the EC2NodeClass already deployed in their GitHub repository before running this solution.

Deployment steps

Complete the following steps to deploy the solution.

1. Fork the repository before deploying the solution. You need your own copy of the repository with write access to configure the required GitHub App credentials. To do so, navigate to the aws-samples GitHub repository and fork the repository to your personal or organizational GitHub account. Follow the README instructions in the repository to set up your environment, install the GitHub App on your forked repository, and deploy the Karpenter EC2NodeClass configuration before proceeding.
2. After you fork the repository, clone your copy locally using the following command:

git clone https://github.com/<your-github-username>/<repository-name>.git

cd <repository-name>

3. Next, deploy the AWS CloudFormation stack (takes approximately 2–3 minutes).

aws cloudformation create-stack \
--stack-name eks-ami-update \
--template-body file://cloudformation-template.yaml \
--capabilities CAPABILITY_NAMED_IAM \
--parameters \
ParameterKey=NotificationEmail,ParameterValue=your-email@example.com \
ParameterKey=GitHubAppId,ParameterValue=<your-github-appid>\
ParameterKey=GitHubAppInstallationId,ParameterValue=<your-githubapp-installationid>\
ParameterKey=GitHubAppPrivateKey,ParameterValue=$(base64 -i your-app.private-key.pem | tr -d '\n') \
ParameterKey=GitHubRepoOwner,ParameterValue=<your-github-org> \
ParameterKey=GitHubRepoName,ParameterValue=<your-repo-name> \
ParameterKey=GitHubFilePath,ParameterValue=karpenter-configs/clusters/your-cluster/nodeclass.yaml \
ParameterKey=GitHubBranch,ParameterValue=main \
ParameterKey=EKSVersion,ParameterValue=1.34

4. Confirm the SNS email subscription sent to your email address

CloudFormation resources created

The deployment creates the following AWS resources:

Solution testing:

To test the solution, you can trigger the workflow manually without waiting for an AMI release. Run the following command to invoke the detector Lambda function:

i. Invoke the detector Lambda to trigger the full workflow. This command manually triggers the AMI detection process:

aws lambda invoke \
--function-name eks-ami-detector \
--payload '{}' \
--cli-binary-format raw-in-base64-out \
/tmp/response.json && cat /tmp/response.json

ii. Review and Merge the PR

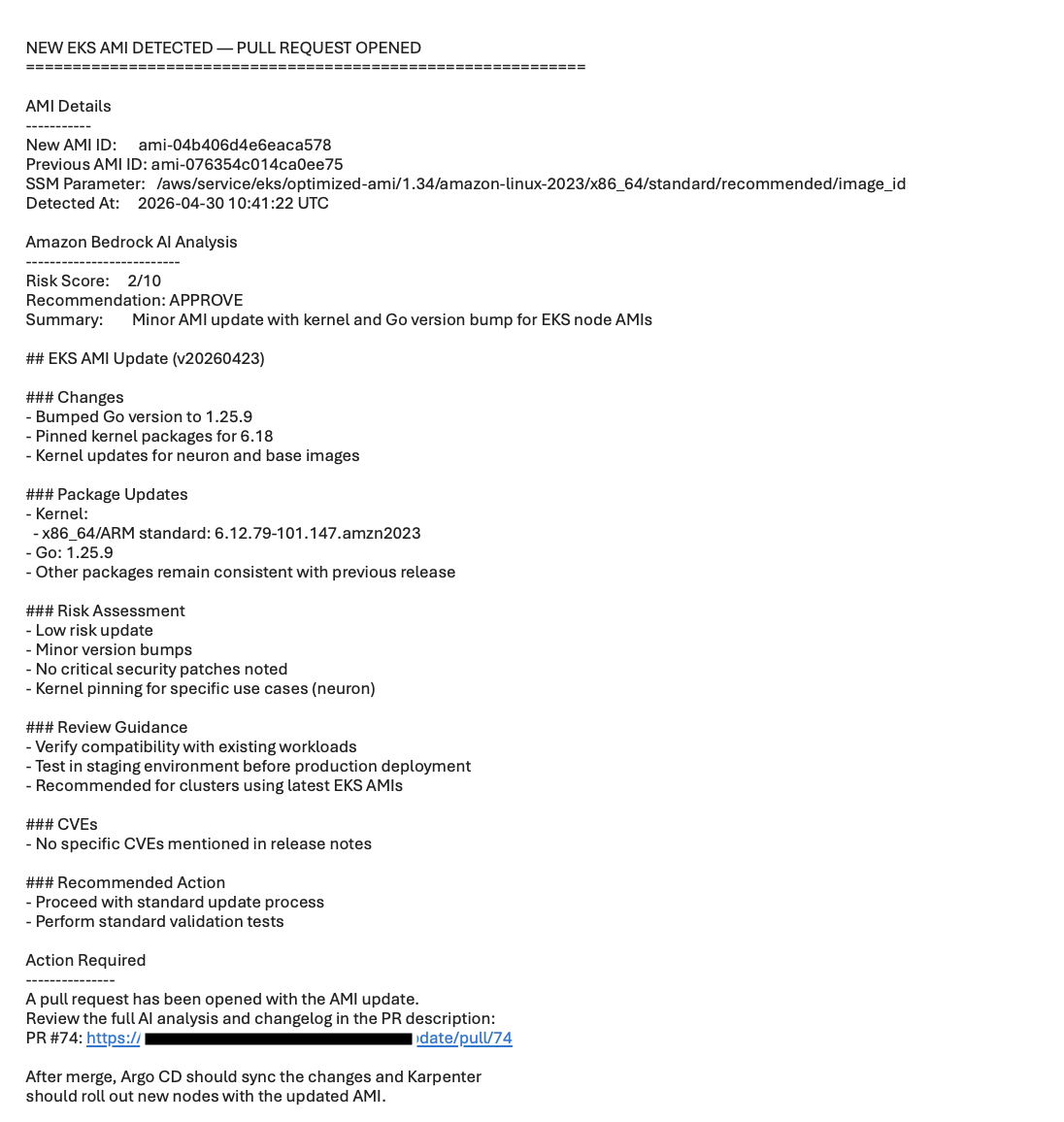

1. Check your email for the notification with the details of Amazon Bedrock AI Analysis and PR link.

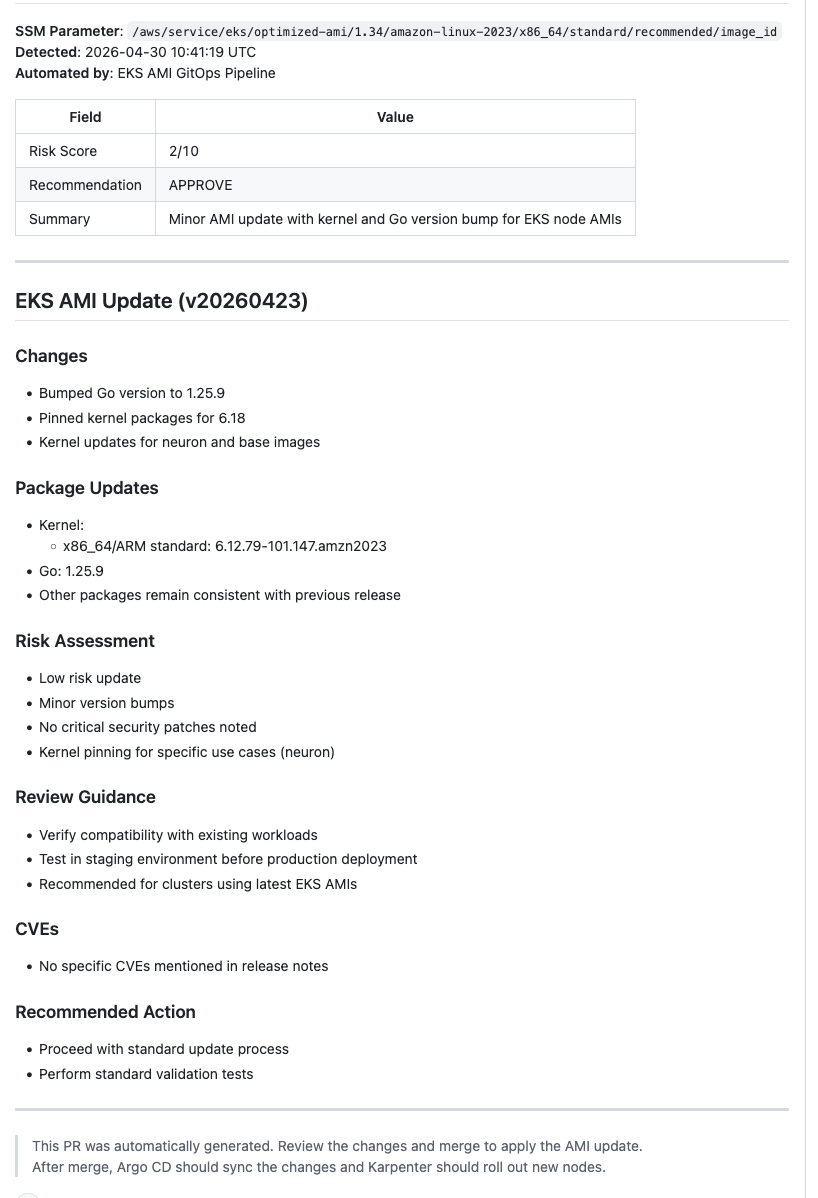

2. Open the PR in GitHub—the description contains the full Amazon Bedrock analysis.

3. Review the YAML diff (AMI ID change).
4. Merge the PR to apply the update.

iii. Verify Argo CD Auto-Sync

After merging, verify Argo CD picks up the change:Update the kubectl auth :aws eks update-kubeconfig –region <region> –name <cluster-name>Now run the following commands to verify Argo CD Auto-Sync:kubectl get application karpenter-nodeclass -n argocd -o jsonpath='{.spec.syncPolicy}’kubectl get ec2nodeclass default -o yaml | grep ami-

Troubleshooting

If you encounter issues during deployment or testing, check the following:

• SNS subscription not confirmed – Check your email inbox (including spam folder) for the SNS subscription confirmation email and click the confirmation link.
• GitHub App authentication failure – Verify your GitHub App is installed on the repository with read and write permissions. Ensure that the App ID, Installation ID, and Private Key stored in AWS Secrets Manager are correct and the key hasn’t expired.
• Amazon Bedrock model access denied – Ensure that you have enabled Claude 3.5 Haiku model access in your AWS account region through the Amazon Bedrock console.
• ArgoCD sync failures – Verify your ArgoCD Application is configured with auto-sync enabled and has the correct repository URL and path.
• Step Functions execution failures – Check CloudWatch Logs for the Lambda functions to identify specific error messages and verify IAM permissions.

Cleanup

To clean up, use the following command to delete the CloudFormation stack that we created during this walkthrough:

aws cloudformation delete-stack --stack-name eks-ami-update

Conclusion

This solution demonstrates how combining AI-powered analysis with GitOps principles can transform EKS AMI management from a manual, error-prone process into an automated, intelligent workflow. By using Amazon Bedrock for risk analysis and GitHub Pull Requests for human oversight, organizations can maintain security and compliance while significantly reducing operational burden.The architecture is production-ready, cost-effective, and extensible. Teams can customize the AI analysis prompts, adjust approval workflows, or integrate additional validation steps to meet their specific requirements.

Next steps

To get started with this solution:

1. Deploy in non-production to familiarize your team with the workflow.
2. Customize the Amazon Bedrock prompt to align with your organization’s risk assessment criteria.
3. Configure ArgoCD sync policies to match your deployment requirements.
4. Set up monitoring for Lambda functions and Step Functions workflow.
5. Document your process and train reviewers on interpreting AI-generated risk reports.

Additional resources

• Amazon EKS Best Practices Guide
• Karpenter Documentation
• ArgoCD Documentation
• Amazon Bedrock Developer Guide
• AWS Step Functions Best Practices
