Netflix & Amazon Kinesis Streams Case Study
Netflix is the world’s leading internet television network, with more than 100 million members worldwide enjoying 125 million hours of TV shows and movies each day, including original series, documentaries, and feature films. Members can watch as much as they want, anytime, anywhere, on nearly any Internet-connected screen.
Amazon Kinesis Streams processes multiple terabytes of log data each day, yet events show up in our analytics in seconds. We can discover and respond to issues in real time, ensuring high availability and a great customer experience.”
Application Monitoring on a Massive Scale
Netflix uses Amazon Web Services (AWS) for nearly all its computing and storage needs, including databases, analytics, recommendation engines, video transcoding, and more—hundreds of functions that in total use more than 100,000 server instances on AWS.
This results in an extremely complex and dynamic networking environment where applications are constantly communicating inside AWS and across the Internet. Monitoring and optimizing its network is critical for Netflix to continue improving customer experience, increasing efficiency, and reducing costs. In particular, Netflix needed a solution for ingesting, augmenting, and analyzing the multiple terabytes of data its network generates daily in the form of virtual private cloud (VPC) flow logs. This would enable Netflix to identify performance-improvement opportunities, such as identifying apps that are communicating across regions and collocating them. The company would also be able to increase uptime by quickly detecting and mitigating application downtime.
Each log record carries information about the communications between two IP addresses. However, in a dynamic environment like the one at Netflix, where an IP address can float between applications from day to day or even minute to minute, IP addresses alone don’t have much meaning. “The data sources we had before we took on this initiative were one sided,” says John Bennett, senior software engineer at Netflix. “We’d know an application was connecting to others, but we didn’t know both sides of the conversation and how to optimize those communications or the placement of the applications on the network.”
Netflix set out to establish a new data source that could give it more insight into communication among applications and regions by combining VPC flow logs with application metadata.
Centralizing Flow Logs Using Amazon Kinesis Streams
From the outset, AWS enabled Netflix to experiment with different approaches to analyzing its network data. “Early in the design process, the flexibility to try different ways of processing the data was important,” says Bennett. “We experimented with multiple designs and used many AWS products to get here.”

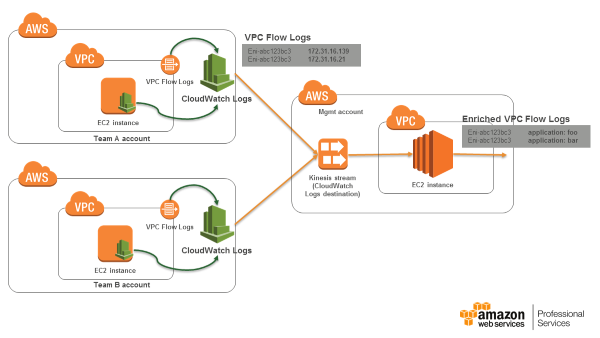

The solution Netflix ultimately deployed—known internally as Dredge—centralizes flow logs using Amazon Kinesis Streams. The application reads the data from Amazon Kinesis Streams in real time and enriches IP addresses with application metadata to provide a full picture of the networking environment. “Usually, we would put the data into a database, which would build an index to enable faster querying,” says Bennett. “Dredge joins the flow logs with application metadata as it streams and indexes it without using a database, which eliminates a lot of the complexity.”
The enriched data lands in an open-source analytics application called Druid. Netflix uses the OLAP querying functionality of Druid to quickly slice data into regions, availability zones, and time windows to visualize it and gain insight into how the network is behaving and performing.
AWS was the logical choice for Dredge in part because the data was already resident in the AWS Cloud. “It would have been daunting to publish, stream, and consume that much information from an external system such as Kafka,” says Bennett. “It took just a few API calls to centralize multiple terabytes of flow logs into Amazon Kinesis Streams. Now we can focus on getting insights from the data rather than simply getting access to it.”
The scalability of Amazon Kinesis Streams was a good fit for the Dredge application because of the cyclical and elastic nature of network usage at Netflix. “When it comes to our networking data, it’s more cost efficient to be able to scale up and down, which is not as easy to do with alternatives to Amazon Kinesis,” says Bennett.
Improving Customer Experience with Real-Time Network Monitoring
Netflix’s Amazon Kinesis Streams-based solution has proven to be highly scalable, each day processing billions of traffic flows. Typically, about 1,000 Amazon Kinesis shards work in parallel to process the data stream. “Amazon Kinesis Streams processes multiple terabytes of log data each day, yet events show up in our analytics in seconds,” says Bennett. “We can discover and respond to issues in real time, ensuring high availability and a great customer experience.”
Netflix is now able to identify new ways to optimize its applications, whether that means moving an application from one region to another or changing to a more appropriate network protocol for a specific type of traffic. “Our solution built on Amazon Kinesis enables us to identify ways to increase efficiency, reduce costs, and improve resiliency for the best customer experience,” says Bennett.
Although a streaming data solution is not new to the IT industry, it is an innovation in the networking space. “Netflix is heavily invested in AWS in part because it abstracts the underlying network, so we don’t have to deal with switches and routers,” says Bennett. “We’re monitoring, analyzing, and optimizing at a higher level of the stack—in ways we would never even consider if we were running our own data centers.”
About Company Name
Netflix is the world’s leading internet television network, with more than 100 million members in more than 190 countries enjoying 125 million hours of TV shows and movies each day.
Benefits of AWS
- Processes and enriches multiple terabytes each day, representing billions of events, with sub-second response times for analytics queries
- Highly cost efficient compared to competing solutions
- Freedom to experiment with system architecture to arrive at the most effective solution
- Data ingestion initiated with just a few simple API calls
- Highly elastic solution with close to 1,000 Amazon Kinesis shards working in parallel
AWS Services Used
Amazon Kinesis Streams
Amazon Kinesis Data Streams (KDS) is a massively scalable and durable real-time data streaming service.
