Introducing AWS CloudFormation Stack Refactoring Console Experience: Reorganize Your Infrastructure Without Disruption

AWS CloudFormation models and provisions cloud infrastructure as code, letting you manage entire lifecycle operations through declarative templates. Stack Refactoring console experience, announced today, extends the AWS CLI experience launched earlier. Now, you move resources between stacks, rename logical IDs, and decompose monolithic templates into focused components without touching the underlying infrastructure using the CloudFormation console. Your resources maintain stability and operational state throughout the reorganization. Whether you’re modernizing legacy stacks, aligning infrastructure with evolving architectural patterns, or improving long-term maintainability, Stack Refactoring adapts your CloudFormation stacks organization to changing requirements without forcing disruptive workarounds.

Stack Refactoring enables you to move resources between stacks, rename logical resource IDs, and split monolithic stacks into smaller, more manageable components—all while maintaining resource stability and preserving your infrastructure’s operational state. If you’re modernizing legacy infrastructure, aligning stack organization with evolving architectural patterns, or improving maintainability across your cloud resources, Stack Refactoring provides the flexibility you need to adapt your CloudFormation organization to changing

How It Works

Stack Refactoring operates through a controlled, multi-phase process designed around resource safety. When you initiate a refactor operation, CloudFormation analyzes both source and destination templates, constructs a detailed execution plan, then orchestrates resource movement without disrupting running infrastructure. Resource mappings define how assets transfer between stacks and how logical IDs should change. CloudFormation handles the orchestration complexity automatically – moving resources from source stacks, updating or creating destination stacks, and preserving all dependency relationships through exports and imports.

Each refactor operation receives a unique Stack Refactor ID for tracking progress, reviewing planned actions before execution, and monitoring the operation from initiation through completion. This preview-then-execute model gives you confidence in complex refactoring scenarios where dependencies span multiple stacks or templates.

Compared to the CLI, the console experience provides an easier way to view refactor actions, get automatic resource mapping, and easily rename logical IDs.

Example Scenario

Scenario 1: Splitting a Monolithic Stack

In this scenario, you have an Amazon Simple Notification Service (SNS) and AWS Lambda Function subscribed to it. As usage patterns evolve, you want to separate the subscriptions into a different stack for better organizational boundaries. You can also rename a resource’s logical ID to improve template clarity or align with naming conventions. Stack Refactoring handles this without recreating the underlying resource.

Create a new template MySNS.yaml using the following :

# Original stack: MySns
AWSTemplateFormatVersion: "2010-09-09"

Resources:
  Topic:
    Type: AWS::SNS::Topic

  MyFunction:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: my-function
      Handler: index.handler
      Runtime: python3.12
      Code:
        ZipFile: |
          import json
          def handler(event, context):
            print(json.dumps(event))
            return event
      Role: !GetAtt FunctionRole.Arn
      Timeout: 30

  Subscription:
    Type: AWS::SNS::Subscription
    Properties:
      Endpoint: !GetAtt MyFunction.Arn
      Protocol: lambda
      TopicArn: !Ref Topic

  FunctionInvokePermission:
    Type: AWS::Lambda::Permission
    Properties:
      Action: lambda:InvokeFunction
      Principal: sns.amazonaws.com
      FunctionName: !GetAtt MyFunction.Arn
      SourceArn: !Ref Topic

  FunctionRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Action:
              - sts:AssumeRole
            Effect: Allow
            Principal:
              Service:
                - lambda.amazonaws.com
            Condition:
              StringEquals:
                aws:SourceAccount: !Ref AWS::AccountId
              ArnLike:
                aws:SourceArn: !Sub "arn:${AWS::Partition}:lambda:${AWS::Region}:${AWS::AccountId}:function:my-function"
      Policies:
        - PolicyName: LambdaPolicy
          PolicyDocument:
            Version: "2012-10-17"
            Statement:
              - Action:
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                Resource:
                  - arn:aws:logs:*:*:*
                Effect: Allow

Create a new stack using this MySNS.yaml template:

aws cloudformation create-stack --stack-name MySns --template-body file://MySNS.yaml --capabilities CAPABILITY_IAM

Create a new template called afterSns.yaml with the content below. This template has your SNS topic in it and has a new export in it that will export the SNS topic ARN. This export will be used by your other templates to get the required SNS topic ARN.
```
# afterSns.yaml - Focused SNS stack
Resources:
  Topic:
    Type: AWS::SNS::Topic
Outputs:
  TopicArn:
    Value: !Ref Topic
    Export:
      Name: TopicArn
```

Create a new template afterLambda.yaml with the following content. This template includes all the resources to create a Lambda subscription to your SNS topic. This template switched the !Ref Topic to use the exported valued by using !ImportValue TopicArn. We are also updating the Logical Resource Id of Lambda function from MyFunction to

Function

AWSTemplateFormatVersion: "2010-09-09"
Resources:
  Function:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: my-function
      Handler: index.handler
      Runtime: python3.12
      Code:
        ZipFile: |
          import json
          def handler(event, context):
            print(json.dumps(event))
            return event
      Role: !GetAtt FunctionRole.Arn
      Timeout: 30
  Subscription:
    Type: AWS::SNS::Subscription
    Properties:
      Endpoint: !GetAtt Function.Arn
      Protocol: lambda
      TopicArn: !ImportValue TopicArn
  FunctionInvokePermission:
    Type: AWS::Lambda::Permission
    Properties:
      Action: lambda:InvokeFunction
      Principal: sns.amazonaws.com
      FunctionName: !GetAtt Function.Arn
      SourceArn: !ImportValue TopicArn
  FunctionRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Action:
              - sts:AssumeRole
            Effect: Allow
            Principal:
              Service:
                - lambda.amazonaws.com
            Condition:
              StringEquals:
                aws:SourceAccount: !Ref AWS::AccountId
              ArnLike:
                aws:SourceArn: !Sub "arn:${AWS::Partition}:lambda:${AWS::Region}:${AWS::AccountId}:function:my-function"
      Policies:
        - PolicyName: LambdaPolicy
          PolicyDocument:
            Version: "2012-10-17"
            Statement:
              - Action:
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                Resource:
                  - arn:aws:logs:*:*:*
                Effect: Allow

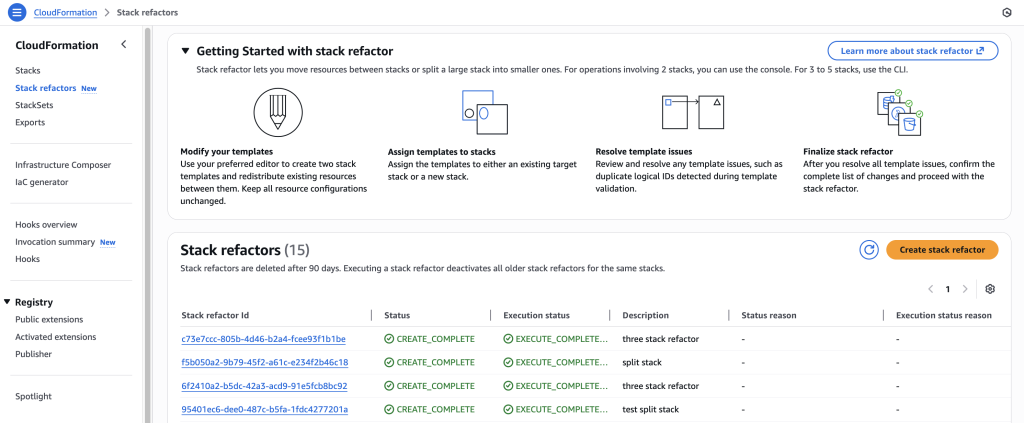

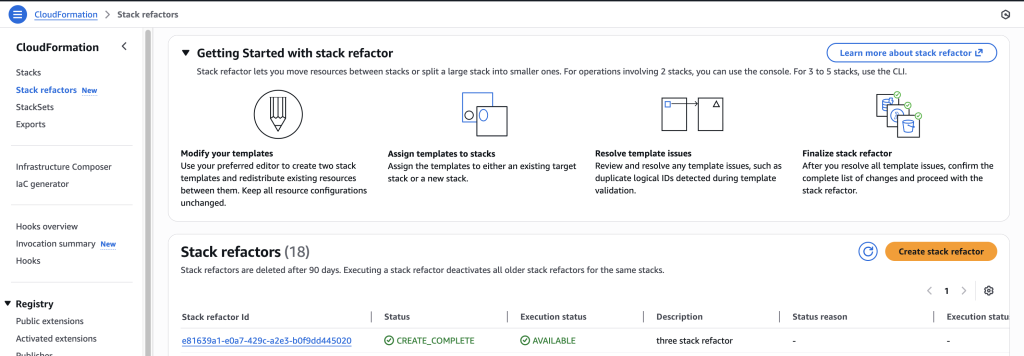

Go to stack refactor home page, click on ‘create stack refactor’

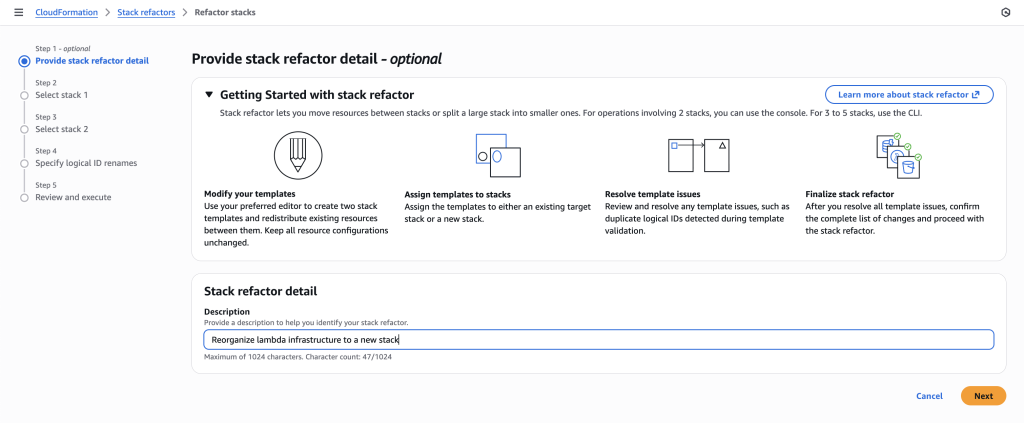

Provide a description to help you identify your stack refactor.
For this scenario, we are splitting a monolithic stack so select ‘Update the template for an existing stack’ and ‘Choose a stack’ options.

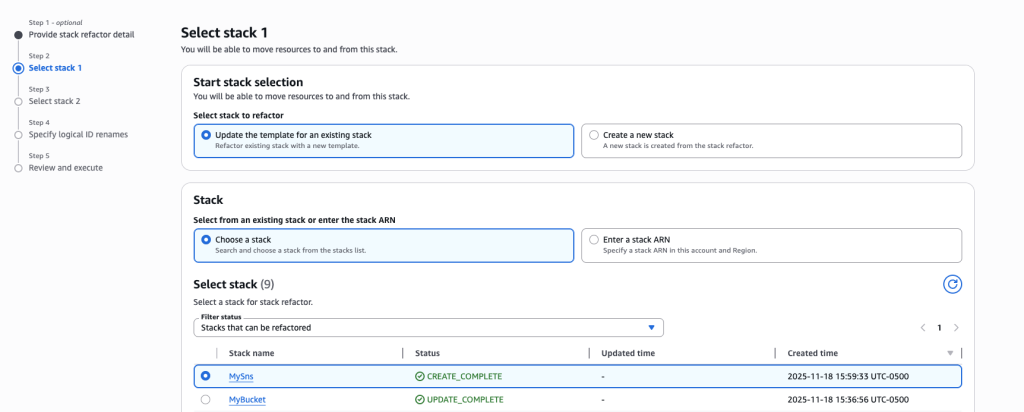

Search and choose the stack MySns that was created in Step 1.

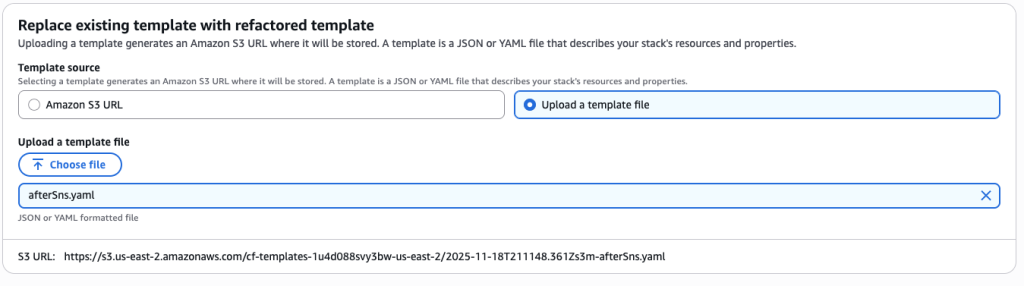

Upload the afterSns.yaml file
You want to create a new stack to manage the Lambda function and SNS subscription resources. Choose ‘Create a new stack’ and name it ‘LambdaSubscription’.

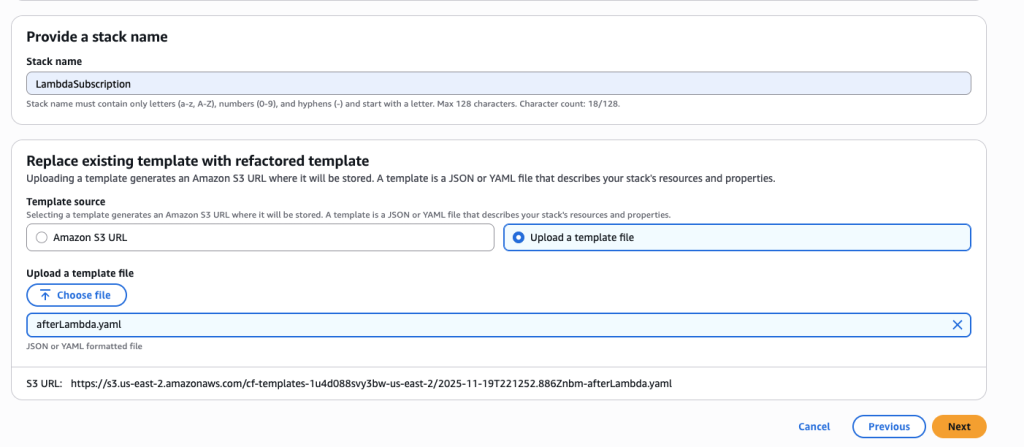

Upload afterLambda.yaml template file
In some scenarios, CloudFormation console can automatically detect logical resource ID renames and pre-fill the mapping for you. The resource mapping is required when there are logical resource ID changes between the original stack and refactored template. Ensure that the mappings are correct before proceeding to the next step.

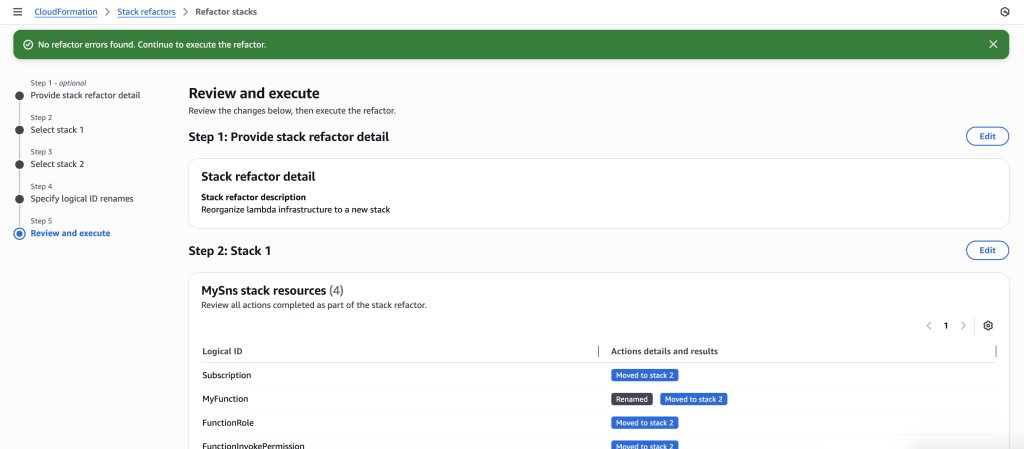

The stack refactor preview will start generating. Wait for the preview to complete. You can verify actions under Stack 1 and Stack 2. It will show you the action for each resource.

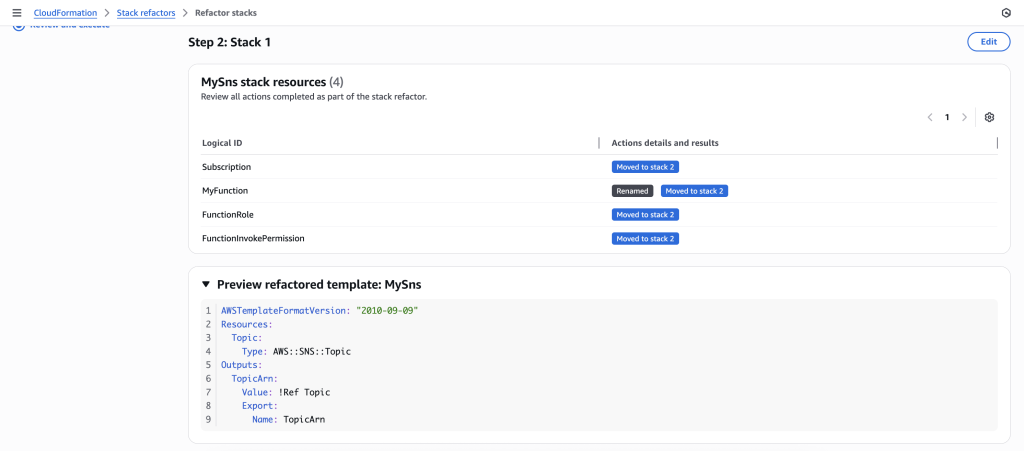

You can also preview the new Stack refactored templates

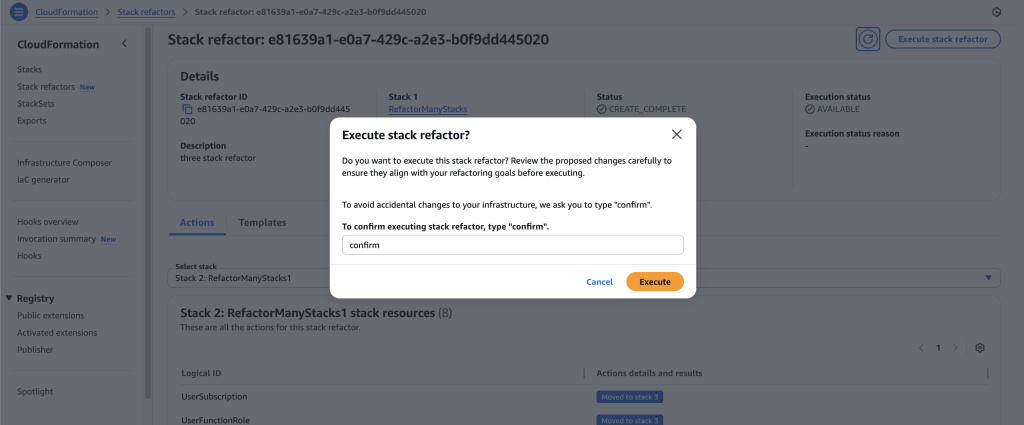

Once you verify the details, go ahead and Execute Refactor. You should be redirected to the stack refactor details.
Once the Stack refactor execution is complete you can view the actions and templates for each of the stacks in your stack refactor.

Scenario 2: Move resources across multiple stacks.

This scenario demonstrates how to refactor resources across three stacks using the AWS CLI, then review and execute the operation in the CloudFormation console.

Create a new template many-stacks-original.yaml and create a new stack named ‘RefactorManyStacks’ using AWS CLI. This template contains SNS topic (IngestTopic),Lambda function(IngestFunction) and SNS subscription.

AWSTemplateFormatVersion: "2010-09-09"

Resources:
  IngestTopic:
    Type: AWS::SNS::Topic

  IngestFunction:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: many-stack-my-function
      Handler: index.handler
      Runtime: python3.12
      Code:
        ZipFile: |
          import json
          def handler(event, context):
            print(json.dumps(event))
            return event
      Role: !GetAtt IngestFunctionRole.Arn
      Timeout: 30

  IngestSubscription:
    Type: AWS::SNS::Subscription
    Properties:
      Endpoint: !GetAtt IngestFunction.Arn
      Protocol: lambda
      TopicArn: !Ref IngestTopic

  IngestFunctionInvokePermission:
    Type: AWS::Lambda::Permission
    Properties:
      Action: lambda:InvokeFunction
      Principal: sns.amazonaws.com
      FunctionName: !GetAtt IngestFunction.Arn
      SourceArn: !Ref IngestTopic

  IngestFunctionRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Action:
              - sts:AssumeRole
            Effect: Allow
            Principal:
              Service:
                - lambda.amazonaws.com
            Condition:
              StringEquals:
                aws:SourceAccount: !Ref AWS::AccountId
              ArnLike:
                aws:SourceArn: !Sub "arn:${AWS::Partition}:lambda:${AWS::Region}:${AWS::AccountId}:function:many-stack-my-function"
      Policies:
        - PolicyName: LambdaPolicy
          PolicyDocument:
            Version: "2012-10-17"
            Statement:
              - Action:
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                Resource:
                  - arn:aws:logs:*:*:*
                Effect: Allow

Create another template many-stacks-original-1.yaml and run the AWS CLI command to create a new stack ‘RefactorManyStacks1’. This template creates another SNS topic (UserTopic), Lambda function (UserFunction) and SNS subscription.
```
aws cloudformation create-stack --stack-name RefactorManyStacks --template-body file://many-stacks-original.yaml --capabilities CAPABILITY_IAM
```

Create a new template many-stacks-original-2.yaml and run the AWS CLI command to create the stack RefactorManyStacks2. This template will also create SNS topic (ConsumerTopic), Lambda function (ConsumerFunction) and SNS subscription to lambda function.

AWSTemplateFormatVersion: "2010-09-09"

Resources:
  ConsumerTopic:
    Type: AWS::SNS::Topic

  ConsumerFunction:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: many-stack-my-function-2
      Handler: index.handler
      Runtime: python3.12
      Code:
        ZipFile: |
          import json
          def handler(event, context):
            print(json.dumps(event))
            return event
      Role: !GetAtt ConsumerFunctionRole.Arn
      Timeout: 30

  ConsumerSubscription:
    Type: AWS::SNS::Subscription
    Properties:
      Endpoint: !GetAtt ConsumerFunction.Arn
      Protocol: lambda
      TopicArn: !Ref ConsumerTopic

  ConsumerFunctionInvokePermission:
    Type: AWS::Lambda::Permission
    Properties:
      Action: lambda:InvokeFunction
      Principal: sns.amazonaws.com
      FunctionName: !GetAtt ConsumerFunction.Arn
      SourceArn: !Ref ConsumerTopic

  ConsumerFunctionRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Action:
              - sts:AssumeRole
            Effect: Allow
            Principal:
              Service:
                - lambda.amazonaws.com
            Condition:
              StringEquals:
                aws:SourceAccount: !Ref AWS::AccountId
              ArnLike:
                aws:SourceArn: !Sub "arn:${AWS::Partition}:lambda:${AWS::Region}:${AWS::AccountId}:function:many-stack-my-function-2"
      Policies:
        - PolicyName: LambdaPolicy
          PolicyDocument:
            Version: "2012-10-17"
            Statement:
              - Action:
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                Resource:
                  - arn:aws:logs:*:*:*
                Effect: Allow

aws cloudformation create-stack --stack-name RefactorManyStacks2 --template-body file://many-stacks-original-2.yaml --capabilities CAPABILITY_IAM

Once all 3 stacks have been created successfully. Create refactored templates.

Create new template many-stacks-refactored.yaml This refactored template only contains SNS topic named IngestTopic and has a new export in it that will export the SNS topic ARN. This export will be used by your other templates to get the required SNS topic ARN.
```
AWSTemplateFormatVersion: "2010-09-09"

Resources:
  IngestTopic:
    Type: AWS::SNS::Topic
Outputs:
  IngestTopicArn:
    Value: !Ref IngestTopic
    Export:
      Name: IngestTopicArn
```

Create another template many-stacks-refactored-1.yaml. This template **** has the SNS topic UserTopic and contains the IngestFunction and IngestSubscription and required IAM resources from ‘RefactorManyStacks’. This template switched the !Ref IngestTopic to use the exported valued by using !ImportValue IngestTopicArn. This refactored template also a new export in it that will export the UserTopic ARN.

AWSTemplateFormatVersion: "2010-09-09"

Resources:
  UserTopic:
    Type: AWS::SNS::Topic
  IngestFunction:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: many-stack-my-function
      Handler: index.handler
      Runtime: python3.12
      Code:
        ZipFile: |
          import json
          def handler(event, context):
            print(json.dumps(event))
            return event
      Role: !GetAtt IngestFunctionRole.Arn
      Timeout: 30

  IngestSubscription:
    Type: AWS::SNS::Subscription
    Properties:
      Endpoint: !GetAtt IngestFunction.Arn
      Protocol: lambda
      TopicArn: !ImportValue IngestTopicArn

  IngestFunctionInvokePermission:
    Type: AWS::Lambda::Permission
    Properties:
      Action: lambda:InvokeFunction
      Principal: sns.amazonaws.com
      FunctionName: !GetAtt IngestFunction.Arn
      SourceArn: !ImportValue IngestTopicArn

  IngestFunctionRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Action:
              - sts:AssumeRole
            Effect: Allow
            Principal:
              Service:
                - lambda.amazonaws.com
            Condition:
              StringEquals:
                aws:SourceAccount: !Ref AWS::AccountId
              ArnLike:
                aws:SourceArn: !Sub "arn:${AWS::Partition}:lambda:${AWS::Region}:${AWS::AccountId}:function:many-stack-my-function"
      Policies:
        - PolicyName: LambdaPolicy
          PolicyDocument:
            Version: "2012-10-17"
            Statement:
              - Action:
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                Resource:
                  - arn:aws:logs:*:*:*
                Effect: Allow
Outputs:
  UserTopicArn:
    Value: !Ref UserTopic
    Export:
      Name: UserTopicArn

Create another template many-stacks-refactored-2.yaml. This template has the Consumer* resources along with Lambda function (UserFunction) and SNS subscription (UserSubscription). The template is using exported value from many-stacks-refactored-1.yaml by using

!ImportValue UserTopicArn

AWSTemplateFormatVersion: "2010-09-09"

Resources:
  ConsumerTopic:
    Type: AWS::SNS::Topic

  ConsumerFunction:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: many-stack-my-function-2
      Handler: index.handler
      Runtime: python3.12
      Code:
        ZipFile: |
          import json
          def handler(event, context):
            print(json.dumps(event))
            return event
      Role: !GetAtt ConsumerFunctionRole.Arn
      Timeout: 30

  ConsumerSubscription:
    Type: AWS::SNS::Subscription
    Properties:
      Endpoint: !GetAtt ConsumerFunction.Arn
      Protocol: lambda
      TopicArn: !Ref ConsumerTopic

  ConsumerFunctionInvokePermission:
    Type: AWS::Lambda::Permission
    Properties:
      Action: lambda:InvokeFunction
      Principal: sns.amazonaws.com
      FunctionName: !GetAtt ConsumerFunction.Arn
      SourceArn: !Ref ConsumerTopic

  ConsumerFunctionRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Action:
              - sts:AssumeRole
            Effect: Allow
            Principal:
              Service:
                - lambda.amazonaws.com
            Condition:
              StringEquals:
                aws:SourceAccount: !Ref AWS::AccountId
              ArnLike:
                aws:SourceArn: !Sub "arn:${AWS::Partition}:lambda:${AWS::Region}:${AWS::AccountId}:function:many-stack-my-function-2"
      Policies:
        - PolicyName: LambdaPolicy
          PolicyDocument:
            Version: "2012-10-17"
            Statement:
              - Action:
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                Resource:
                  - arn:aws:logs:*:*:*
                Effect: Allow
  UserFunction:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: many-stack-my-function-1
      Handler: index.handler
      Runtime: python3.12
      Code:
        ZipFile: |
          import json
          def handler(event, context):
            print(json.dumps(event))
            return event
      Role: !GetAtt UserFunctionRole.Arn
      Timeout: 30

  UserSubscription:
    Type: AWS::SNS::Subscription
    Properties:
      Endpoint: !GetAtt UserFunction.Arn
      Protocol: lambda
      TopicArn: !ImportValue UserTopicArn

  UserFunctionInvokePermission:
    Type: AWS::Lambda::Permission
    Properties:
      Action: lambda:InvokeFunction
      Principal: sns.amazonaws.com
      FunctionName: !GetAtt UserFunction.Arn
      SourceArn: !ImportValue UserTopicArn

  UserFunctionRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Action:
              - sts:AssumeRole
            Effect: Allow
            Principal:
              Service:
                - lambda.amazonaws.com
            Condition:
              StringEquals:
                aws:SourceAccount: !Ref AWS::AccountId
              ArnLike:
                aws:SourceArn: !Sub "arn:${AWS::Partition}:lambda:${AWS::Region}:${AWS::AccountId}:function:many-stack-my-function-1"
      Policies:
        - PolicyName: LambdaPolicy
          PolicyDocument:
            Version: "2012-10-17"
            Statement:
              - Action:
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                Resource:
                  - arn:aws:logs:*:*:*
                Effect: Allow

Start the stack refactor using AWS CLI.

aws cloudformation create-stack-refactor --stack-definitions StackName=RefactorManyStacks,TemplateBody@=file://many-stacks-refactored.yaml StackName=RefactorManyStacks1,TemplateBody@=file://many-stacks-refactored-1.yaml StackName=RefactorManyStacks2,TemplateBody@=file://many-stacks-refactored-2.yaml --description "three stack refactor"

Go to stack CloudFormation console and go to ‘Stack refactor’ homepage, click on the stack refactor you just created.

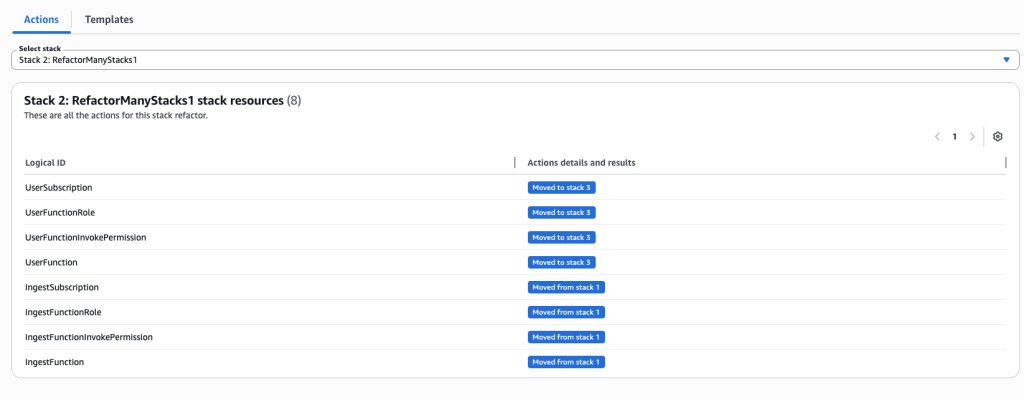

Review actions for each resource and each stack. You can choose individual stacks from drop down.
Once you’re ready to execute the stack refactor, click on ‘Execute stack refactor’ and input the confirmation text.

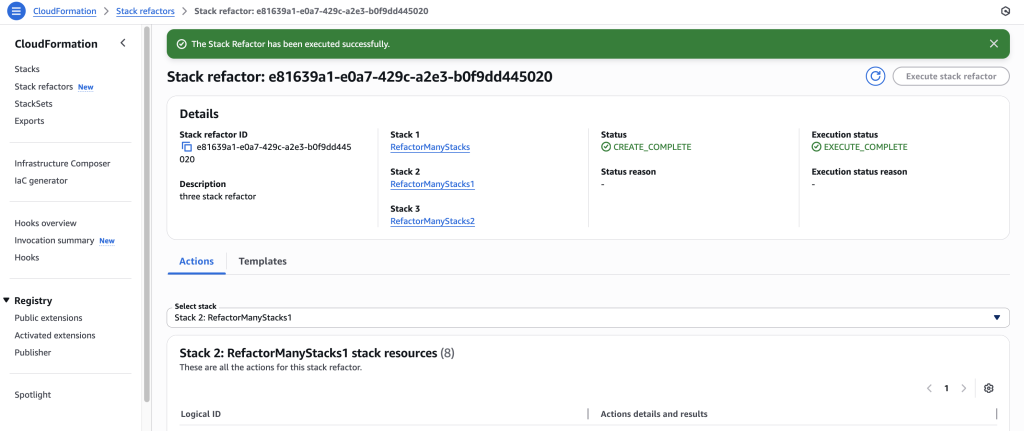

Wait for stack refactor execution to finish.

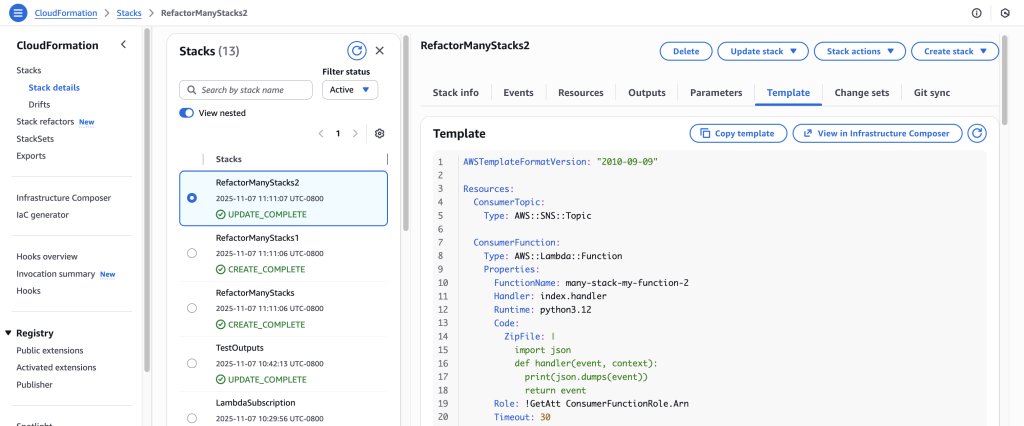

Click on the stack in the details to navigate to the stack details. You can verify the refactor changes here.

Scenario 3: Move stacks between 2 nested child stacks stacks

This scenario demonstrates how to move resources between child stacks in a nested stack architecture. Upload child stack templates toAmazon Simple Storage Service (Amazon S3), create a parent stack that references them, then use Stack Refactoring to move resources (like a security group) from one child stack to another. The key is to work directly with the child stack names (which CloudFormation auto-generates based on parent stack name and logical IDs) rather than the parent stack itself. After refactoring, update the parent stack to reference the new child template versions in S3.

This approach lets you reorganize nested stack architectures while maintaining the parent-child relationship structure.

Create first child stack template vpc.yaml. This template creates a new Virtual Private Cloud(VPC). Upload this new template file to S3 bucket

AWSTemplateFormatVersion: '2010-09-09'
Description: 'VPC Stack - Contains only VPC'

Resources:
  MyVPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 10.0.0.0/16

Outputs:
  VPCId:
    Value: !Ref MyVPC

Create second child stack template resource.yaml . This template will create S3 bucket and EC2 Security Group. Once you create this template file, upload it to an S3 bucket

AWSTemplateFormatVersion: '2010-09-09'
Description: ' Contains security group and S3 bucket'

Resources:
  MySecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Security group for testing
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 80
          ToPort: 80
          CidrIp: 0.0.0.0/0

  MyS3Bucket:
    Type: AWS::S3::Bucket

Outputs:
  SecurityGroupId:
    Value: !Ref MySecurityGroup
  S3BucketName:
    Value: !Ref MyS3Bucket

Create parent stack template file parent.yaml. Make sure to edit the TemplateURL with your S3 Object URL

AWSTemplateFormatVersion: '2010-09-09'
Description: 'Parent stack for test'

Resources:
  VPCStack:
    Type: AWS::CloudFormation::Stack
    Properties:
      TemplateURL: https://s3.amazonaws.com/<Bucket-Name>/vpc.yaml

  ResourceStack:
    Type: AWS::CloudFormation::Stack
    Properties:
      TemplateURL: https://s3.amazonaws.com/<Bucket-Name>/resource.yaml

Outputs:
  VPCStackName:
    Value: !Ref VPCStack
  ResourceStackName:
    Value: !Ref ResourceStack

Create this new Parent stack using AWS CLI :

aws cloudformation create-stack --stack-name ParentStack --template-body file://parent.yaml --capabilities CAPABILITY_IAM

We will use stack refactor to move EC2 Security group from ResourceStack to VPCStack.

Create new template file VPCStackAfter.yaml. This template now has VPC and EC2 Security group resources. Upload this template to S3 bucket

AWSTemplateFormatVersion: '2010-09-09'
Description: ' VPC Stack AFTER - Contains VPC and security group'

Resources:
  MyVPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 10.0.0.0/16

  MySecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Security group for testing
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 80
          ToPort: 80
          CidrIp: 0.0.0.0/0

Outputs:
  VPCId:
    Value: !Ref MyVPC
  SecurityGroupId:
    Value: !Ref MySecurityGroup

Create ResourceStackAfter.yaml The resource stack will only contain s3 bucket resource. Upload this template to S3 bucket

AWSTemplateFormatVersion: '2010-09-09'
Description: 'Resource Stack AFTER - Contains only S3 bucket'

Resources:
  MyS3Bucket:
    Type: AWS::S3::Bucket

Outputs:
  S3BucketName:
    Value: !Ref MyS3Bucket

Navigate to CloudFormation Console and select Start stack refactor
Add a description for Stack refactor:

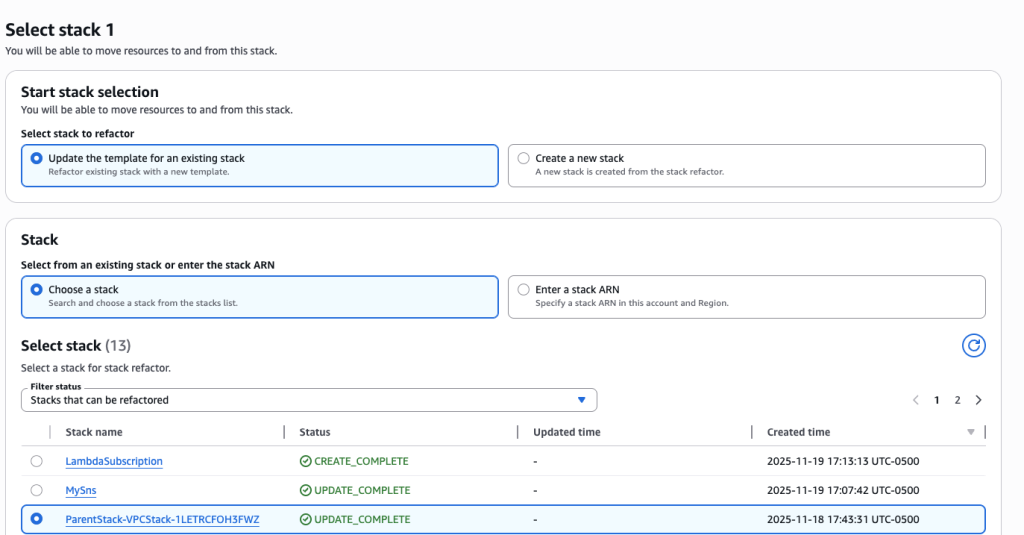

Choose “Update the template for an existing stack” and select child stack “ParentStack-VPCStack-12345”. Make sure to choose the child stack and not the Root/Parent stack.

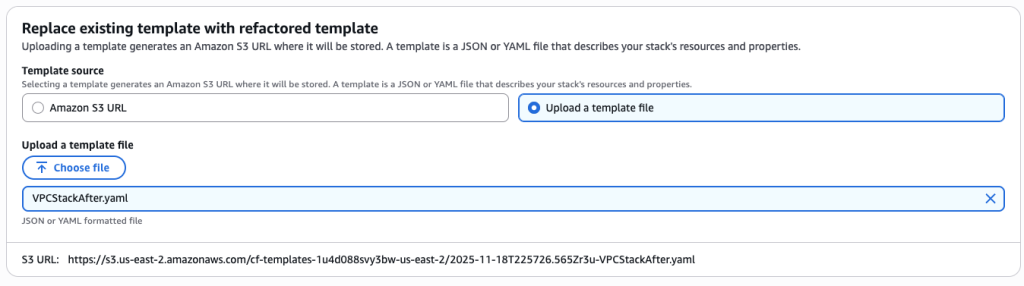

Upload the new template VPCStackAfter.yaml
For Stack2, again select ‘Update the template for an existing stack’ and select to 2nd child stack “ParentStack-ResourceStack-12345”

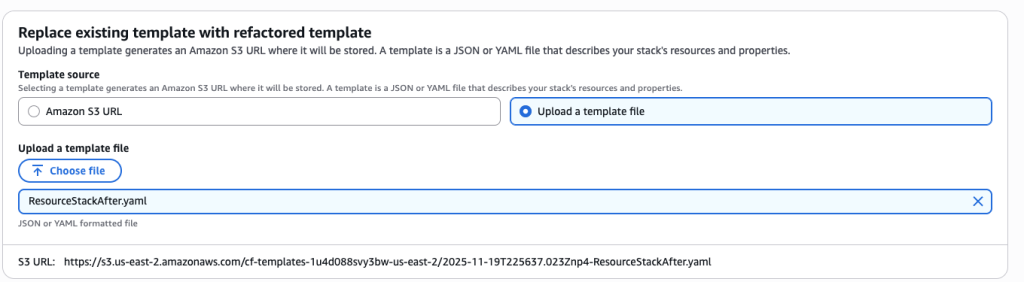

Upload the template ResourceStackAfter.yaml

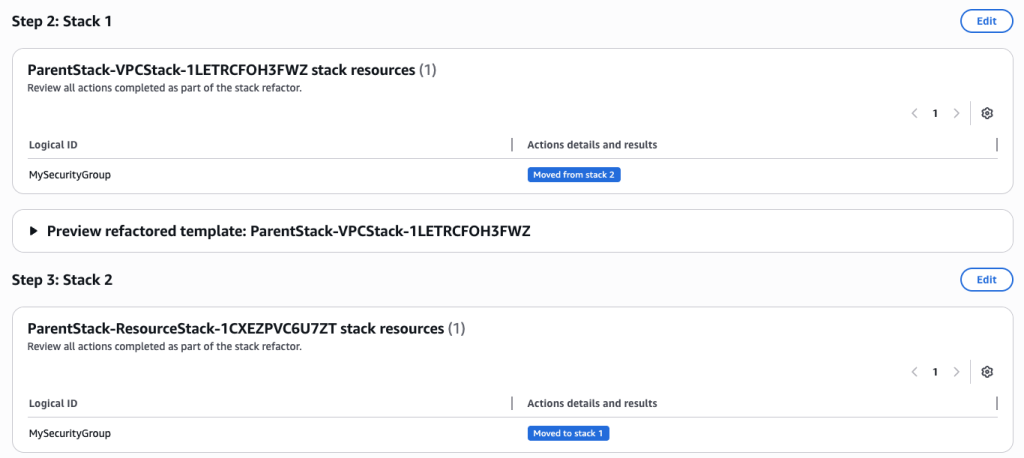

Review the Stack refactor. Once you have verified all the actions and details choose ‘Execute Refactor’

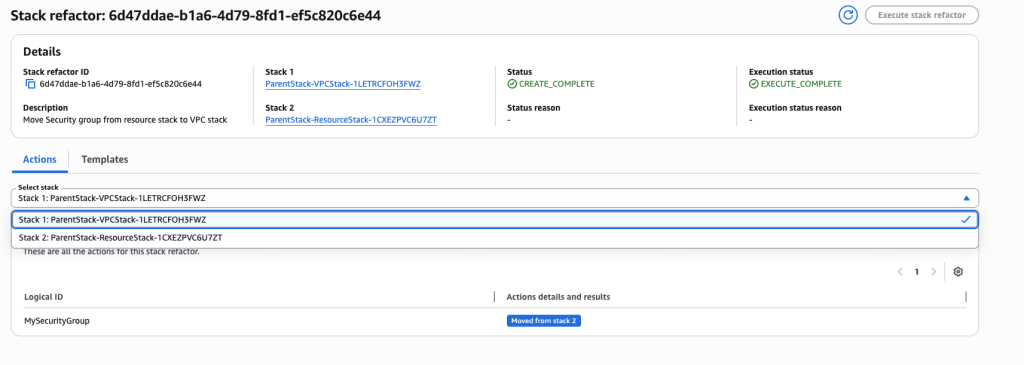

You can verify the refactor templates.

Lastly, update your ParentStack.yaml to reference the new child template versions in S3 bucket.

AWSTemplateFormatVersion: '2010-09-09'
Description: 'Parent stack for test'

Resources:
  VPCStack:
    Type: AWS::CloudFormation::Stack
    Properties:
      TemplateURL: https://s3.amazonaws.com/<Bucket-Name>/VPCStackAfter.yaml

  ResourceStack:
    Type: AWS::CloudFormation::Stack
    Properties:
      TemplateURL: https://s3.amazonaws.com/<Bucket-Name>/ResourceStackAfter.yaml

Outputs:
  VPCStackName:
    Value: !Ref VPCStack
  ResourceStackName:
    Value: !Ref ResourceStack

Best Practices

Stack Refactoring offers powerful flexibility, but a few strategic considerations will help ensure smooth operations. Test your refactoring plans in non-production environments first, particularly when working with complex dependency chains or resources that have strict ordering requirements. The preview phase becomes your primary safety mechanism—treat it as a thorough code review, examining each planned action before execution. When moving resources between stacks, pay close attention to cross-stack references. Converting direct references to export/import patterns maintains loose coupling and prevents circular dependencies. CloudFormation will automatically manage these conversions during refactoring, but understanding the resulting architecture helps you avoid introducing fragility into your infrastructure.

For scenarios where you’re emptying a source stack entirely, remember that CloudFormation requires at least one resource per stack. This makes placeholder resources like AWS::CloudFormation::WaitConditionHandle a useful temporary measure—they consume no actual AWS resources and can be safely deleted along with the stack once the refactoring completes.

Document your refactoring decisions alongside the templates themselves. Future maintainers (including yourself in six months) will appreciate understanding why resources were organized in particular ways. Include comments in your templates explaining the reasoning behind stack boundaries and resource groupings.

Consider the operational impact of your refactoring. While resources themselves remain stable, monitoring dashboards, automation scripts, or other tooling that references stack names or logical IDs may need updates. Plan these ancillary changes as part of your refactoring workflow rather than discovering them afterward.

Finally, leverage refactoring as an opportunity to improve template quality more broadly. If you’re already reorganizing resources, consider also updating documentation, standardizing naming conventions, or adding tags for better resource management.

Conclusion

CloudFormation Stack Refactoring transforms how you organize and maintain infrastructure as code, enabling stack architecture to evolve alongside applications and organizational needs. This capability provides the flexibility to restructure without the risk and complexity of traditional resource recreation approaches. Whether you’re breaking apart monolithic stacks, consolidating fragmented infrastructure, or simply renaming resources to match current conventions, Stack Refactoring lets you adapt CloudFormation organization to changing requirements without operational disruption.

To get started, visit the CloudFormation console or explore the AWS CloudFormation API reference for programmatic access patterns. Stack Refactoring is available today in all commercial AWS regions.

AWS DevOps & Developer Productivity Blog

Introducing AWS CloudFormation Stack Refactoring Console Experience: Reorganize Your Infrastructure Without Disruption

How It Works

Example Scenario

Scenario 1: Splitting a Monolithic Stack

Scenario 2: Move resources across multiple stacks.

Scenario 3: Move stacks between 2 nested child stacks stacks

Best Practices

Conclusion

Resources

Follow

Learn

Resources

Developers

Help
