Run Unreal Engine 5.6 with Proton on Amazon GameLift Streams Linux Runtime

If you are looking to run a Windows game based on Unreal Engine 5.6 or newer, it currently isn’t compatible with the available managed Proton runtimes on Amazon GameLift Streams. Instead, you can run the same Unreal Engine game with a compatible version of Proton by using the Linux Runtime option on Amazon GameLift Streams.

Linux Runtime is an option when creating an application on Amazon GameLift Streams. This option provides developers with Linux experience the full range of standard Linux functionality, such as running Linux-native applications. Proton itself is a Linux-native application, which we can direct to run Windows applications. It is possible to upload a combination of the Proton compatibility layer, plus your Windows application, as if the total combination were entirely one native Linux application.

We will cover how you can use a compatible Proton version to run an Unreal Engine 5.6 game built on Windows by packaging it as a Linux Runtime application on Amazon GameLift Streams.

Prerequisites

Before you begin, confirm you have:

  • A compatible Linux environment to build and test the Proton build against the Unreal Engine Windows game with the following recommended specifications:
    • Ubuntu 22.04 64-bit operating system consistent with what Amazon GameLift Streams Ubuntu 22.04 long-term support (LTS) runtime.
    • Nvidia or AMD GPU with latest drivers installed
    • A functional display device to view the desktop
  • An Unreal Engine 5.6 game
    • Built for Windows (Not Linux)
    • Tested and working on Windows
  • AWS resources and access
    • AWS Command Line Interface (AWS CLI) installed and configured
    • An AWS account with access to Amazon Simple Storage Service (Amazon S3) and Amazon GameLift Streams
    • AWS Identity and Access Management (IAM) credentials with permissions to:
      • Upload files to Amazon S3
      • Create applications on Amazon GameLift Streams
      • Delete applications and Amazon S3 objects for cleanup

Solution overview

The Proton and Unreal Engine 5.6 game bundle will be referred to as the Packaged Application from this point onward. You will first need to assemble the Packaged Application, then ingest this onto Amazon GameLift Streams as a Linux Runtime application.

Understanding the Packaged Application folder structure

The Packaged Application requires three things:

  1. The Unreal Engine 5.6 game built for Windows
  2. Proton
  3. An executable script to launch the binaries

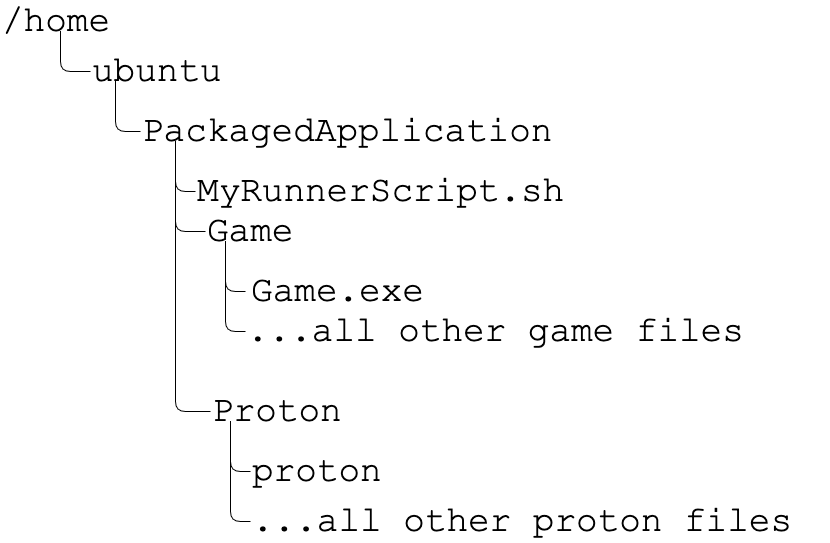

Assuming you are on an Ubuntu 22.04 LTS machine logged onto the Ubuntu user, the folder structure of your Packaged Application will look like the following:

/home/ubuntu/PackagedApplication Under PackagedApplication are the folders: MyRunnerScript.sh, Game and Proton. Under the Game folder is the Game.exe and all other game files. Under the Proton folder is proton and all other proton files.

Figure 1: Packaged Application folder structure.

Understanding the executable script for Linux Runtime applications

When you ingest the Packaged Application onto Amazon GameLift Streams as a Linux Runtime application, you will need to specify a Linux executable. This executable should be a program that runs on an Ubuntu 22.04 LTS machine. Currently the executable cannot require root permission and must interface with the X11 display server for rendering the application. For your Packaged Application, the executable will be a Bash script.

Walk-through

Assembling the Packaged Application

Step 1: To generate the top-level folder

First, you will need to generate the top-level folder of the Packaged Application. Enter the following commands in your terminal to set up the required folder:

mkdir ~/PackagedApplication

Step 2: Build Proton 10 from source

  1. You will be building Proton with the tag experimental-10.0-20250805 from source. Follow the instructions in the Install Proton section in the Amazon GameLift Streams developer guide to create the Proton setup script named proton-setup.sh.
  2. Next, execute the script to build Proton on your Ubuntu 22.04 LTS machine.
chmod +x proton-setup.sh
./proton-setup.sh experimental-10.0-20250805
  1. Once the script is done, take note of the Proton artifact location printed at the very last line. Following is an example of what the location line will look like. The bold part is the location you want to take note of for later use.

Finished installing proton. Proton artifact location: /home/ubuntu/protonBuild/dist

Step 3: To add Proton 10 to the Packaged Application

Copy the Proton artifact location from the previous section into the Packaged Application directory:

cp -r /home/ubuntu/protonBuild/dist ~/PackagedApplication/Proton/

The Proton artifact will be referenced later when creating MyRunnerScript.sh.

Step 4: To add the Unreal Engine 5.6 Game to the Packaged Application

Copy the root folder of your Unreal Engine 5.6 game into the Packaged Application folder:

cp -r UnrealEngineGame ~/PackagedApplication/UnrealEngineGame

Step 5: To create the executable Bash script

  1. Create a file named MyRunnerScript.sh.
touch ~/PackagedApplication/MyRunnerScript.sh
  1. Then, paste the following contents into the MyRunnerScript.sh file and make the necessary updates to the APP_DIR and APP_EXE variables:
#!/bin/bash
set -a

# This variable will be used to reference current working directory
CURRENT_DIR=$(pwd)
# For APP_DIR and APP_EXE, assume the following folder structure:
# home
# └ ubuntu
#     └ UnrealEngineGame
#             └ folder1
#                  └ folder2
#                       └ mygame.exe
#
# Absolute path to the folder containing the Windows executable.
# Use the CURRENT_DIR variable to abstract the working directory on Amazon GameLift Streams.
APP_DIR=${CURRENT_DIR}/UnrealEngineGame/folder1/folder2
# Filename of the Windows executable to run.
APP_EXE=mygame.exe

PROTON_DIR=${CURRENT_DIR}/Proton

# Amazon S3 will remove empty folders which Proton will expect to exist. This step to generate the empty folders is required for Proton to run properly.
mkdir "${PROTON_DIR}"/compatdata
mkdir "${PROTON_DIR}"/files/share/default_pfx/dosdevices

# required environment variables when running the proton python script.
STEAM_COMPAT_DATA_PATH="${PROTON_DIR}"/compatdata
STEAM_COMPAT_CLIENT_INSTALL_PATH="anything"
"${PROTON_DIR}"/proton getcompatpath "${STEAM_COMPAT_DATA_PATH}"

# setup for WINE environment variables
WINEDLLPATH="${PROTON_DIR}/files/lib64/wine:${PROTON_DIR}/files/lib/wine"
WINEPREFIX="${STEAM_COMPAT_DATA_PATH}/pfx"
WINEDLLOVERRIDES="d3d11=n;d3d10core=n;d3d9=n;dxgi=n;d3d12=n;d3d12core=n"
WINEFSYNC=1

# WINE debug logging options
echo "[DEBUG] Enabling Proton and Wine debugging..."
WINEDEBUG='warn,err,info,+loaddll'
DXVK_LOG_LEVEL=info
DXVK_NVAPI_LOG_LEVEL=info
VKD3D_DEBUG=info

cd "${APP_DIR}"
# start application
"${PROTON_DIR}"/files/bin/wine64 explorer.exe /desktop=mygame,1920x1080 "$APP_EXE" "$@" 2>&1 | tee "${CURRENT_DIR}/wine.log"
set +a

NOTE: When modifying the prior Bash script, make certain that the changes are secure and follow the Amazon Web Services (AWS) Shared Responsibility Model.

Step 6: To test the Packaged Application

It is best to test the Packaged Application first on the Linux machine before uploading to Amazon GameLift Streams. Execute MyRunnerScript.sh file on your terminal with the following commands:

cd ~/PackagedApplication
chmod +x MyRunnerScript.sh
./MyRunnerScript.sh

If the game runs as expected, then you are ready to create an application with the Linux Runtime on Amazon GameLift Streams. If not, check your terminal output and the wine.log file located in the same directory as the script for further debugging. For more information about debug log files, see the Debug the application through log files section under the Amazon GameLift Streams Troubleshooting Compatibility on Proton guide.

Creating the GameLift Streams application with Linux Runtime

Verify your AWS credentials are active in your terminal and accessible by the AWS CLI. The credentials must have the necessary permissions to upload objects to your S3 bucket and create an application on Amazon GameLift Streams.

Step 1: Uploading the Packaged Application to Amazon S3

In the code snippet that follows, update the <USER_BUCKET> string with your S3 bucket. Then, enter the commands in your terminal to upload the Packaged Application you have just assembled to your S3 bucket.

The compatdata folder contains the WINE prefix, which acts as a virtual drive for your Windows application. For more information, see the official WINE FAQ on WINE prefixes. This folder contains symbolic link files that are not supported by Amazon S3.

Code snippet to upload the Packaged Application:

# Running Proton locally will generate the compatdata folder
# containing the WINE prefix. Delete the compatdata folder first
# which contains symlinks. Amazon S3 does not support
# uploading symbolic links, which will cause improper upload.
rm -rf ~/PackagedApplication/Proton/compatdata

aws s3 sync ~/PackagedApplication s3://<USER_BUCKET>/PackagedApplication

For more information on uploading files to Amazon S3 using the sync command, see the Amazon S3 sync AWS CLI documentation.

Step 2: Calling Amazon GameLift Streams CreateApplication API

Once the Packaged Application files are in Amazon S3, you can call the Amazon GameLift Streams CreateApplication API using the AWS CLI. On your terminal, enter the commands:

aws gameliftstreams create-application --description "PackagedApplication" \
--runtime-environment Type=UBUNTU,Version=22_04_LTS \
--executable-path "MyRunnerScript.sh" \
--application-source-uri "s3://<USER BUCKET>/PackagedApplication"

For more information on creating an application on Amazon GameLift Streams, see the CreateApplication API documentation.

The Amazon GameLift Streams Linux application is now ready to be associated with a Stream Group and streamed. A stream session can be started through the console. See the Testing a stream session in the console section in the Amazon GameLift Streams developer guide.

Works on Linux but not on Amazon GameLift Streams

If your game works on your Linux machine but not Amazon GameLift Streams, then it may not currently be compatible with the service and requires further debugging. For feedback or questions, reach out to your AWS representative or Sales Support for further assistance.

Cleanup

When it is no longer in use, the Amazon GameLift Streams application, and artifacts uploaded to Amazon S3, can be deleted to avoid incurring future costs. In the following code snippet, replace the <USER_BUCKET> with your S3 bucket and <APPLICATION_IDENTIFIER> with the identifier returned when creating the application. Then enter the commands in your terminal:

# Delete resource on Amazon S3, e.g.
aws s3 rm s3://<USER_BUCKET>/PackagedApplication/ --recursive

# Clean resource on Amazon GameLift Streams
aws gameliftstreams delete-application --identifier <APPLICATION_IDENTIFIER>

For more information on resource cleanup, see the Amazon S3 rm AWS CLI documentation and Amazon GameLift Streams DeleteApplication API documentation.

Conclusion

We showed how to create a Linux Runtime application on Amazon GameLift Streams by packaging Proton 10, an Unreal Engine 5.6 game, and a Bash script as the application executable together. This approach can be an alternative method when managed Proton versions on Amazon GameLift Streams are not compatible with your game.
