How Zynga scaled multi-warehouse data governance with Amazon Redshift federated permissions

Zynga, a global leader in interactive entertainment operates a portfolio of mobile game studios including Socialpoint, the creators of Dragon City and Monster Legends. Zynga’s analytics platform processes telemetry and revenue data across studios using Amazon Redshift as its central data warehouse.

As Zynga expanded its analytics architecture to include individual studios with their own compute environments, the team faced a challenge: how to maintain centralized data governance while granting studios independent query capacity. Their existing approach to permission management introduced lag and required custom infrastructure if scaled to multiple warehouses.

In this post, we walk through how Zynga adopted Amazon Redshift federated permissions and AWS IAM Identity Center to enforce consistent, tiered data access across provisioned and serverless Amazon Redshift environments without building custom synchronization pipelines.

The challenge

Zynga needed to onboard Socialpoint’s current Amazon Redshift workloads and make Zynga’s central data available to them. Zynga’s existing production cluster would house the Socialpoint raw data, but the compute would come from another warehouse set up as a consumer. At the same time, Zynga’s data access control policies would need to be enforced across all warehouses. Zynga uses a tiered access control policy which would need to be synced across all consumers with no permission lag or manual grant synchronization.

During the migration, Socialpoint’s specific extract, transform, and load (ETL) processes would be included in Zynga’s central ETLs and their data ingestion pipeline would be replaced by Zynga’s latest generation of data ingestion infrastructure. Because the migration process happens in stages, Amazon Redshift sizing would also gradually need to increase.

The team evaluated two alternatives before arriving at a solution:

• AWS Lake Formation couldn’t manage local and cross-cluster permissions using the same interface, and required AWS Access and Identity Management (IAM) or IAM Identity Center authentication for all users including service accounts.
• Manual grants on consumer clusters introduced a delay between when permissions were updated on the producer and when they took effect on the consumer. This approach would also require an external job that synced permissions and would be unlikely to scale well beyond 2–3 consumers.

Solution overview

Zynga implemented a solution using three AWS services working together:

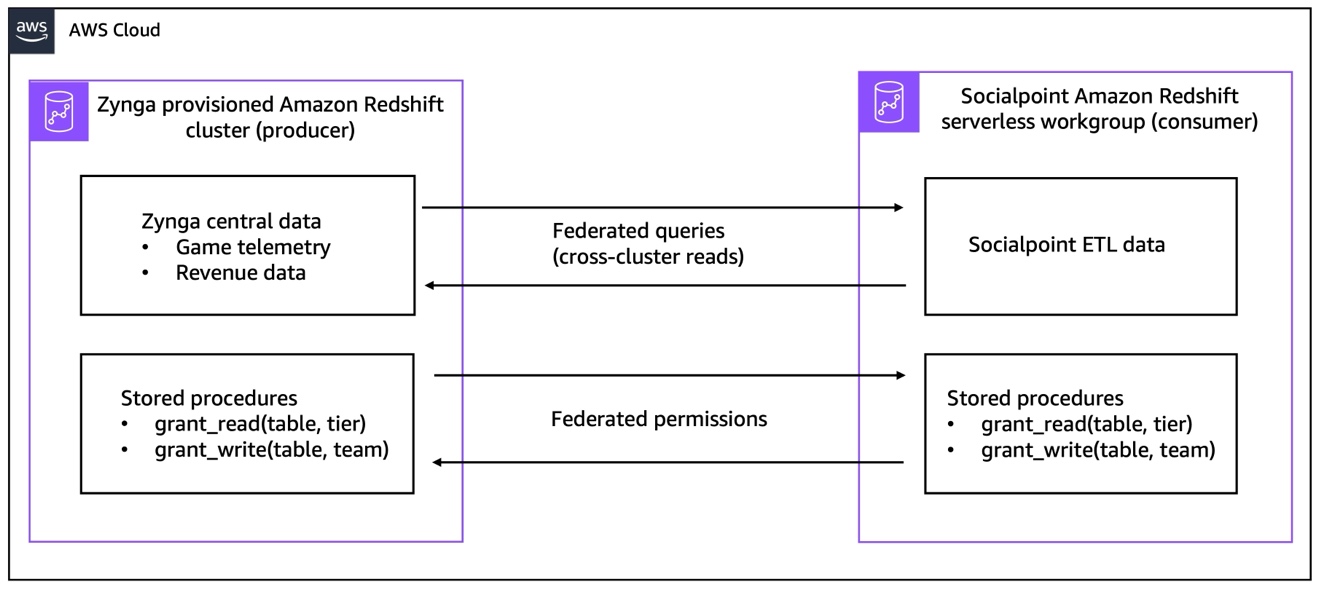

1. Amazon Redshift federated permissions enabled cross-cluster queries without explicit data shares. Permissions granted on the producer cluster propagate immediately to consumer workgroups through AWS Glue Data Catalog registration.
2. AWS IAM Identity Center provides unified authentication through federation with Okta. When users sign in, their Okta group memberships are provisioned through a System for Cross-domain Identity Management (SCIM) and automatically map to Amazon Redshift roles, removing the need for external synchronization jobs.
3. Amazon Redshift Serverless provides the compute layer for Socialpoint, scaling to zero when idle and avoiding the need to pre-size a provisioned cluster during the migration period.

The architecture uses a dual-grant approach where every permission is granted to both an IAM Identity Center group (for users) and a federated IAM role (for service accounts). This gives both authentication paths the same access.

How it works

Authentication with IAM Identity Center

Zynga’s existing Okta directory syncs to IAM Identity Center, which is connected to the Amazon Redshift Serverless workgroup. When a user authenticates, Amazon Redshift automatically creates a user mapped to their email address and assigns them to roles based on their Okta group membership.

For example, an analyst in the Gamma Tier group signs in and is automatically assigned the AWSIDC:role.sso.gamma role in Amazon Redshift. No manual role assignment or synchronization job is required.

Service accounts, used for programmatic access, authenticate differently. Either using their IAM role and calling the get-credentials API, or by using the new federated permissions feature. Each service account assumes a federated IAM role, which creates a corresponding federated user in Amazon Redshift (for example, IAMR:role_iam_gamma).

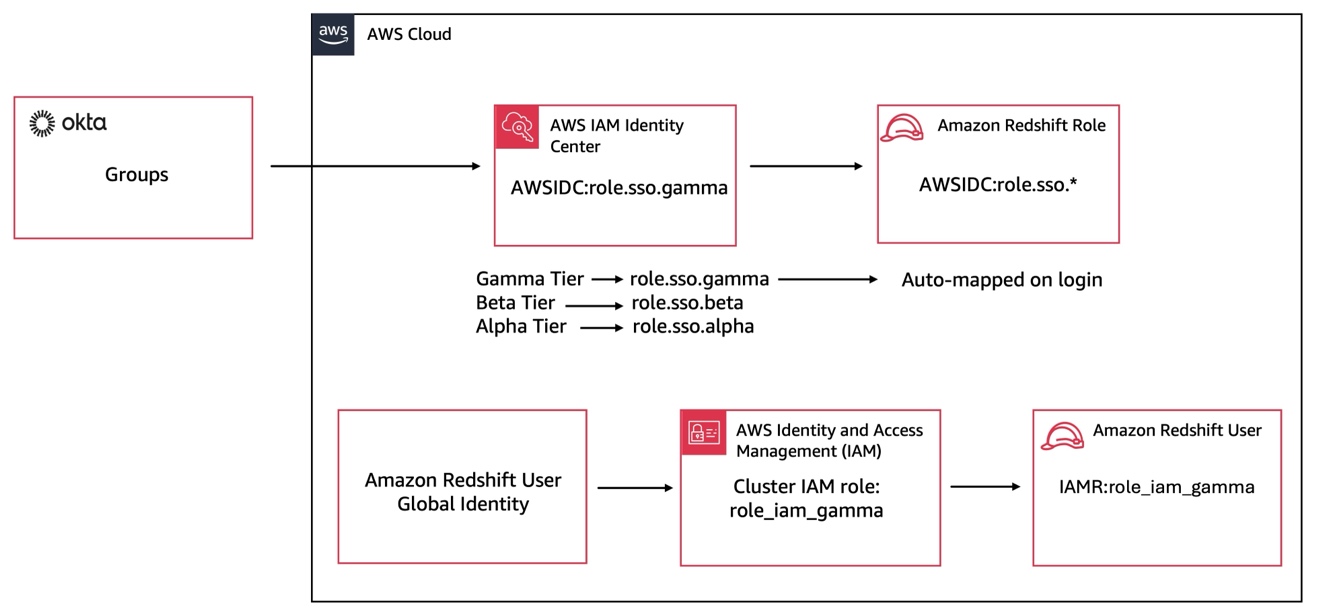

Figure 1 – Identity layer

The dual-grant approach

To ensure that both users and service accounts can access the same data, every read permission is granted to both the IAM Identity Center group and the federated IAM role in a single statement:

GRANT SELECT ON schema.table TO
	'IAMR:role_iam_gamma',
	ROLE 'AWSIDC:role.sso.gamma';

GRANT SELECT ON schema.table TO
	ROLE role_rs_gamma,
	ROLE 'AWSIDC:role.sso.gamma','IAMR:role_iam_gamma';
