Real-time patient monitoring architecture on AWS for smart inhalers

According to the National Institutes of Health (NIH), respiratory diseases such as asthma and chronic obstructive pulmonary disease (COPD) affect an estimated 545 million individuals worldwide, creating significant challenges for both patients and healthcare providers. Modern solutions now enhance treatment outcomes by providing near real-time insights into medication adherence and disease progression, offering improvements over traditional management approaches.

Smart medical devices collect treatment and medication usage data, giving healthcare providers real-time visibility into patient care regimens. This post presents a reference architecture and data-driven approach for respiratory care management using smart inhalers. These devices combine advanced electronic sensor technology with cloud-based data analytics to deliver insights into both patient behavior and treatment effectiveness by monitoring medication usage patterns and breathing techniques.

Respiratory disease management challenges, and benefits of smart inhalers

Healthcare organizations need better tools to track inhaler use, provide proactive care, and understand what triggers patients’ respiratory symptoms. Without proper monitoring, healthcare providers can’t verify inhaler use or create personalized treatment plans. Patients want quick feedback to help them manage their condition better, which can lower healthcare costs.

A smart inhaler system, architected on Amazon Web Services (AWS), provides an opportunity through early risk detection, where continuous monitoring enables identification of potential health issues before they escalate into serious exacerbations. This enables personalized treatment optimization based on actual usage patterns, shifting from reactive to proactive care while enhancing patient engagement through interactive health tracking.

Smart inhalers provide predictive capabilities through advanced analytics, offering forward-looking insights for anticipatory care planning. The solution bridges the information gap between clinical visits by creating a comprehensive picture of patient condition, environmental triggers, and medication response patterns. This integrated approach delivers measurable improvements by reducing emergency visits and care costs, resulting in better outcomes, enhanced quality of life, and optimized resource utilization through data-driven interventions, according to an evidence review by the National Institute for Health and Care Excellence.

Solution overview

Every time a patient uses their smart inhaler, it generates patient health data. To capture the valuable data, this solution uses AWS IoT Core, creating a direct and reliable connection between medical devices and cloud infrastructure. As each inhaler records usage patterns, medication doses, and patient interactions, the data is securely transmitted using a scalable Internet of Things (IoT) network to Amazon Managed Streaming for Apache Kafka (Amazon MSK), a fully managed, highly available Apache Kafka service.

Amazon Redshift Streaming Ingestion ingests data directly from Amazon MSK and performs transformations on the streaming data. This allows the system to immediately cleanse, normalize, and structure the incoming inhaler telemetry without additional processing layers. The solution converts complex medical device data into analytics-ready information while supporting Health Insurance Portability and Accountability Act (HIPAA) compliance and data integrity.

Within Amazon Redshift, the solution also combines multiple data sources, enriching inhaler usage patterns with patient electronic health records (EHRs), environmental data, and geolocation information. This creates a comprehensive view of respiratory health factors that impact patient outcomes.

The solution allows healthcare providers and clinicians to ask natural language questions about patient adherence, medication effectiveness, and environmental triggers. Amazon Quick Sight in Amazon Quick Suite provides AI-powered business intelligence capabilities that transform data into actionable insights through natural language queries and interactive visualizations such as:

• Identifying patients with increased inhaler usage during high pollen count days
• Identifying patterns of rescue medication use by geographic location
• Comparing controller medication adherence across patient demographics

Healthcare teams can use this end-to-end solution to monitor patient populations in near real time, predict asthma exacerbations, and develop personalized treatment plans based on comprehensive, data-driven insights.

Solution workflow

The integrated respiratory management solution enables comprehensive patient monitoring and analysis through a seamless data pipeline that collects, processes, and analyzes inhaler usage data to provide actionable healthcare insights. The following steps describe the end-to-end process:

1. Smart inhaler data capture – Bluetooth-enabled smart inhalers capture detailed medication usage events, including timing, activation indicators, and dosage information.
2. Secure data transmission – When patients use their inhalers, connected devices transmit data securely through the AWS IoT Core network, which handles both authentication and initial processing.
3. High-volume data streaming – The streaming data is fed into Amazon MSK for reliable, high-throughput handling of continuous data from thousands of connected devices.
4. Streaming data analytics – Data from Amazon MSK data streams is ingested directly into Amazon Redshift using Amazon Redshift Streaming Ingestion feature for, enabling near real-time analytics on streaming data.
5. Data enrichment – Each inhaler usage event is enriched by incorporating:
   • Patient health data for clinical context, and this data can be available from the service provider’s health records
   • Weather data from meteorological services to identify environmental triggers
   • Precise geolocation information to establish physical context
6. Insight generation – Amazon Quick Sight in Amazon Quick Suite analyzes this multidimensional dataset to deliver actionable insights through interactive dashboards.
7. Clinical decision support – Healthcare providers access comprehensive evaluations of patient behavior and environmental factors affecting asthma control, enabling informed decisions and timely interventions.

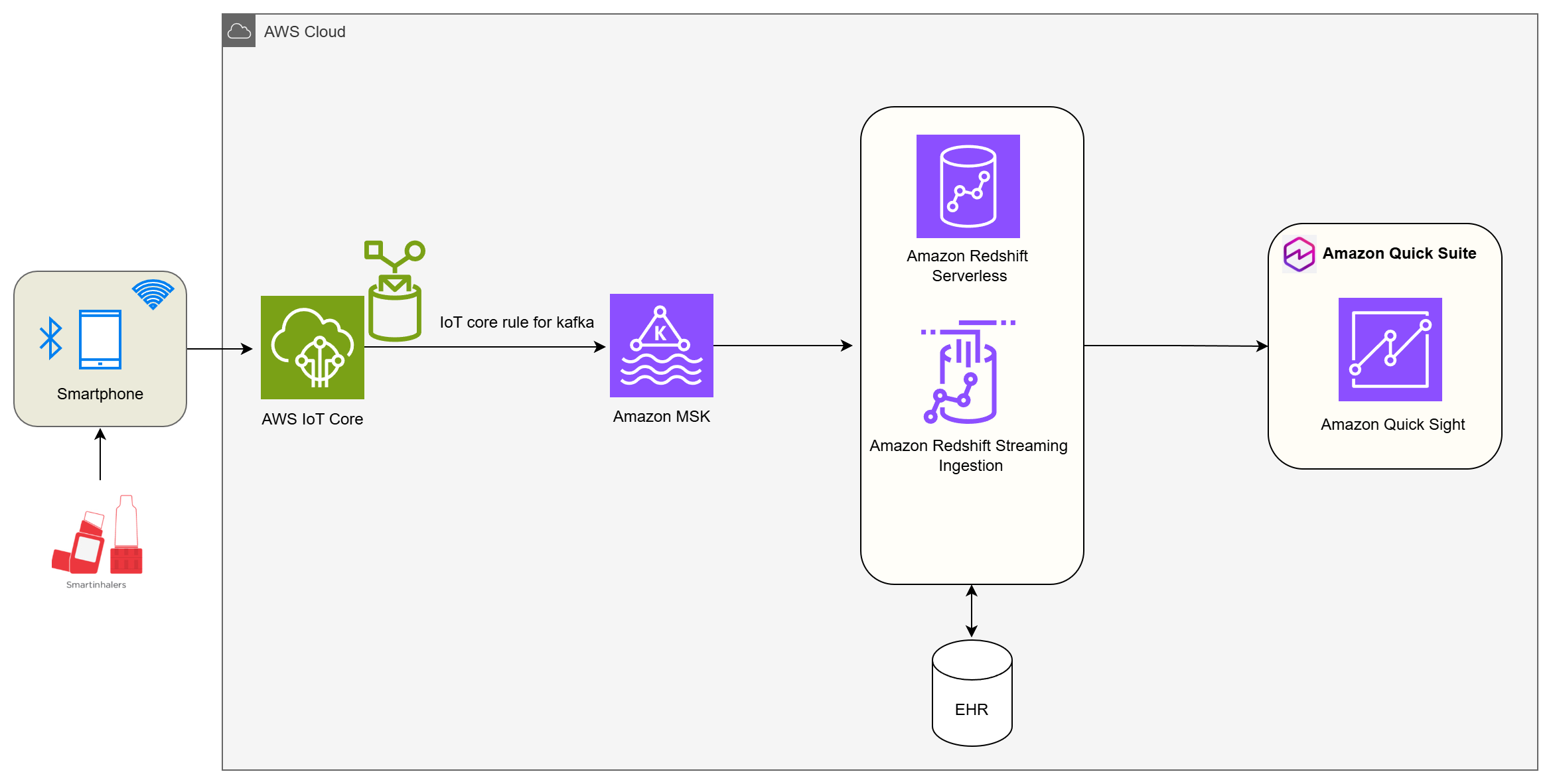

The following diagram illustrates the solution architecture:

This integrated respiratory management solution transforms raw inhaler usage data into valuable clinical insights through a systematic process that combines IoT connectivity, cloud-based data processing, and advanced analytics, ultimately improving asthma management and patient outcomes.

Data analytics and patient health insights

Now that we’ve established the technical foundation of our smart inhaler solution, let’s explore how it operates in real-world healthcare scenarios. Converting raw device data into actionable clinical insights requires not only technical infrastructure but also thoughtful analytics design. To illustrate the transformative potential of this solution, we examine how it functions within a typical patient journey. By following a representative case, we demonstrate how the data pipeline translates into meaningful health interventions. The following patient scenario illustrates how the AWS architecture we’ve described addresses specific clinical challenges in respiratory care management. This example shows how healthcare providers can improve patient outcomes through data-driven personalized care planning by combining inhaler usage patterns with EHRs, environmental data, and geolocation information.

The patient scenario, names, and healthcare organizations described in the following sections are entirely fictional and used for illustrative purposes only. Ana Carolina (the patient) and the AnyCompany Regional Health System (ACRHS) are representative examples created to demonstrate the practical applications of the AWS smart inhaler solution. These fictional cases don’t represent actual patients, healthcare providers, or medical institutions. They merely serve as a narrative framework to help contextualize how the technical architecture translates into real-world healthcare improvements through data-driven insights.

The patient scenario

Ana Carolina, a 45-year-old marketing executive with severe asthma, has struggled for years to manage her condition. Despite having a prescribed treatment regimen, she experiences unpredictable exacerbations that disrupt her work and family life, leading to frequent urgent care visits and occasional hospitalizations. Her healthcare providers at ACRHS have limited visibility into her day-to-day medication usage, environmental triggers, and early warning signs of deterioration.

After enrolling in ACRHS’s smart inhaler program, Ana receives a smart inhaler device that tracks her medication usage, inhalation technique, and local environmental conditions. The device connects to her smartphone through Bluetooth, uploading critical respiratory health data in near real-time to ACRHS’s AWS powered analytics system. Within weeks, her care team identifies that Ana consistently misses her evening doses on workdays, uses incorrect inhalation technique, and experiences symptom spikes when air quality deteriorates—insights that enable targeted interventions and a personalized care plan.

Smart inhaler data collection overview

To effectively address Ana’s respiratory management challenges and similar patient scenarios, the ACRHS smart inhaler solution relies on several key datasets as described in the following list. These datasets represent the information that is analyzed through this AWS solution. All data described is synthetic and created solely for demonstration purposes, not derived from real patient records or medical institutions. These realistic examples show how a smart inhaler system can combine different data types to provide a comprehensive view of respiratory health management.

1. Medication adherence data – The medication adherence dataset tracks when patients use their maintenance inhalers compared to their prescribed regimen. It includes timestamps of inhaler activations, identifies whether doses were taken as prescribed, and captures day-of-week patterns to reveal behavioral factors affecting medication compliance.
2. Inhalation technique data – This dataset measures key parameters of medication delivery including inhalation duration, device angle, and breath-hold time. These measurements are critical because improper technique significantly reduces medication effectiveness, potentially explaining why patients with seemingly good adherence might still experience symptoms.
3. Environmental trigger data – By combining air quality measurements, pollen counts, temperature, and humidity data with rescue inhaler usage, this dataset helps identify specific environmental triggers for individual patients. This information enables personalized recommendations for avoiding or preparing for high-risk conditions.
4. Symptom reporting data – Patient-reported health status provides crucial context to the objective sensor data. This includes severity ratings for symptoms such as wheezing or coughing, impact on daily activities, and sleep disruption, helping clinicians understand the subjective experience of the disease.
5. Exacerbation risk data – This aggregated dataset helps identify high-risk individuals by combining factors such as prior exacerbation history, specific symptoms, coexisting conditions, and medication usage. It calculates a risk score to predict the probability of respiratory deterioration, enabling healthcare providers to intervene with more intensive monitoring or preventative treatment before serious symptoms occur.
6. Geographic health mapping – By connecting location data with environmental measurements and symptoms, this dataset helps explain how different environments affect respiratory health. It enables location-specific guidance and reveals patterns such as industrial zones or high-traffic areas that might consistently trigger symptoms.
7. Treatment efficacy assessment – This longitudinal dataset evaluates how medication changes affect patient outcomes by comparing health metrics before and after treatment adjustments. It tracks rescue medication usage frequency and overall symptom control to guide evidence-based modifications to treatment plans.

The AWS solution provides the technical infrastructure to securely collect, store, and analyze these interrelated datasets, with AWS IoT Core managing device connections, Amazon MSK handling streaming data, Amazon Simple Storage Service (Amazon S3) providing scalable storage, and Amazon Redshift enabling the complex analytics needed to derive actionable insights.

Democratizing data access from clinical questions to actionable insights

With an understanding of the datasets collected through the smart inhaler system, we can now explore specific use cases that demonstrate how healthcare providers can use this information to improve patient care. The AWS solution architecture enables healthcare teams to transform raw respiratory data into actionable clinical insights through powerful analytics capabilities. However, healthcare professionals often lack technical expertise in data analysis when trying to identify at-risk patients.

Traditional methods require either specialized SQL knowledge or dependence on data analysts, creating bottlenecks that delay critical clinical interventions. Clinicians need a way to directly interrogate patient data without technical barriers, particularly when time-sensitive decisions about medication adherence could help prevent serious exacerbations.

Amazon Quick Sight in Amazon Quick Suite transforms how clinicians interact with patient data by enabling natural language queries against complex healthcare datasets. Instead of navigating database schemas or writing code, a respiratory specialist can type a conversational question and extract the relevant insights.

In the following use cases, we demonstrate how healthcare professionals can use this natural language interface to analyze different aspects of respiratory care without repetitive technical processes. Each use case showcases a specific clinical question that generates an immediate SQL query so providers can focus on the insights rather than the underlying technical implementation. This consistent approach throughout means that clinicians can address diverse respiratory management challenges through an intuitive, conversation-based analytical process.

Use case 1: Medication adherence analysis

Consistent medication adherence represents a critical factor in successful respiratory disease management, with irregular usage patterns often preceding exacerbations and hospitalizations. ACRHS respiratory specialists need to quickly identify which patients might benefit from additional support to maintain their treatment regimens.

For this analysis, a clinician can ask: Show me patients with less than 70% adherence to maintenance medication over the last 90 days.

The resulting query analyzes usage patterns across the patient population, revealing not only who might be struggling with adherence but also when and how these patterns occur. Clinicians can use the system to identify if adherence issues concentrate around specific times such as weekends or workdays, and include additional factors such as medication types, patient demographics, or correlations with appointment attendance—transforming complex data into actionable insights for targeted interventions.

The following SQL query was generated by Amazon Q:

SELECT patient_id, day_of_week, COUNT(CASE WHEN prescribed = TRUE THEN 1 END) AS prescribed_doses,
    COUNT(CASE WHEN prescribed = TRUE AND taken = TRUE THEN 1 END) AS taken_doses,
    ROUND(100.0 * COUNT(CASE WHEN prescribed = TRUE AND taken = TRUE THEN 1 END) /
         NULLIF(COUNT(CASE WHEN prescribed = TRUE THEN 1 END), 0), 2) AS adherence_percentage
FROM adherence_data
WHERE dose_type = 'maintenance' AND timestamp >= CURRENT_DATE - INTERVAL '90 days'
GROUP BY patient_id, day_of_week
HAVING ROUND(100.0 * COUNT(CASE WHEN prescribed = TRUE AND taken = TRUE THEN 1 END) /
         NULLIF(COUNT(CASE WHEN prescribed = TRUE THEN 1 END), 0), 2) < 70

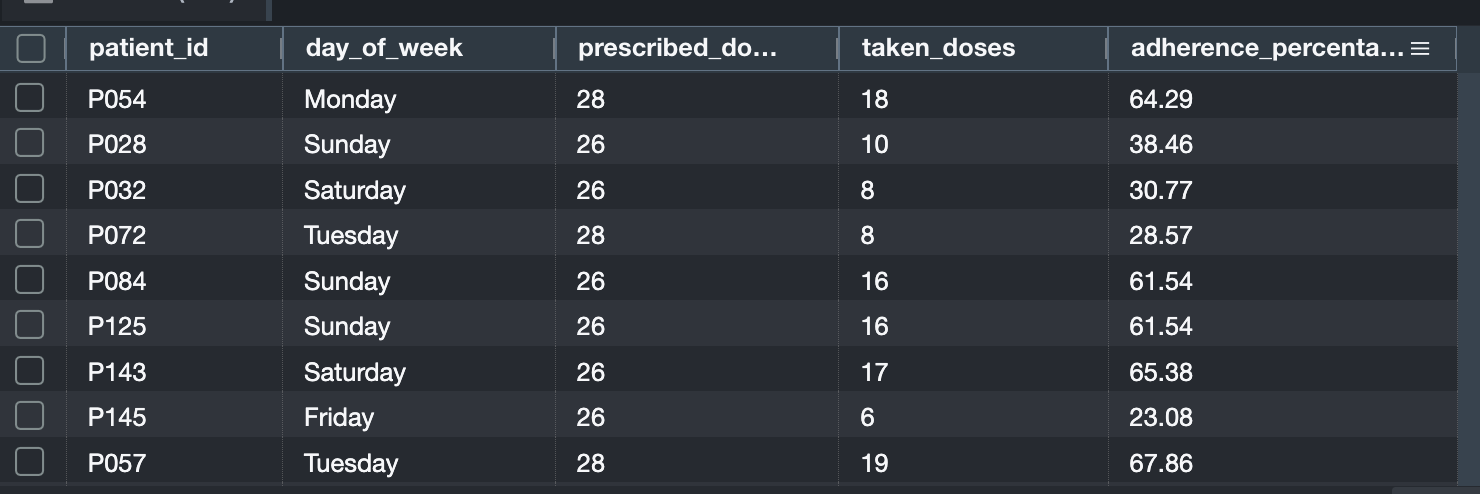

The following screenshot shows the patients with less than 70% adherence and how it varies on different days of the week:

Use case 2: Environmental trigger identification

Environmental factors can significantly impact respiratory conditions, but identifying specific triggers across diverse geographic areas presents a complex analytical challenge. The respiratory care team at ACRHS needs to understand how pollutants affect their patient population to develop location-specific intervention strategies for high-risk days and provide targeted guidance to patients.

To gain these insights, clinicians can formulate a straightforward question: Find the correlation between air quality measurements and rescue inhaler usage across different regions, showing which locations have the strongest relationship between poor air quality and medication use.

This query enables healthcare providers to discover which environmental conditions most strongly correlate with symptom exacerbation, helping them develop proactive alert systems and personalized recommendations based on patients’ geographic locations and specific environmental sensitivities.

The following SQL query was generated by Amazon Q:

WITH aqi_categories AS (
    SELECT
        CASE
            WHEN air_quality_index <= 50 THEN 'Good (0-50)'
            WHEN air_quality_index <= 100 THEN 'Moderate (51-100)'
            WHEN air_quality_index <= 150 THEN 'Unhealthy for Sensitive Groups (101-150)'
            WHEN air_quality_index <= 200 THEN 'Unhealthy (151-200)'
            ELSE 'Very Unhealthy (201+)'
        END AS aqi_category, patient_id, air_quality_index
    FROM smart_inhaler_db.rescue_inhaler_data
)
SELECT
    aqi_category,
    COUNT(*) AS rescue_inhaler_uses,
    COUNT(DISTINCT patient_id) AS patients_affected,
    AVG(air_quality_index) AS avg_aqi
FROM aqi_categories
GROUP BY aqi_category
ORDER BY
    CASE
        WHEN aqi_category = 'Good (0-50)' THEN 1
        WHEN aqi_category = 'Moderate (51-100)' THEN 2
        WHEN aqi_category = 'Unhealthy for Sensitive Groups (101-150)' THEN 3
        WHEN aqi_category = 'Unhealthy (151-200)' THEN 4
        WHEN aqi_category = 'Very Unhealthy (201+)' THEN 5
    END;

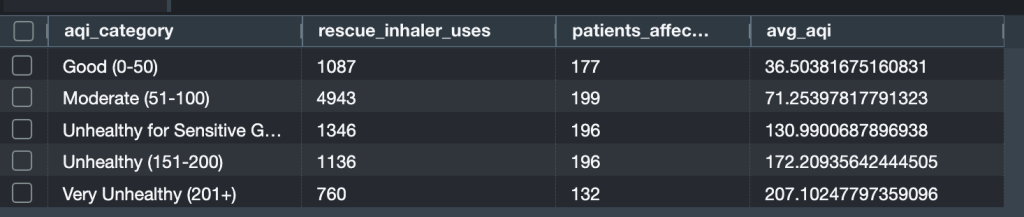

The following screenshot shows the relation between the air quality and the rescue inhaler usage:

Use case 3: Exacerbation risk prediction dashboard

Preventing respiratory exacerbations requires identifying at-risk patients before they experience severe symptoms. Clinical managers need a comprehensive geographic view of their patient population to allocate resources effectively, coordinate care team responses, and implement timely interventions. Traditional methods of risk analysis often fail to surface critical patterns that emerge when combining location data with clinical metrics.

To address this need, managers can request: Create a dashboard showing patients with high exacerbation risk in the next 72 hours. Include their risk scores, symptom severity trends, recent medication adherence, and environmental exposure levels. Group patients by risk level and care provider.

First, Amazon Quick Sight in Amazon Quick Suite generates the appropriate SQL query to extract and analyze the relevant data across multiple dimensions. This query aggregates patient counts, symptom severity, rescue inhaler usage, and air quality measurements by geographic location. The results are then seamlessly integrated into Amazon Quick Sight, which transforms the analytical output into an interactive geographic heat map.

The following SQL query was generated by Amazon Q:

SELECT g.zipcode, g.city, g.state,
    AVG(g.latitude) AS latitude,
    AVG(g.longitude) AS longitude,
    COUNT(DISTINCT g.patient_id) AS patient_count,
    ROUND(AVG(g.symptom_severity), 6) AS avg_symptom_severity,
    ROUND(AVG(g.rescue_inhaler_uses), 6) AS avg_rescue_inhaler_uses,
    ROUND(AVG(g.air_quality_index), 6) AS avg_aqi
FROM smart_inhaler_db.geographic_data g
WHERE g.date >= CURRENT_DATE - INTERVAL '90 DAYS'
GROUP BY g.zipcode, g.city, g.state
HAVING COUNT(DISTINCT g.patient_id) >= 5

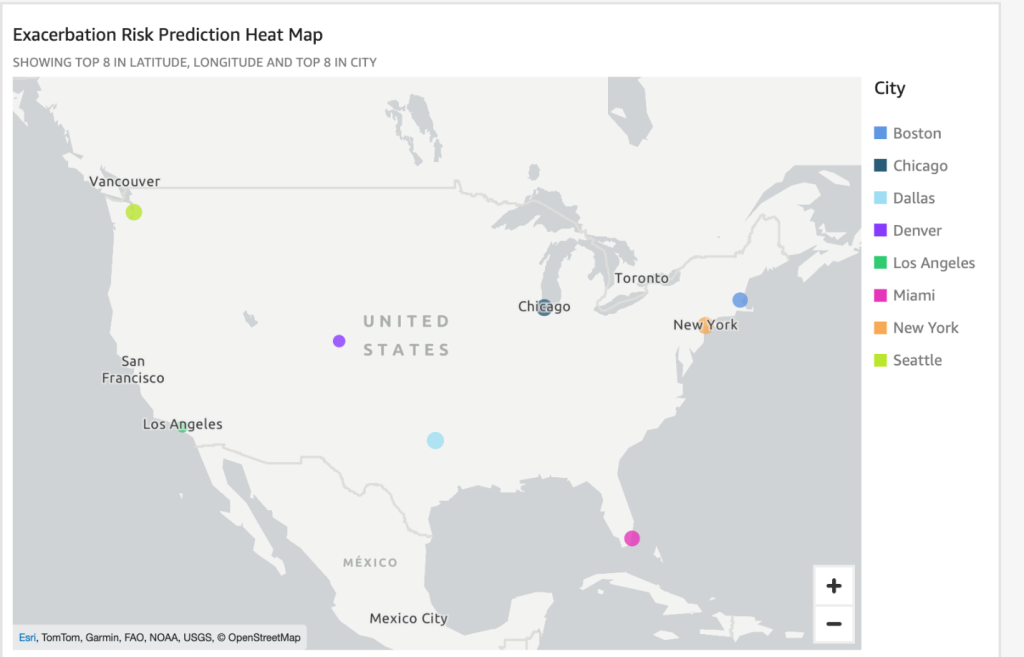

The resulting dashboard, accessible to clinical managers through browser-based interfaces or mobile devices, visualizes exacerbation risk across metropolitan areas. As shown in the following visualization, care coordinators can instantly identify risk clusters in various regions throughout the country. The color-coded map provides immediate geographic context that would be difficult to discern from tabular data alone.

Healthcare systems can rely on this spatial representation to deploy targeted interventions based on geographic patterns, potentially revealing environmental or regional factors contributing to respiratory distress. The intuitive dashboards in Amazon Quick Sight help clinical staff explore complex data without needing technical skills. Staff can filter information in real time to make data-driven decisions about resource allocation and preventive outreach strategies.

Security and compliance

AWS services including AWS IoT Core, AWS IoT Device Defender, Amazon Redshift, Amazon MSK, AWS KMS, Amazon Virtual Private Cloud (Amazon VPC), AWS Identity and Access Management (IAM), and AWS CloudTrail are HIPAA eligible services that support this healthcare solution.

The smart inhaler solution implements a multilayered security architecture using the comprehensive infrastructure of AWS to support healthcare industry compliance. Powered by AWS IoT Core, the device security layer enforces X.509 certificate-based authentication with AWS IoT Device Defender providing continual monitoring. Data transmission is encrypted using TLS 1.2+ protocols, with fine-grained AWS IoT Core policies facilitating precise access control.

Data storage and processing implement comprehensive protection across multiple AWS services. Amazon Redshift provides encryption at rest using AWS KMS, with column-level encryption for sensitive health data. The system operates within VPC isolation, protected by security groups and IAM roles. The solution supports alignment with many healthcare compliance standards, including HIPAA, AWS System and Organization Controls (SOC), International Organization for Standardization (ISO) and General Data Protection Regulation (GDPR).

Cross-component security is maintained through end-to-end encryption and private network connectivity using AWS PrivateLink. AWS CloudTrail comprehensively monitors the system, with centralized IAM controls governing interactions. This approach provides defense in depth, helping to protect sensitive healthcare data while maintaining flexibility for effective respiratory care management.

Conclusion

Patient monitoring through smart inhalers represents an advancement in respiratory care management. By using AWS managed services such as AWS IoT Core, Amazon MSK, and Amazon Quick Sight in Amazon Quick Suite, healthcare organizations can build secure solutions that transform raw device data into actionable clinical insights.

This data-driven approach enables healthcare providers to move from reactive to proactive care models, optimizing treatment plans based on actual patient behavior rather than self-reported information. The result is better disease control, reduced emergency interventions, and improved quality of life for millions of respiratory patients worldwide.As healthcare continues to embrace digital transformation, smart inhaler solutions provide a compelling example of how cloud technologies can deliver significant improvements in chronic disease management, ultimately leading to better outcomes and more cost-effective care delivery.
