Data connectivity, storage, analytics and alerting are the foundational elements of predictive maintenance. However, companies have historically needed skilled technicians and data scientists to install the necessary sensors and infrastructure, and create a complex solution from scratch.
Amazon Monitron captures vibration and temperature data from your equipment via wireless sensors, which can be set up in minutes using the Amazon Monitron mobile app with no ML experience or development work required. The Amazon Monitron gateway device securely transfers data to AWS, and the service automatically analyzes your data for abnormal machine conditions using machine learning. You can start monitoring equipment health in minutes through the Amazon Monitron mobile app, and enable predictive maintenance with the same technology used to monitor equipment in Amazon Fulfillment Centers.
End-to-end system of wireless sensors and gateways
Amazon Monitron’s wireless sensors can easily attach to your equipment with adhesive, without the need for expensive and cumbersome cabling. These low-cost sensors are purpose-built to capture vibration and temperature data in order to monitor the condition of your rotating equipment. Amazon Monitron also includes Wi-Fi and ethernet gateways to transfer the sensor data to AWS. Amazon Monitron Sensors and Gateways are pre-configured to work with the Amazon Monitron service.

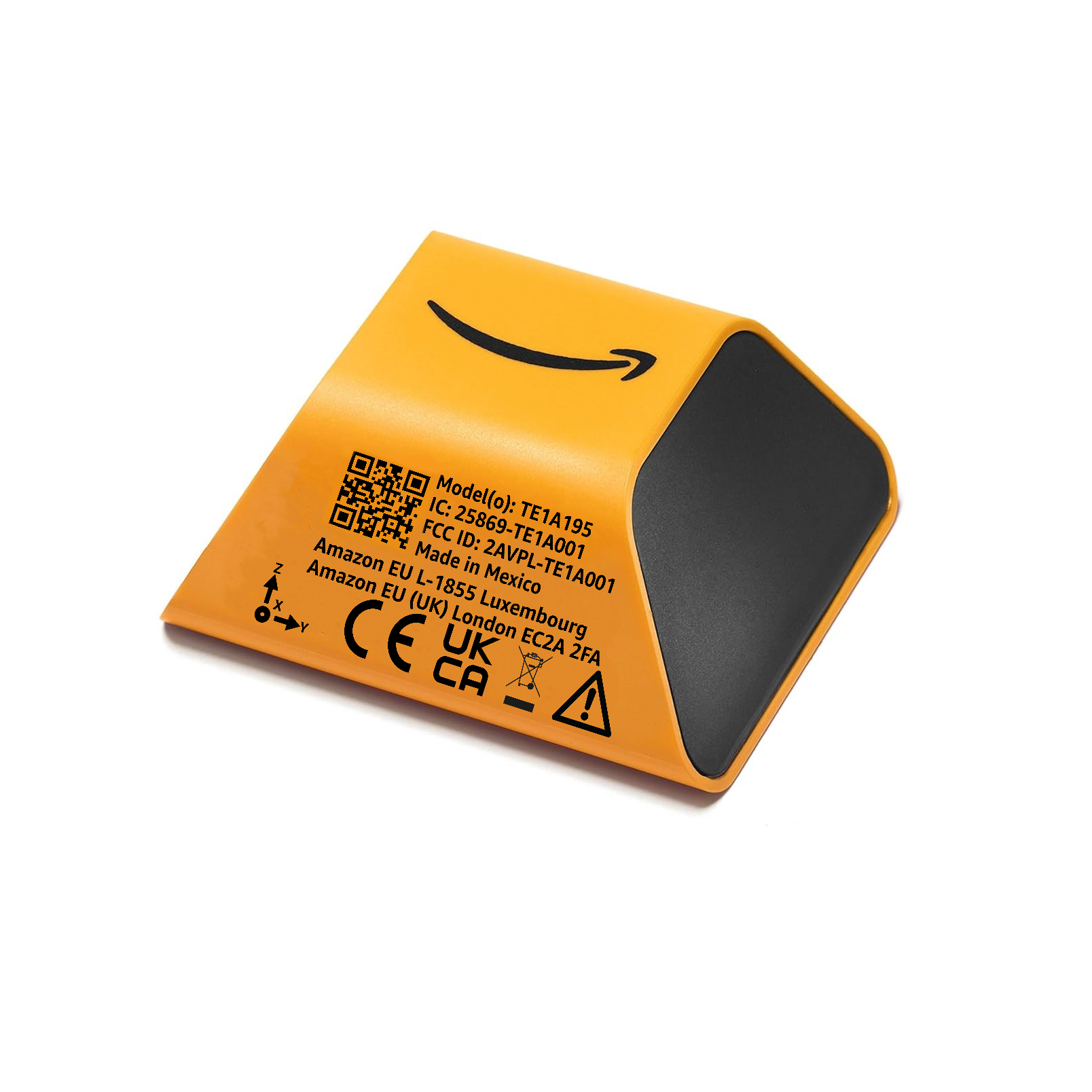

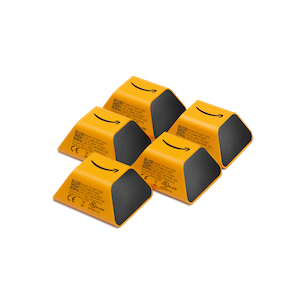

Amazon Monitron Sensors
|Dimensions||52.8 x 43.0 x 24.9 mm / 2.08 x 1.69 x 0.98 inch|
|Connectivity||Wireless protocol: Bluetooth Low Energy 5|
|Power||Lithium Metal Non-Rechargeable Batteries. Estimated 3 year battery life|

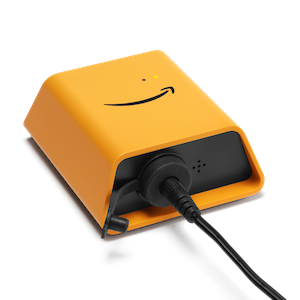

Amazon Monitron Gateway (Wi-Fi)
|Dimensions||90 x 78 x 38 mm / 3.6 x 3.1 x 1.5 inch|
|Connectivity||WiFi, 802.11b/g/n, ISM 2.4GHz only|
|Power||Power 5.0V - 2.0A DC, AC adapter included for USA, UK and EU countries (indoors only)

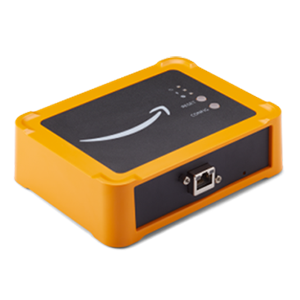

Amazon Monitron Gateway (Ethernet)
|Operating temperature||-20 + 60°C / -4 +140°F|
|Dimensions||13.9 x 10.7 x 4.1 cm, 5.5 x 4.2 x 1.6“|
|Weight||230 gr, 8.2 oz|
|Connectivity||RJ45 10 / 100Mbps|
|Power||IEEE 802.3 at type 1 (15.4 Watt Class)|

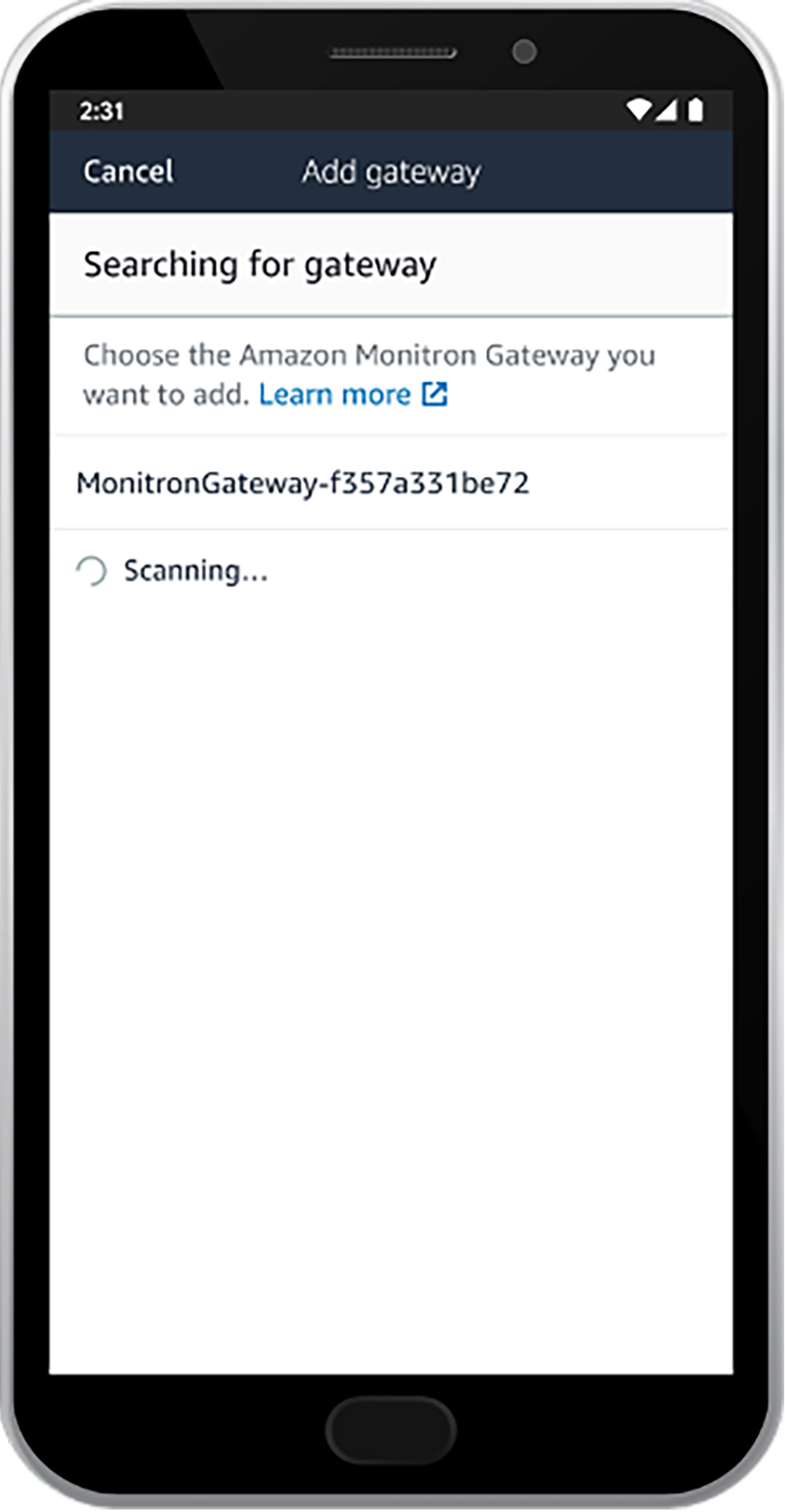

Simple device set-up with the Amazon Monitron Mobile App

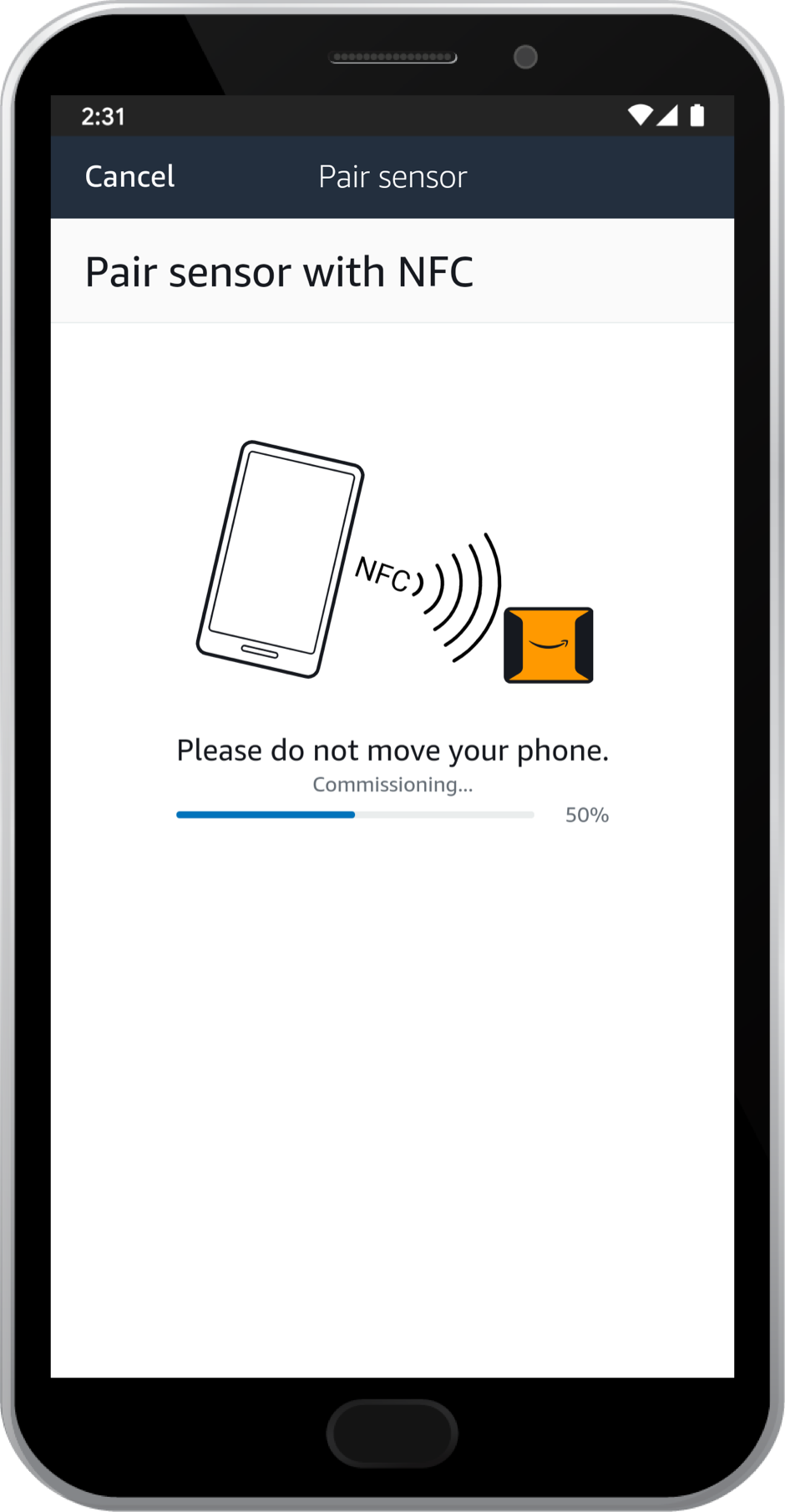

Set up Amazon Monitron Sensors quickly and easily by tapping your phone on the sensor utilizing near-field communication (NFC) technology. Set up your Gateway by following a few simple steps in the app. You can quickly install and start using these devices to monitor your equipment without any development work.
ISO and ML-based analytics
Amazon Monitron automatically detects abnormal machine operating states by analyzing vibration and temperature signals using the ISO 20816 standards for vibration, and ML-enabled models.

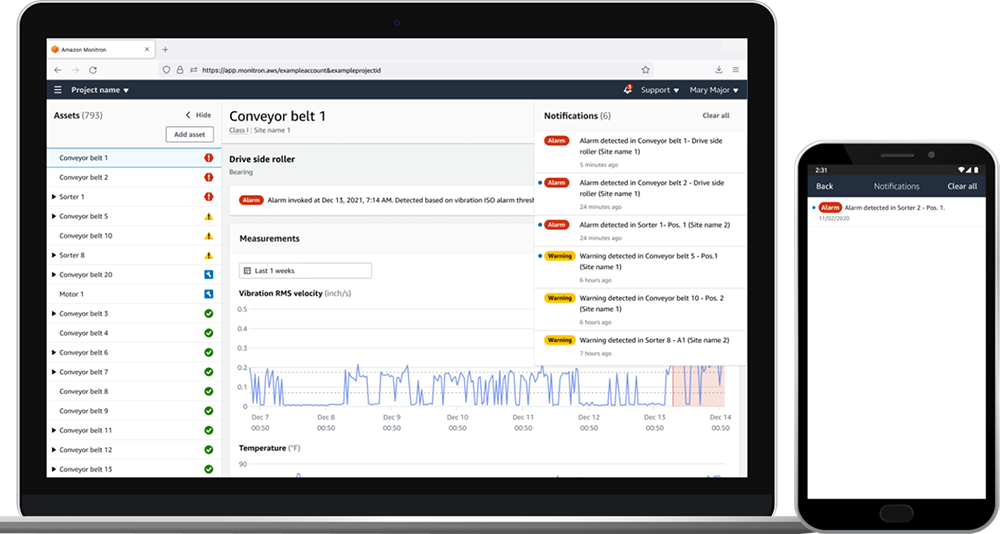

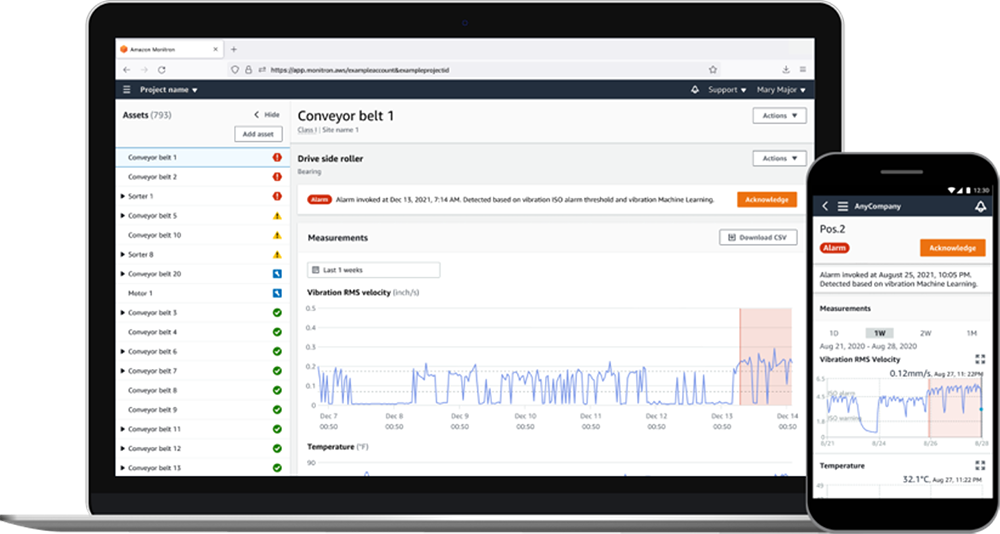

Timely notifications in the Amazon Monitron mobile app
Amazon Monitron sends push notifications when the service detects abnormal machine patterns from the vibration and temperature settings. You can also review and track these abnormal machine states within the app.
Mobile alert feedback
With just a few taps in the mobile app, you can enter feedback on the alerts received, such as failure mode, failure cause, and action taken. Amazon Monitron learns from that feedback and continually improves over time.
