CloudMapper - Network Diagrammer

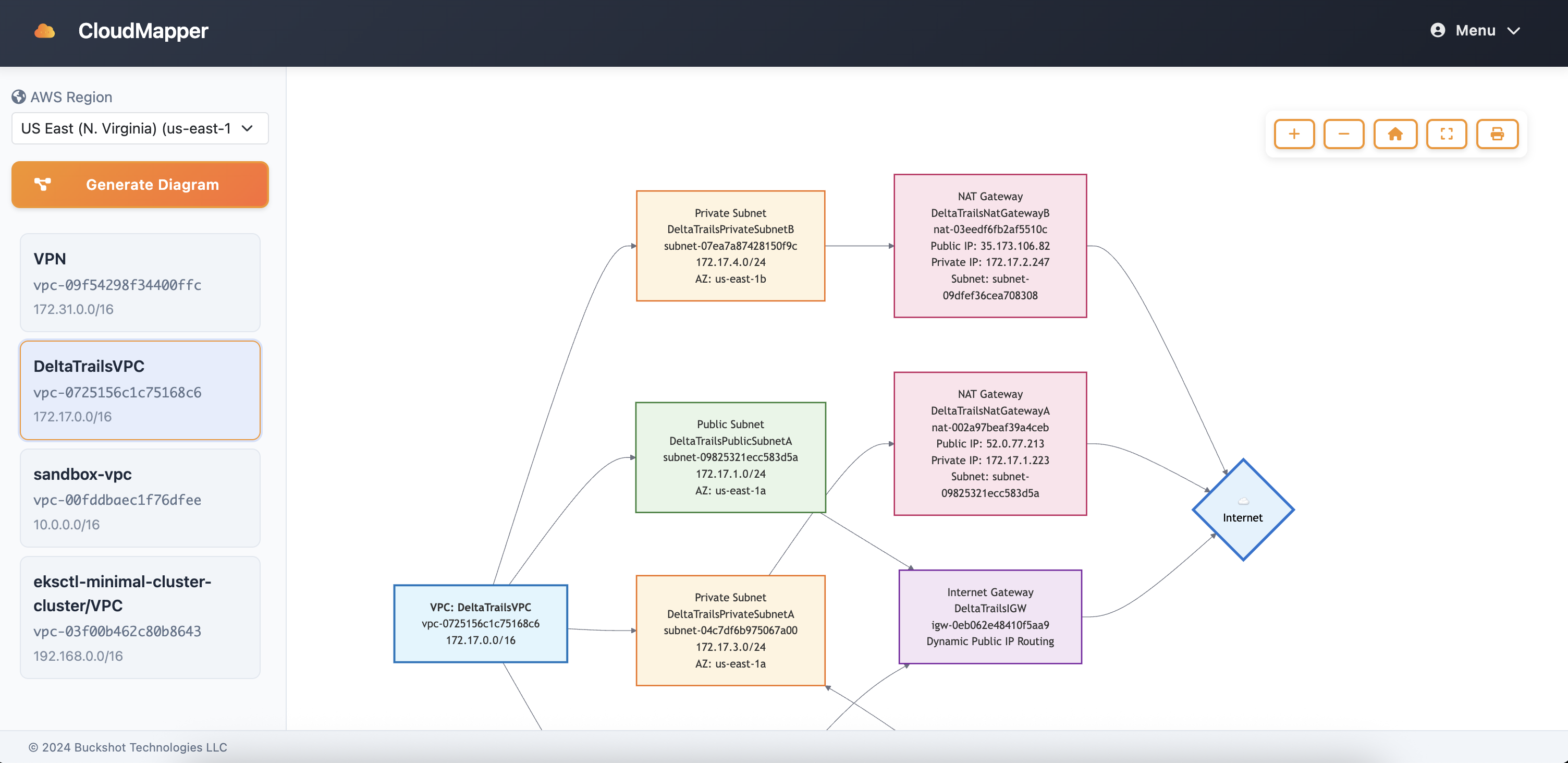

CloudMapper is a professional-grade AWS network topology visualization tool designed specifically for security-conscious enterprises operating in air-gapped, FIPS 140-2 compliant environments. Built by Buckshot Technologies, CloudMapper transforms complex VPC infrastructure into clear, interactive network diagrams that document network architecture across single or multiple AWS regions. The solution provides comprehensive visibility into VPC components including subnets, route tables, internet gateways, NAT gateways, transit gateways, VPC peering connections, and VPC endpoints, making it ideal for security audits, compliance documentation, disaster recovery planning, and network troubleshooting.

Security is at the core of CloudMapper's design. The application is distributed as a hardened Amazon Linux 2023 AMI with SSM-only access (SSH disabled by default), enforces FIPS 140-2 cryptographic standards, and operates with read-only IAM permissions to ensure zero impact on your AWS infrastructure. Multi-factor authentication (2FA) using TOTP is mandatory for all users, with optional OIDC integration for enterprise single sign-on. Password policies enforce 12-character minimum complexity requirements, and automatic expiration handling to maintain security compliance.

CloudMapper operates entirely within your AWS account with no external dependencies or data transmission, making it perfect for government, healthcare, financial services, and other regulated industries requiring air-gapped deployments. The intuitive web interface requires no training, supports both light and dark modes for comfortable viewing, and generates diagrams that can be exported for documentation or shared with stakeholders. Whether you're documenting network architecture for compliance audits, troubleshooting connectivity issues, or planning infrastructure changes, CloudMapper provides the visibility and security your organization demands.
