Overview
vmui query graph

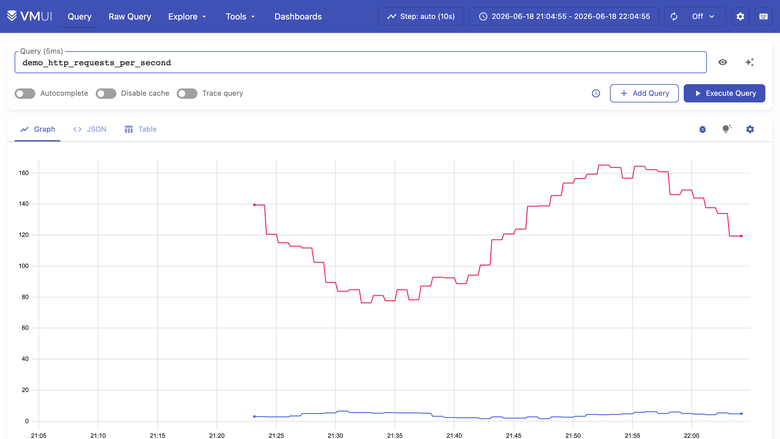

The vmui web interface, served on port 80 through an authenticating nginx proxy, graphing a MetricsQL query over the time series database.
vmui query graph

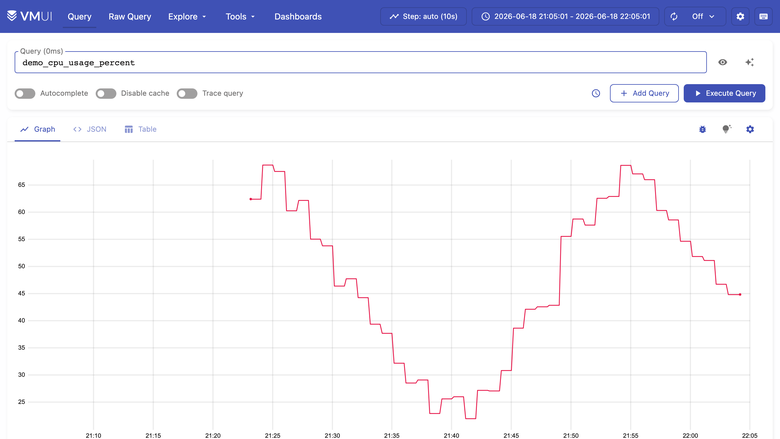

vmui metrics graph

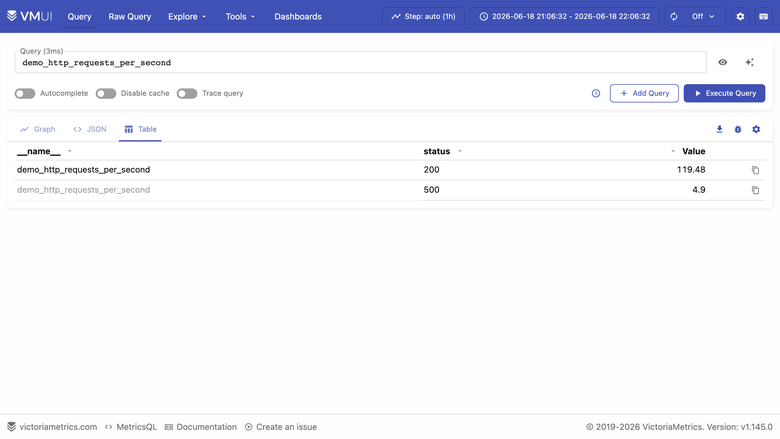

vmui table view
This is a repackaged open source software product wherein additional charges apply for cloudimg support services.
Overview VictoriaMetrics is a fast, cost effective and scalable open source time series database and monitoring solution. It is a drop in replacement for Prometheus remote storage that accepts data over the Prometheus remote write, Influx line protocol, Graphite, OpenTSDB and CSV protocols, and answers queries in MetricsQL, a backwards compatible PromQL superset. This image delivers the VictoriaMetrics single node build fully installed and configured as a system service, so a production grade metrics database is running within minutes of launch.
Application Stack The VictoriaMetrics single node binary installed under /opt/victoriametrics and run by a dedicated unprivileged service account. The time series database stored on a dedicated data disk so the metrics store is independently resizable. A systemd service that starts the database on boot and restarts it on failure. An nginx reverse proxy that publishes the vmui web interface and the read and write APIs on port 80 behind HTTP Basic authentication.
Time Series Database Ingest metrics over the Prometheus remote write protocol, the Influx line protocol, Graphite, OpenTSDB or the JSON and CSV import APIs, then query them with MetricsQL or PromQL through the built in vmui interface, the Prometheus compatible HTTP API or your Grafana dashboards. VictoriaMetrics uses high compression and an efficient storage engine to keep long retention metrics on modest disk.
Secure First Boot On the first boot of your instance a one shot service generates a fresh admin password, unique to that instance, writes it into the nginx credentials file and writes the password to a root only file. The database binary itself binds to loopback only and is never exposed without authentication. No shared or default credentials ship in the image.
Ready To Use The vmui web interface is served on port 80 through nginx. Sign in with the generated administrator credentials to run queries, explore metrics, inspect cardinality and check database health. Point your Prometheus remote write, vmagent or Grafana data source at the instance on port 80 using the same credentials.
cloudimg Support 24/7 technical support by email and chat. Help with deployment, ingestion protocol configuration, retention and downsampling, MetricsQL queries, Grafana integration, TLS and storage tuning.
Use Cases Long term Prometheus remote storage. A single node metrics backend for Grafana dashboards. Application and infrastructure monitoring. IoT and sensor telemetry storage. A cost effective alternative to hosted monitoring backends.
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Highlights
- VictoriaMetrics single node time series database preinstalled as a systemd service with the vmui web interface and the Prometheus compatible read and write APIs published on port 80, no manual setup required
- Ingests Prometheus remote write, Influx, Graphite and OpenTSDB protocols and answers MetricsQL and PromQL queries, with the time series database on a dedicated independently resizable data disk
- Hardened first boot generates a fresh admin password for every instance behind an authenticating nginx proxy and stores it in a file only the root user can read, with 24/7 technical support from cloudimg
Details
Introducing multi-product solutions
You can now purchase comprehensive solutions tailored to use cases and industries.
Features and programs
Financing for AWS Marketplace purchases
Pricing
Free trial
- ...
Dimension | Description | Cost/hour |
|---|---|---|
t3.large Recommended | t3.large | $0.08 |
t2.micro | t2.micro instance type | $0.04 |
t3.micro | t3.micro instance type | $0.04 |
i7ie.metal-48xl | i7ie.metal-48xl instance type | $0.24 |
c7i.8xlarge | c7i.8xlarge instance type | $0.24 |
r8i.metal-96xl | r8i.metal-96xl instance type | $0.24 |
d3.xlarge | d3.xlarge instance type | $0.12 |
c6a.32xlarge | c6a.32xlarge instance type | $0.24 |
g7e.8xlarge | g7e.8xlarge instance type | $0.24 |
r8a.2xlarge | r8a.2xlarge instance type | $0.24 |
Vendor refund policy
Refunds available on request.
How can we make this page better?
Legal
Vendor terms and conditions
Content disclaimer
Delivery details
64-bit (x86) Amazon Machine Image (AMI)
Amazon Machine Image (AMI)
An AMI is a virtual image that provides the information required to launch an instance. Amazon EC2 (Elastic Compute Cloud) instances are virtual servers on which you can run your applications and workloads, offering varying combinations of CPU, memory, storage, and networking resources. You can launch as many instances from as many different AMIs as you need.
Version release notes
Initial release of VictoriaMetrics single node 1.145.0 time series database.
Additional details
Usage instructions
Connect via SSH on port 22 as the default login user for your operating system variant (the user guide lists it per variant). The vmui web interface is served on port 80: browse to http://<instance-public-ip>/ and sign in with user admin and the generated password. Retrieve the credentials with: sudo cat /root/victoriametrics-credentials.txt. The Prometheus compatible read API (/api/v1/query) and write API (/api/v1/write, /influx/write, /api/v1/import) are served on the same port 80 behind the same HTTP Basic credentials; point your Prometheus remote write, vmagent or Grafana data source at http://<instance-public-ip>/ with user admin. The time series database lives on a dedicated data disk mounted at /var/lib/victoria-metrics.
Resources
Vendor resources
Support
Vendor support
cloudimg provides 24/7 technical support for this product by email and live chat. Our engineers help with deployment, configuration, updates, performance tuning and troubleshooting; critical issues receive a one hour average response. Contact support@cloudimg.co.uk .
AWS infrastructure support
AWS Support is a one-on-one, fast-response support channel that is staffed 24x7x365 with experienced and technical support engineers. The service helps customers of all sizes and technical abilities to successfully utilize the products and features provided by Amazon Web Services.
