NATS is a CNCF-hosted open source messaging system written in Go, trusted by organizations worldwide for cloud native and edge workloads. This AMI delivers NATS Server fully installed and configured on AWS so you have a production-ready messaging platform running within minutes of launch - no package management, repository setup, or manual compilation required.

• NATS Server binary from the official upstream GitHub release, installed under /usr/local/bin

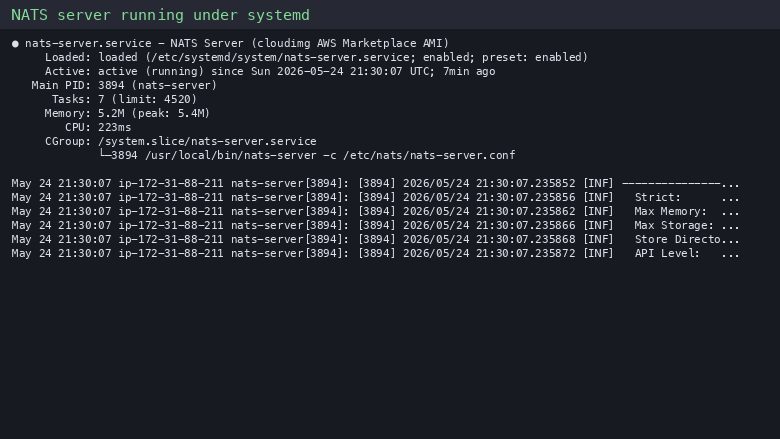

• A systemd unit (nats-server.service) running the server as a dedicated nats system user
• JetStream persistence layer enabled by default with its store on a dedicated data volume
• Baseline server configuration with a single authenticated user, client port 4222, and HTTP monitoring on port 8222

Deploying NATS from scratch requires downloading binaries, creating system users, writing systemd units, configuring JetStream storage, and generating credentials. This image eliminates that operational overhead entirely. Compared to running a heavier streaming platform like Kafka, NATS offers a dramatically smaller resource footprint - a single binary with no JVM, no ZooKeeper, and no complex broker coordination - while still providing durable streaming through JetStream.

• Per-instance credentials on first boot: A one-shot service generates a32-character random password, writes it to /root/nats-credentials.txt with file mode 0600, and configures it in /etc/nats/auth.conf. No credentials are baked into the image.
• Ports bound to localhost by default: Client port 4222 and monitoring port 8222 are not exposed until you explicitly configure your firewall and edit /etc/nats/nats-server.conf.
• TLS support: NATS Server supports TLS for client connections and cluster routes. You can enable encryption in transit by adding your certificates to the server configuration.
• Dedicated system user: The NATS process runs as an unprivileged nats user, limiting the blast radius of any potential compromise.

The JetStream store directory lives on a separate, independently resizable EBS volume mounted at /var/lib/nats. This architecture keeps messaging persistence off the OS disk so you can grow storage to accommodate larger streams and key-value buckets without disturbing the instance. It also simplifies backup strategies - snapshot the data volume independently of the root volume.

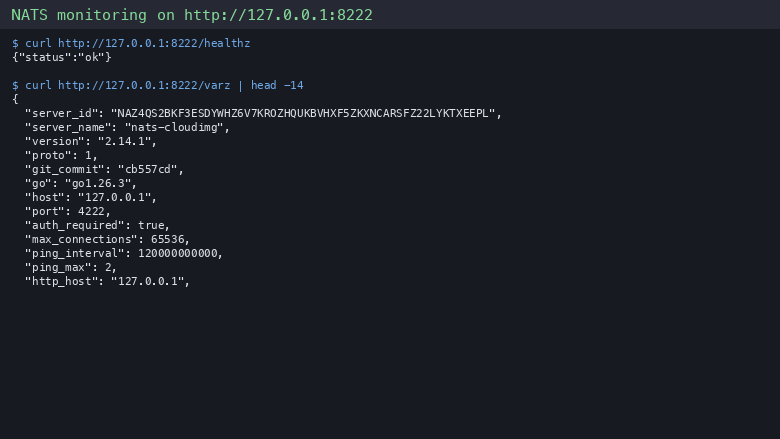

NATS runs headless with no built-in web console. Status and metrics are exposed via HTTP endpoints on port 8222:

• /varz - server statistics (connections, messages in/out, memory)
• /connz - active client connections
• /healthz - liveness check for load balancers
• /jsz - JetStream state (streams, consumers, storage usage)

These endpoints integrate with Prometheus, Grafana, and AWS CloudWatch via NATS Surveyor or custom scrapers.

• Microservices messaging: Route requests between hundreds of services with sub-millisecond publish latency. Ideal for fintech platforms processing order events or logistics systems coordinating fleet telemetry.
• Event streaming with JetStream: Replace heavyweight Kafka clusters for workloads under millions of messages per day. JetStream provides at-least-once delivery, replay, and consumer groups in a single binary.
• IoT and edge telemetry: Ingest data from thousands of devices through lightweight NATS clients (available in 40+ languages) into time-series databases or analytics pipelines.
• Request-reply RPC: Build synchronous service-to-service communication patterns without dedicated API gateways.
• Key-value and object store: Use JetStream KV and Object Store for distributed configuration or binary asset storage.

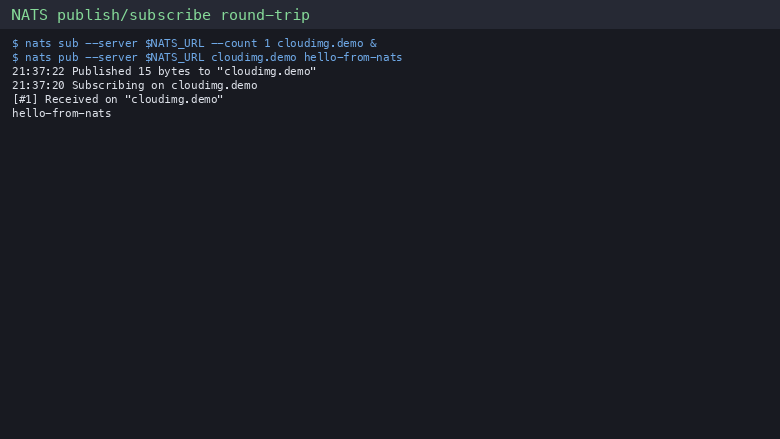

Launch the AMI, retrieve your unique credentials from /root/nats-credentials.txt, open port 4222 in your security group, and publish your first message. For a guided setup or cluster architecture review, contact cloudimg support.

NATS is a CNCF incubating project with an Apache 2.0 license, originally created by Derek Collison and now maintained by Synadia. It supports 40+ client languages and is designed for performance, scalability, and simplicity.
