Important: This Guidance requires the use of AWS CodeCommit, which is no longer available to new customers. Existing customers of AWS CodeCommit can continue using and deploying this Guidance as normal.
This Guidance helps to provide transparency and traceability of the supply chain network for a product. The architecture allows vendors and stakeholders to easily upload the supply chain certificates as well as ingest relevant data from systems such as enterprise resource planning (ERP), product lifecycle management (PLM), SharePoint. It then extracts, processes, cross-checks, and validates these documents in an automated, serverless AWS workflow. This Guidance includes both an overview architecture and a detailed architecture with sample code.
Architecture Diagram
![](https://d1.awsstatic.com/apac/events/2021/aws-innovate-aiml/2022/eng/innovate-aiml-22-UI_Gradient-Divider.082bb46e8d9654e48f62bf018e131dd8ec563c4e.jpg)
-
Overview
-
Detailed Architecture
-
Overview
-

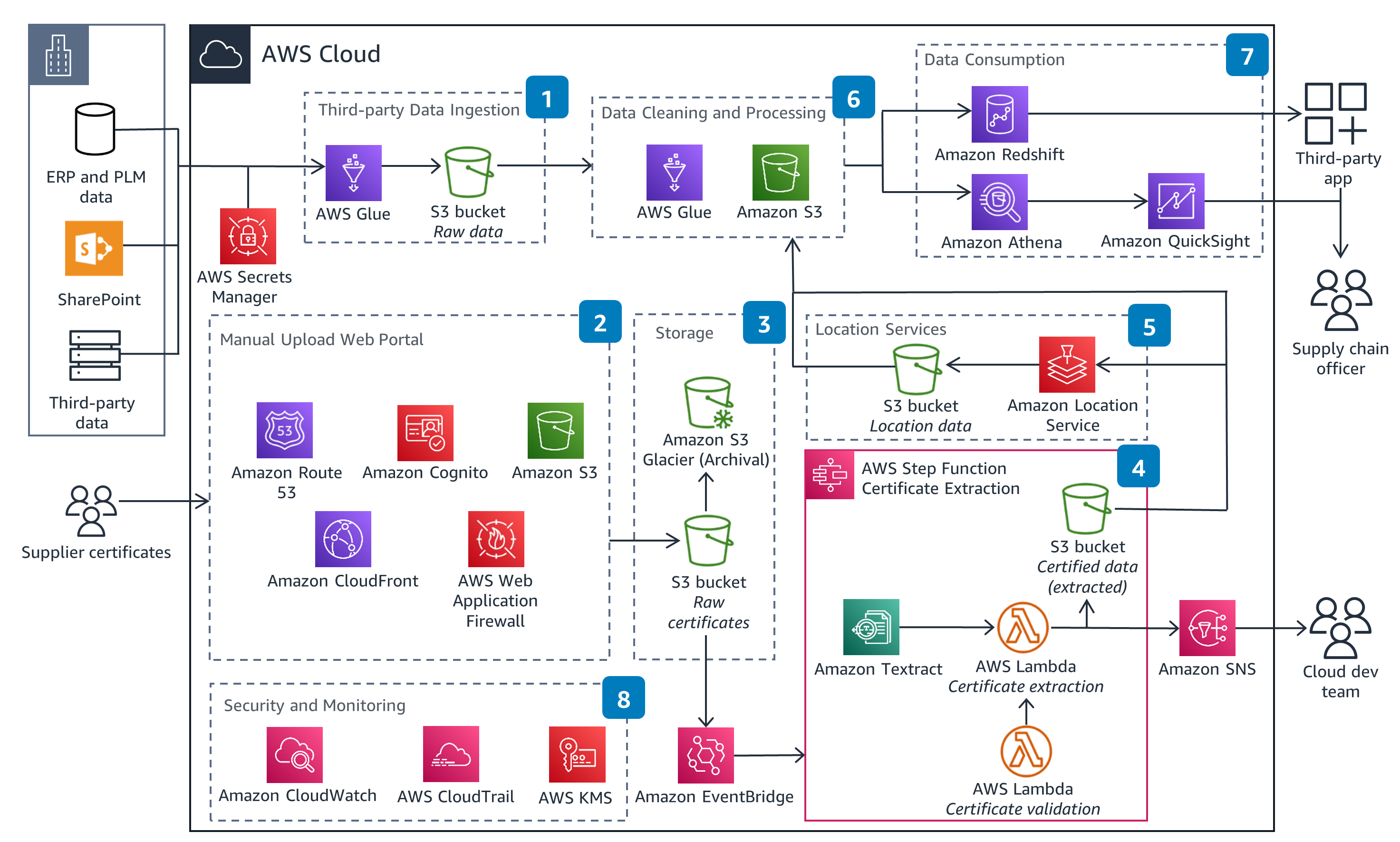

Please note: This is an overview architecture showing an end-to-end process flow to provide transparency and traceability of the supply chain network for a product.
Step 1
External data sources are ingested for extraction validation. -
Detailed Architecture
-
Please note: This is a detailed architecture showing an end-to-end process flow to provide transparency and traceability of the supply chain network for a product.
Well-Architected Pillars
![](https://d1.awsstatic.com/apac/events/2021/aws-innovate-aiml/2022/eng/innovate-aiml-22-UI_Gradient-Divider.082bb46e8d9654e48f62bf018e131dd8ec563c4e.jpg)
The AWS Well-Architected Framework helps you understand the pros and cons of the decisions you make when building systems in the cloud. The six pillars of the Framework allow you to learn architectural best practices for designing and operating reliable, secure, efficient, cost-effective, and sustainable systems. Using the AWS Well-Architected Tool, available at no charge in the AWS Management Console, you can review your workloads against these best practices by answering a set of questions for each pillar.
The architecture diagram above is an example of a Solution created with Well-Architected best practices in mind. To be fully Well-Architected, you should follow as many Well-Architected best practices as possible.
-
Operational Excellence
This Guidance is deployed using AWS Cloud Development Kit (AWS CDK). Changes to the main branch of the AWS CodeCommit repository are automatically propagated to the Guidance infrastructure through AWS CodePipeline.
-
Security
This Guidance uses AWS WAF, Amazon Cognito, and AWS Certificate Manager (ACM) to secure access to its hosted upload portal, restricting access to services and protecting them from attacks. All data is encrypted at rest using AWS KMS keys.
-
Reliability
The load balancer will ensure the health of the hosted upload portal alongside built-in autoscaling for services. It is critical that the extraction be done within a Step Function that includes a retry mechanism. Otherwise, you may encounter a bottleneck in Amazon Textract due to account-level concurrency limits that can only be increased by contacting AWS support. It is possible for the extraction Lambda function to fail if too many certificates are uploaded at once. As such, the Step Function should include a fail-retry check to address failures that occur as result of Textract throttling.
-
Performance Efficiency
We selected the services in this Guidance to create a serverless architecture. The Guidance uses automation to minimize infrastructure management and user intervention. The architecture is also decoupled so that different functions can run independently from one another.
-
Cost Optimization
All data is stored in Amazon S3, with lifecycle policies that automatically archive old certificates. This allows for cost optimization while still adhering to data retention regulations.
-
Sustainability
All components of this Guidance are serverless and scale automatically. This approach ensures minimal energy consumption while maintaining high availability.
Implementation Resources
![](https://d1.awsstatic.com/apac/events/2021/aws-innovate-aiml/2022/eng/innovate-aiml-22-UI_Gradient-Divider.082bb46e8d9654e48f62bf018e131dd8ec563c4e.jpg)
The sample code is a starting point. It is industry validated, prescriptive but not definitive, and a peek under the hood to help you begin.
